Exhaust System - Center Pipe Production Change

NO.: TSB-92-15-003
DATE: November, 1992
MODEL: 1992 Eclipse

SUBJECT:
EXHAUST SYSTEM PRODUCTION CHANGE

PURPOSE

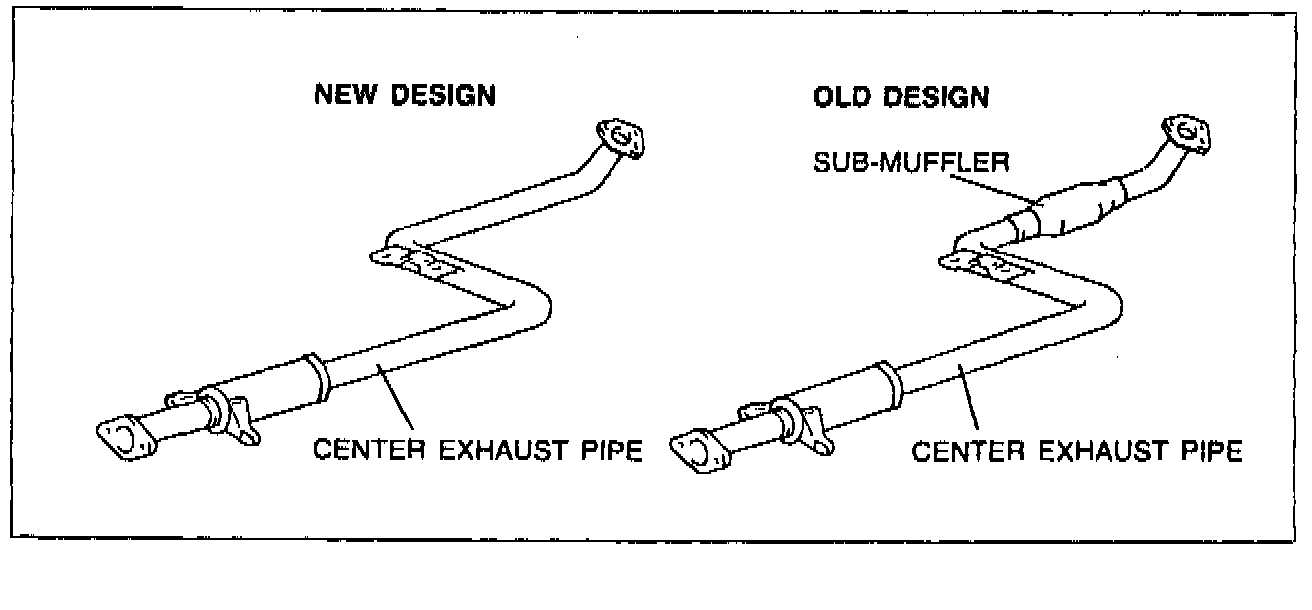

This bulletin is issued to inform technicians that the center exhaust pipe has been changed on 1992 Eclipse 1.8L vehicles. Vehicles manufactured from January 28, 1992 do not have a sub-muffler built into the center exhaust pipe.





The new design center exhaust pipe is interchangeable with the old design.
