A/T - No Movement/No or Low Torque Converter Charge
TRANSMISSION: KM 171,172 & 175BULLETIN: # 061
SUBJECT: Low TCC Charge
APPLICATION: Mitsubishi
DATE: July 1991
NO OR LOW TORQUE CONVERTER CHARGE
A KM transaxle with no converter charge can cause a no movement condition. Low converter charge can also cause the torque converter clutch to be applied all the time.

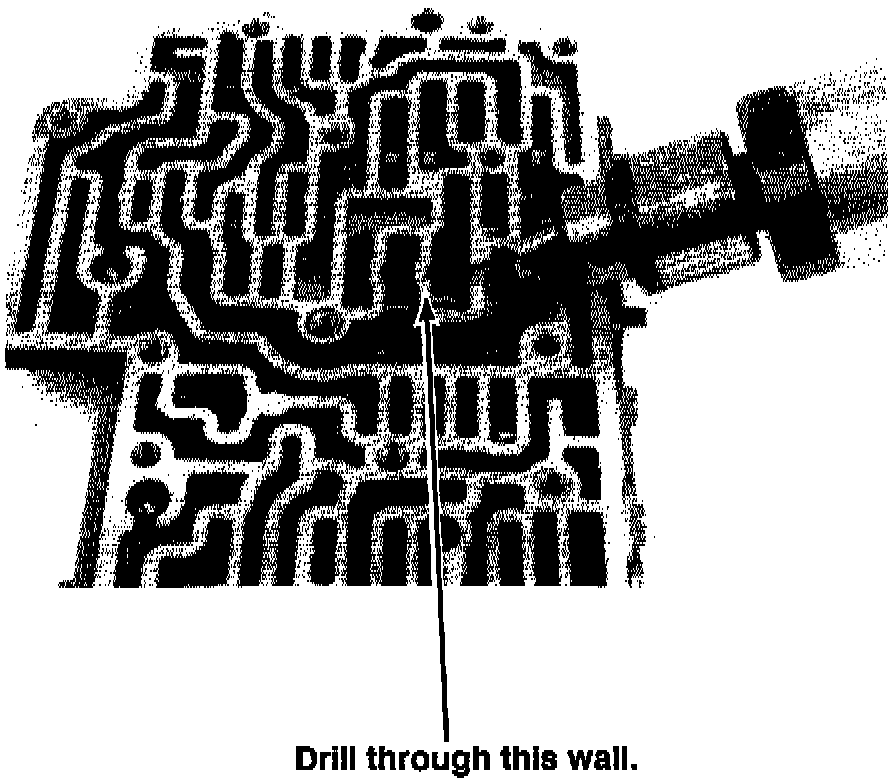

If line pressure is normal, drill a .040" - .062" hole in the valve body wall. This will increase torque converter charge.
FOR ADDITIONAL INFORMATION:
1991 Seminar Handout
