C Connectors - Instrument Panel Harness
C Connectors - Instrument Panel Harness

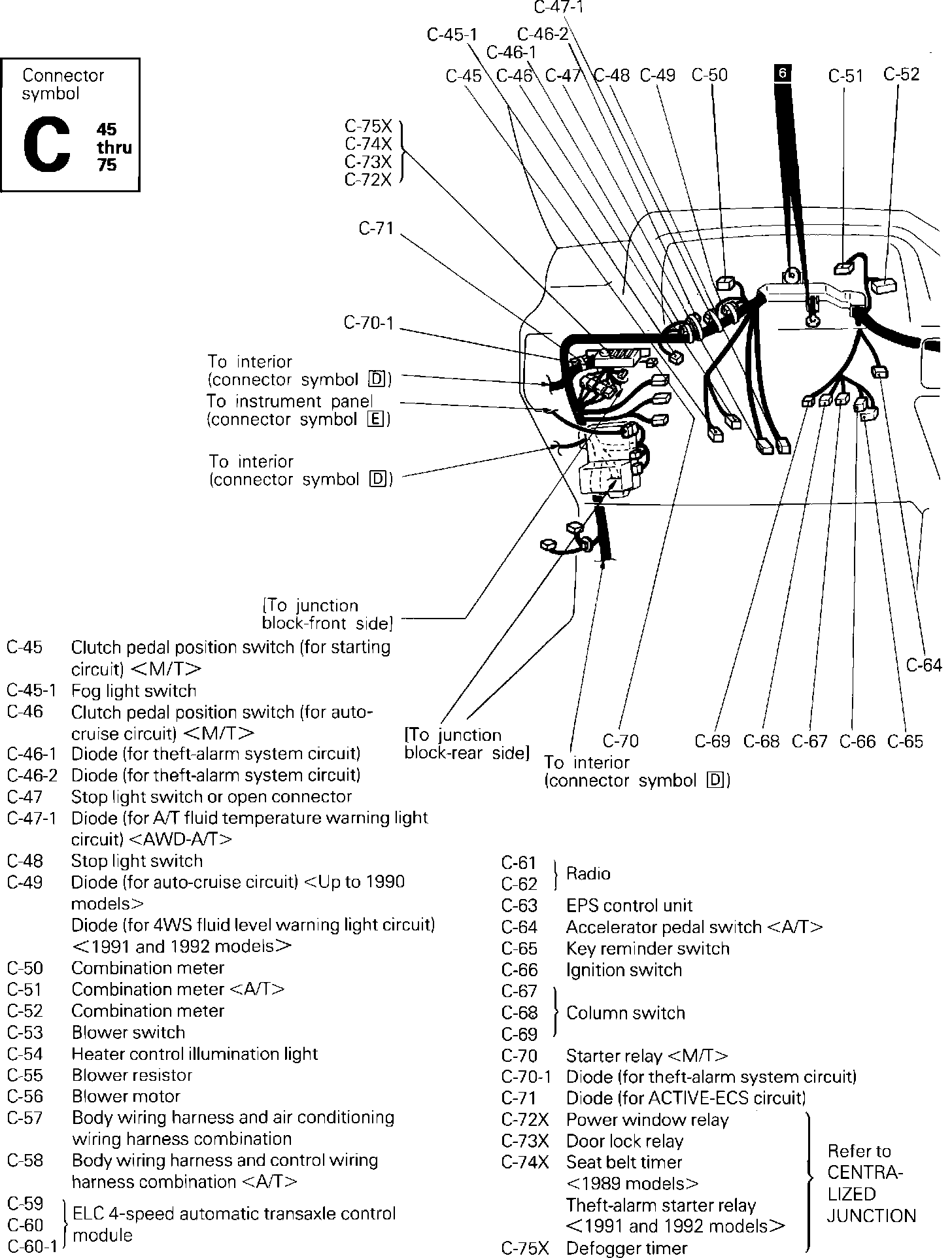

Connector Locations: Dash Panel:

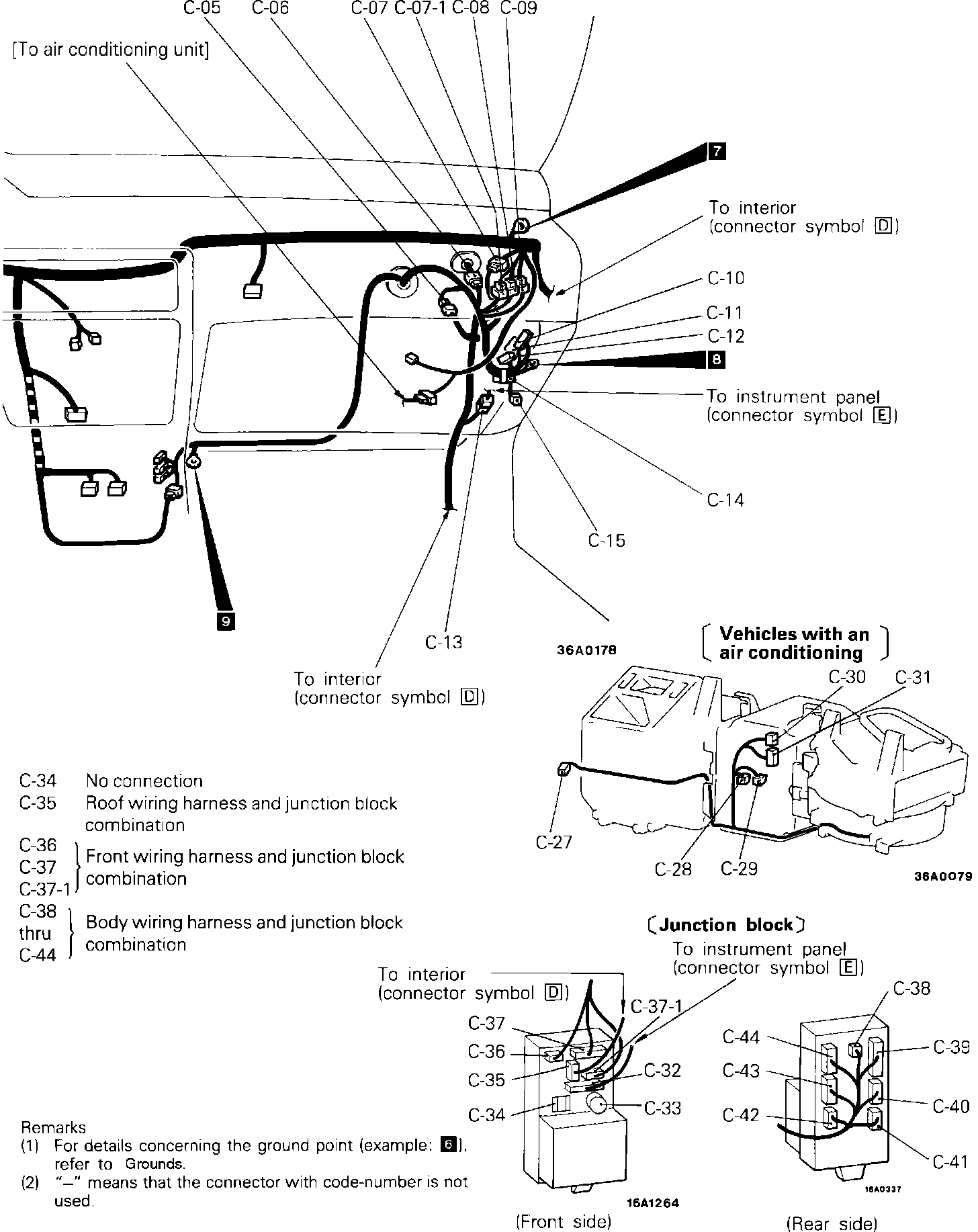

Connector Locations: Dash Panel:
Connector Locations: Dash Panel:
Connector Locations: Dash Panel:
