E Connectors - Instrument Panel Harness
E Connectors - Instrument Panel Harness

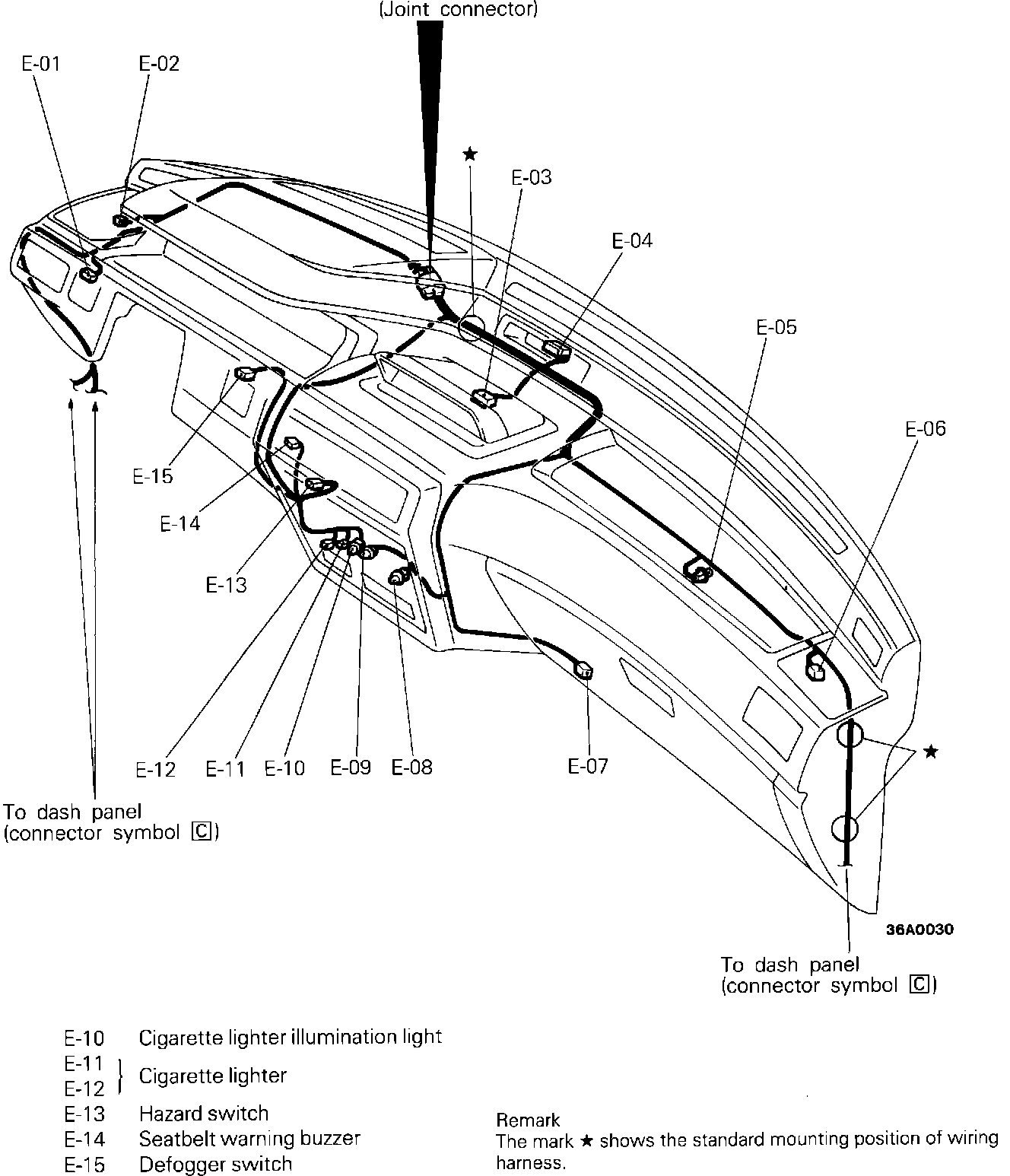

Connector Locations: Instrument Panel:
