F Connectors - Luggage Compartment Harness
F Connectors - Luggage Compartment Harness

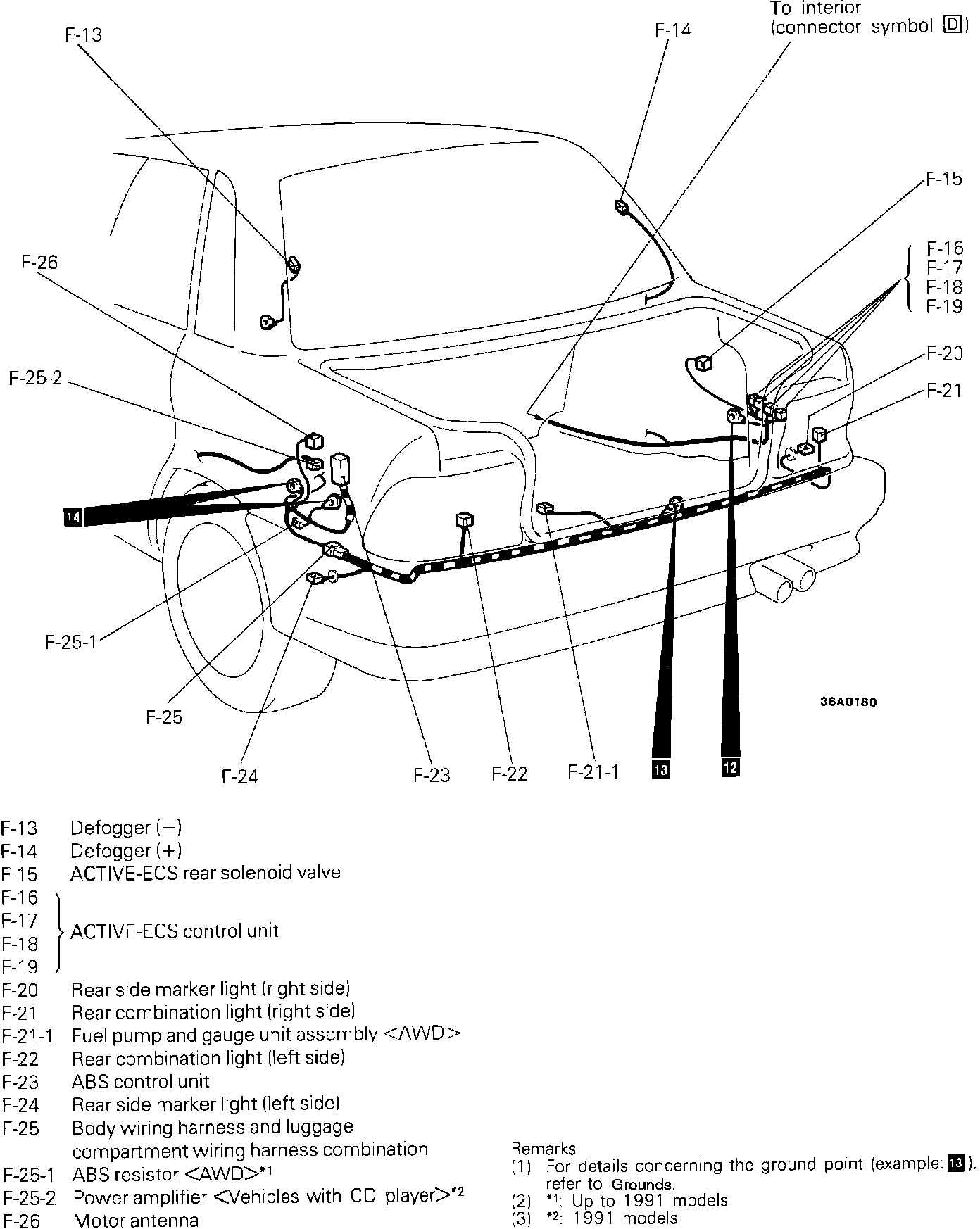

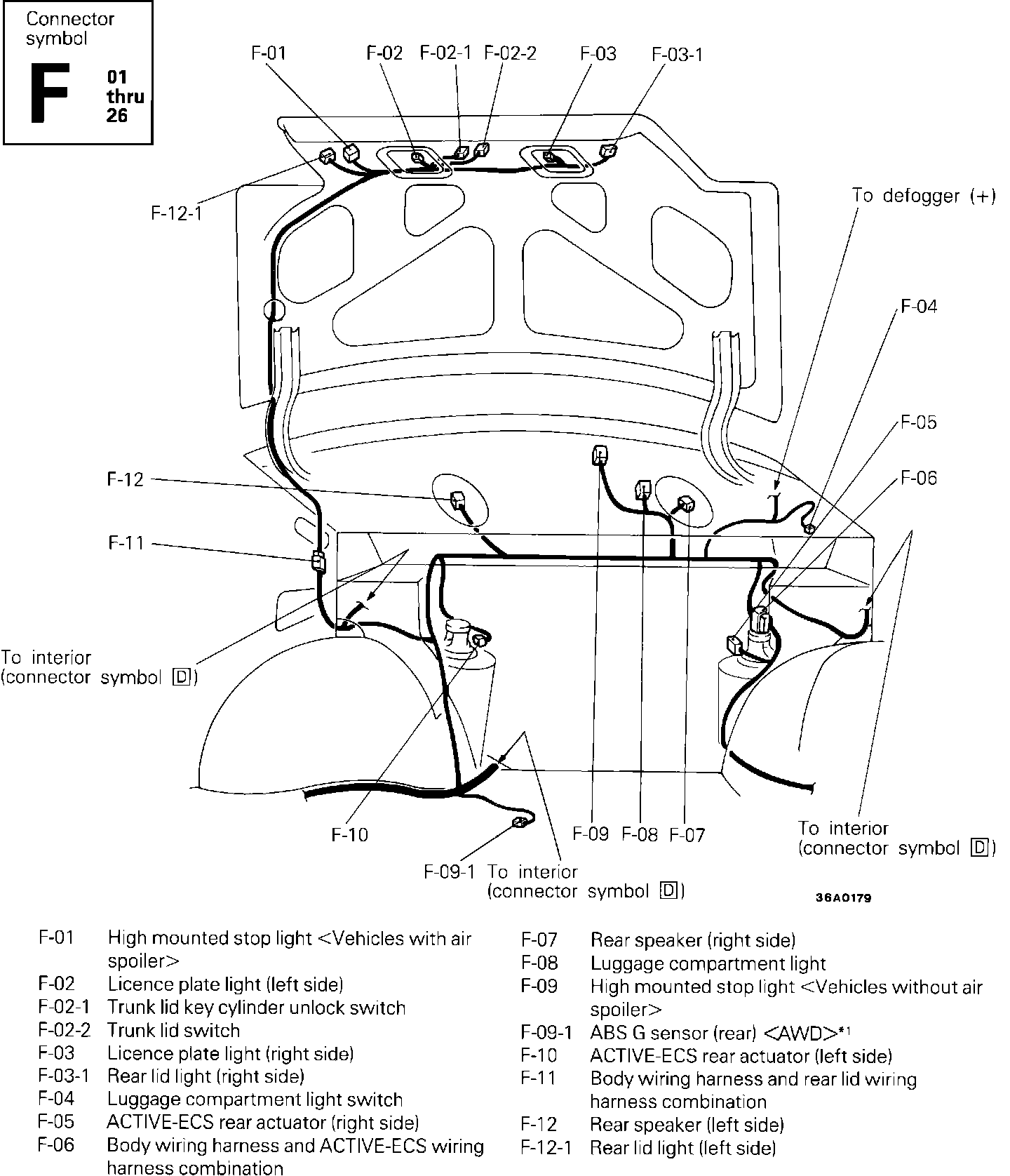

Connector Locations: Luggage Compartment:
Connector Locations: Luggage Compartment:
