G Connectors - Under Rear Floor Harness
G Connectors - Under Rear Floor Harness

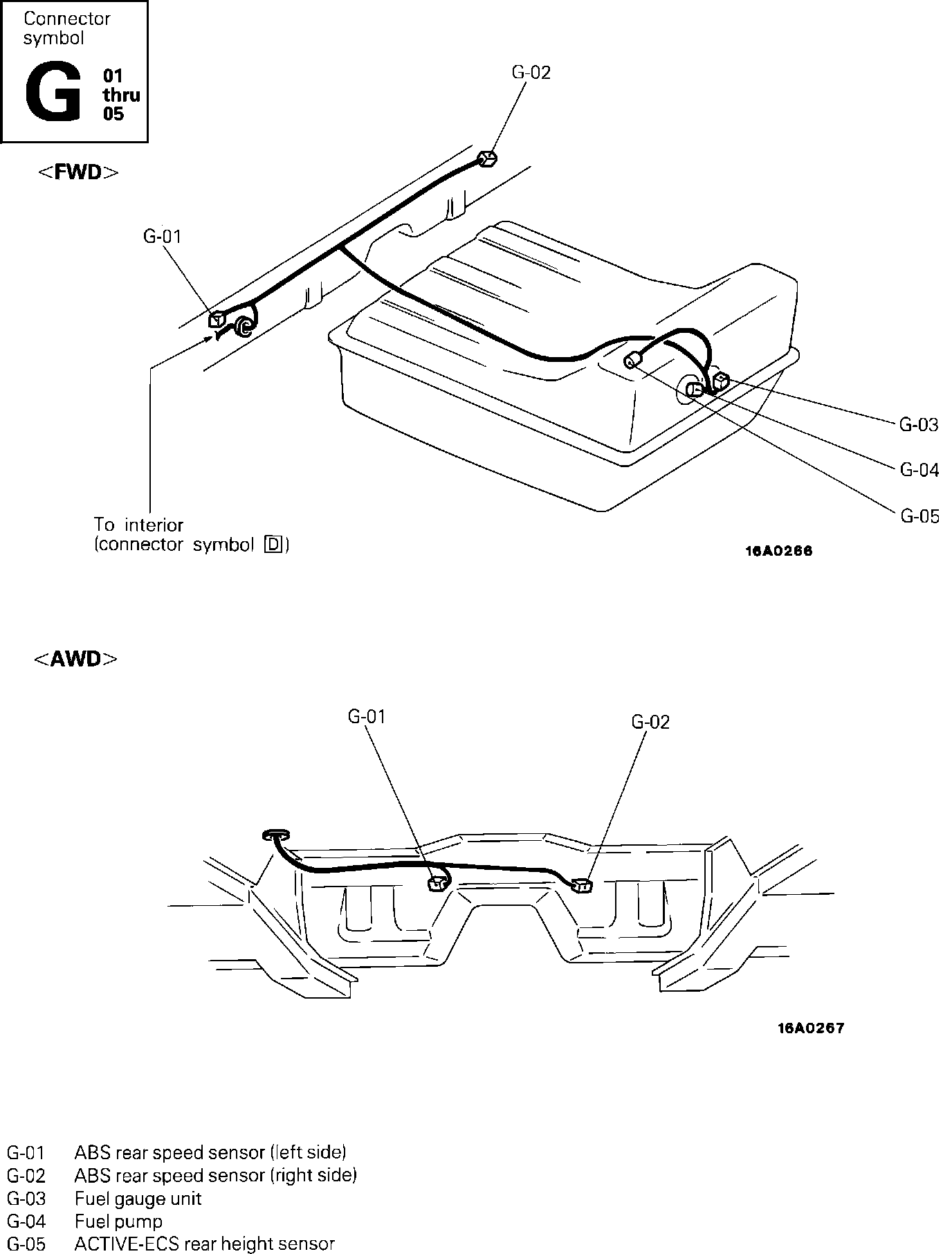

Connector Locations: Rear Under Floor:
