Antilock Brakes / Traction Control Systems

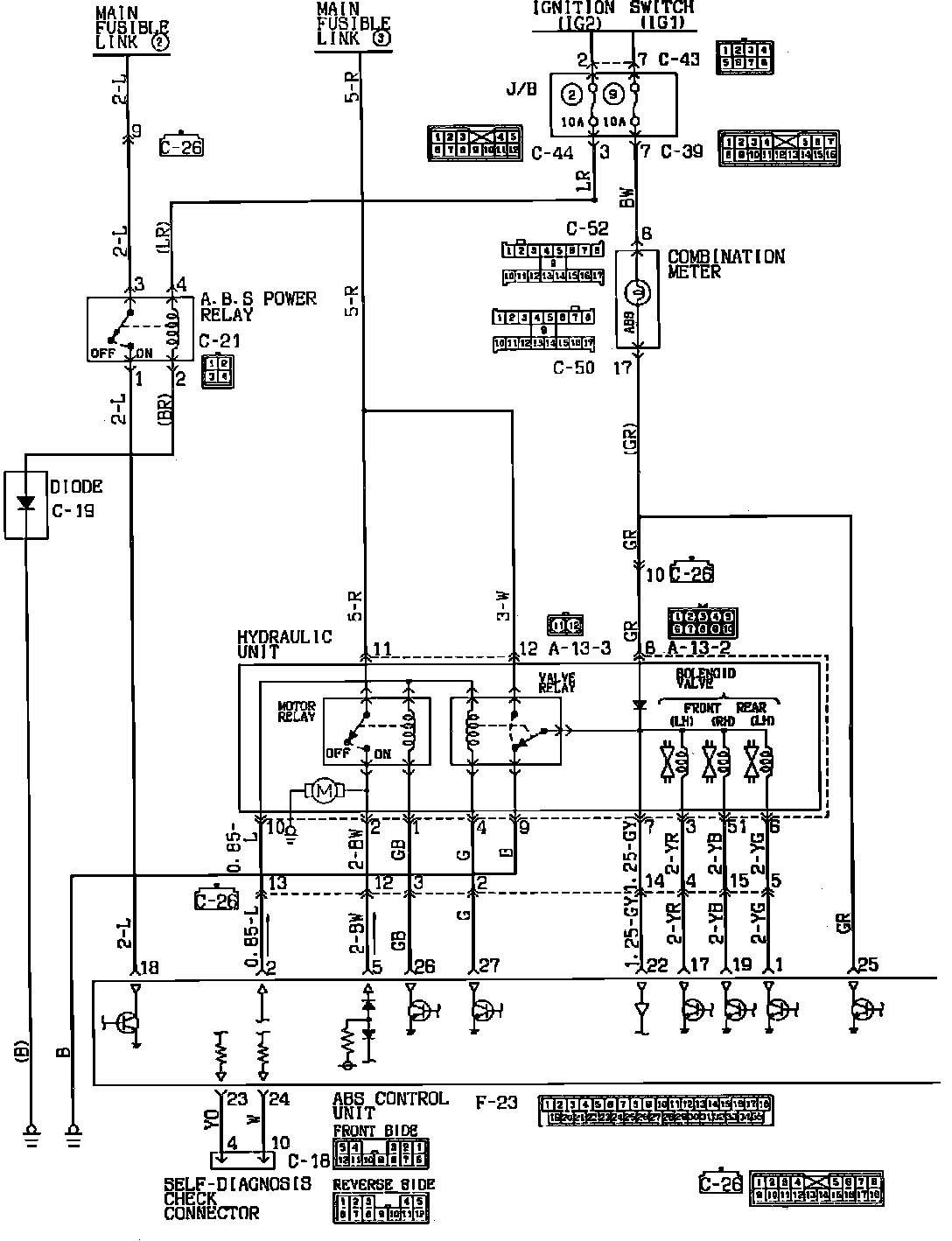

Fig. 17 Anti-lock Brake System Wiring Diagram. (Part 1 Of 2) 1992 Galant AWD:

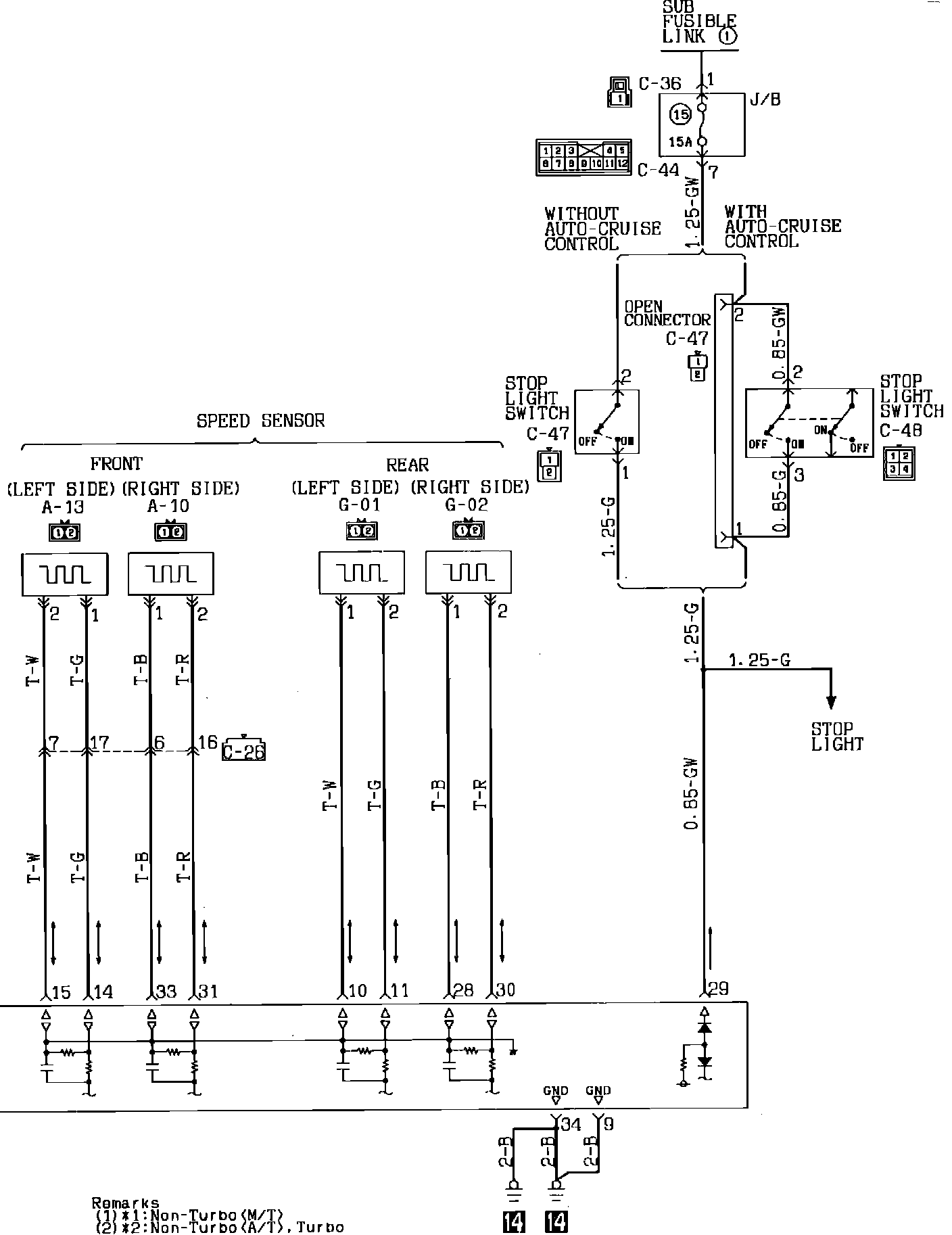

Fig. 17 Anti-lock Brake System Wiring Diagram. (Part 2 Of 2) 1992 Galant AWD:

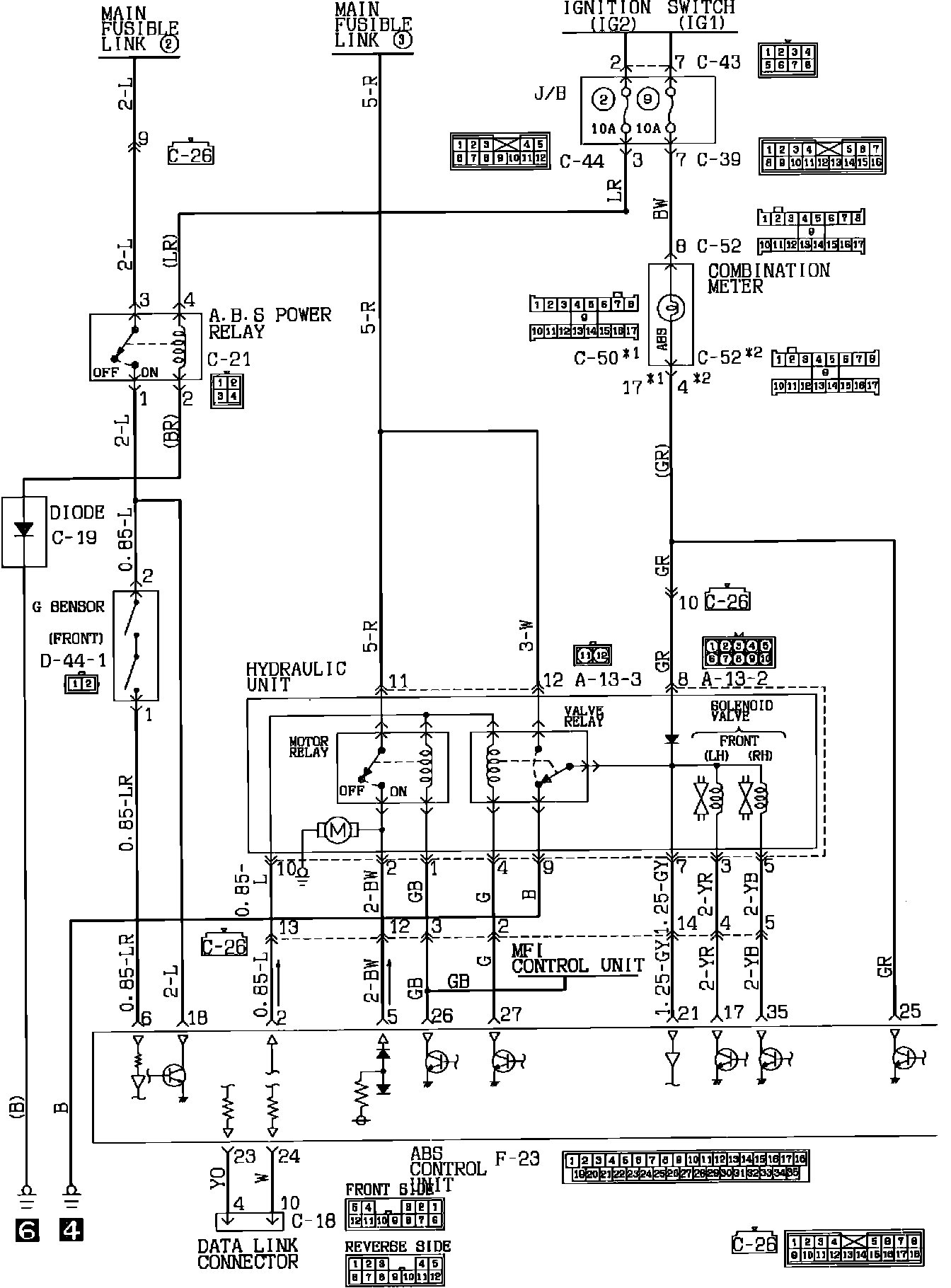

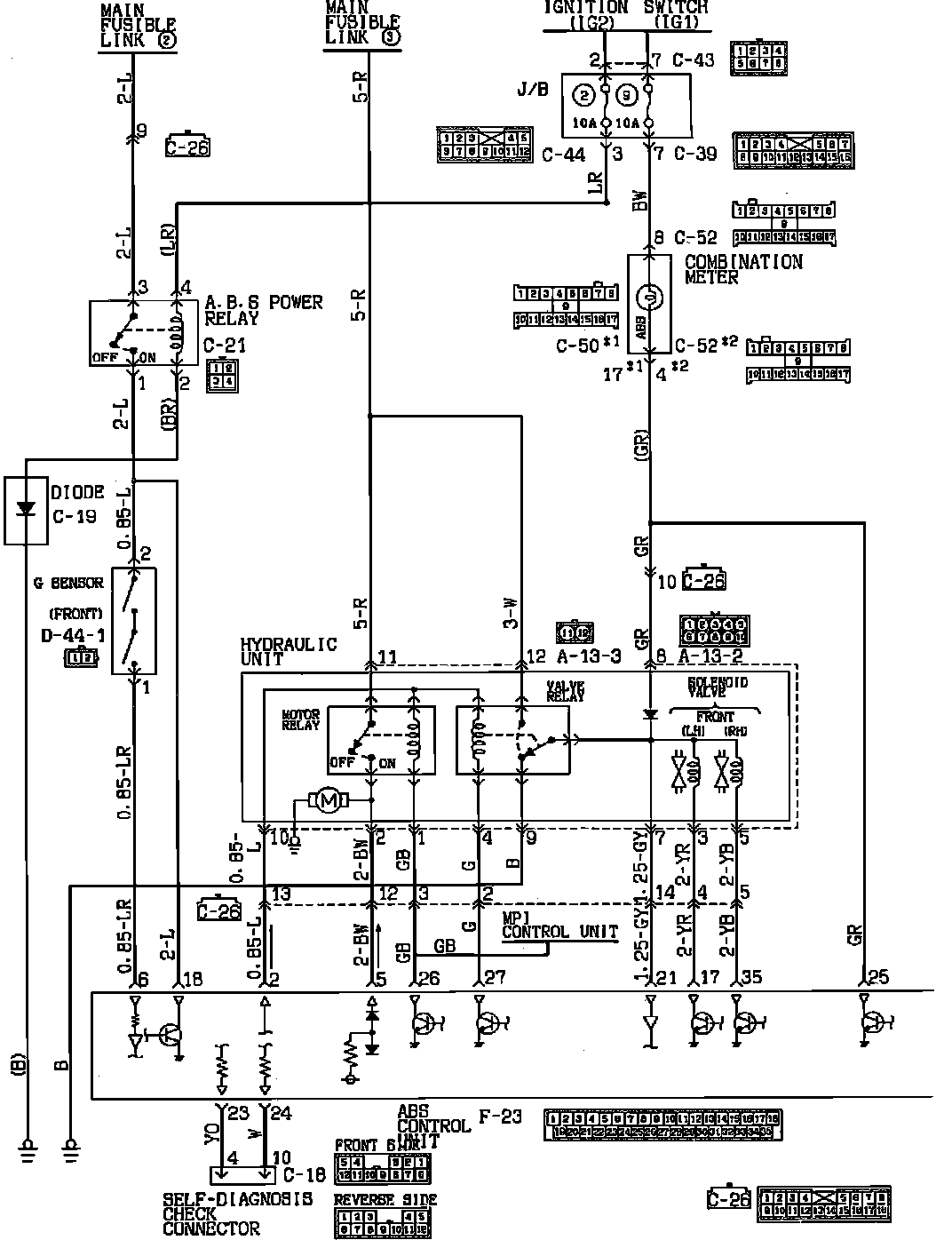

Fig. 21 Anti-lock Brake System Wiring Diagram. (Part 1 Of 2) 1992 Galant FWD:

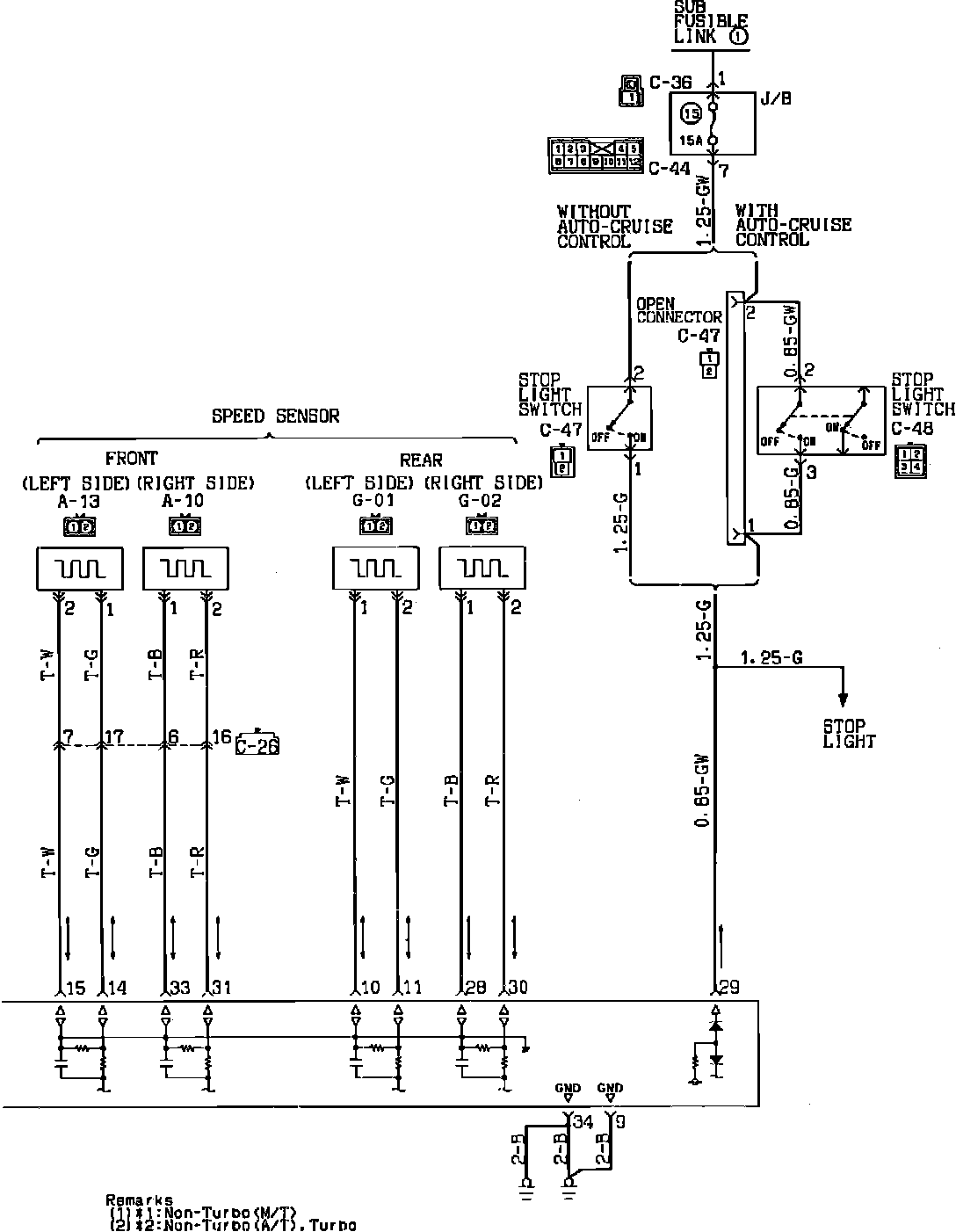

Fig. 21 Anti-lock Brake System Wiring Diagram. (Part 2 Of 2) 1992 Galant FWD:

Anti-Lock Brakes (ABS, AWD):

Anti-Lock Brakes (ABS, AWD):
