System Diagram
System Diagram
Fuse Block Details: Junction Block (A/T):

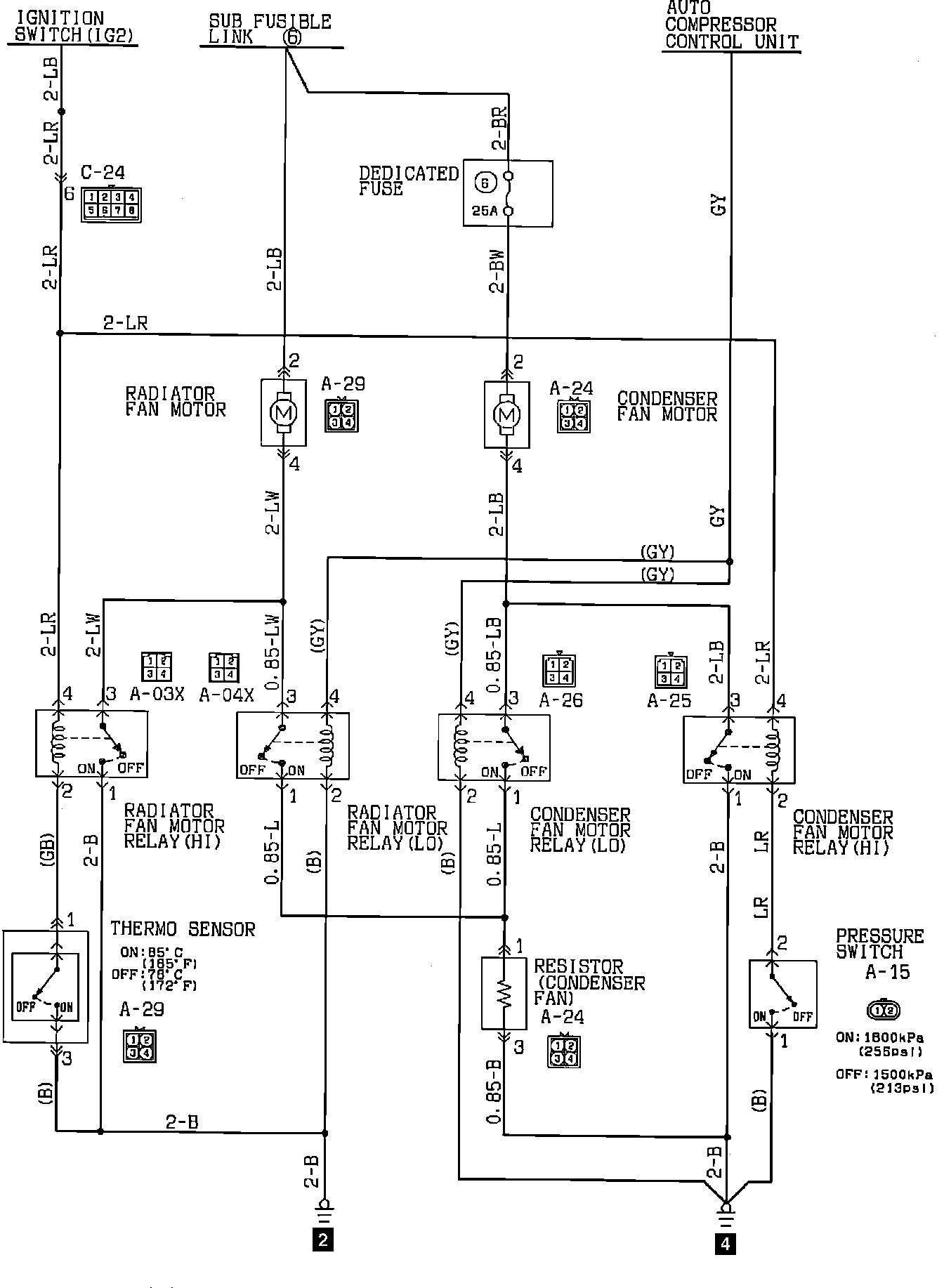

Cooling Circuit (FWD, AWD-M/T):
Cooling System: Manual Transmission:
