Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Dome Lamp >> With Etacs

With Etacs

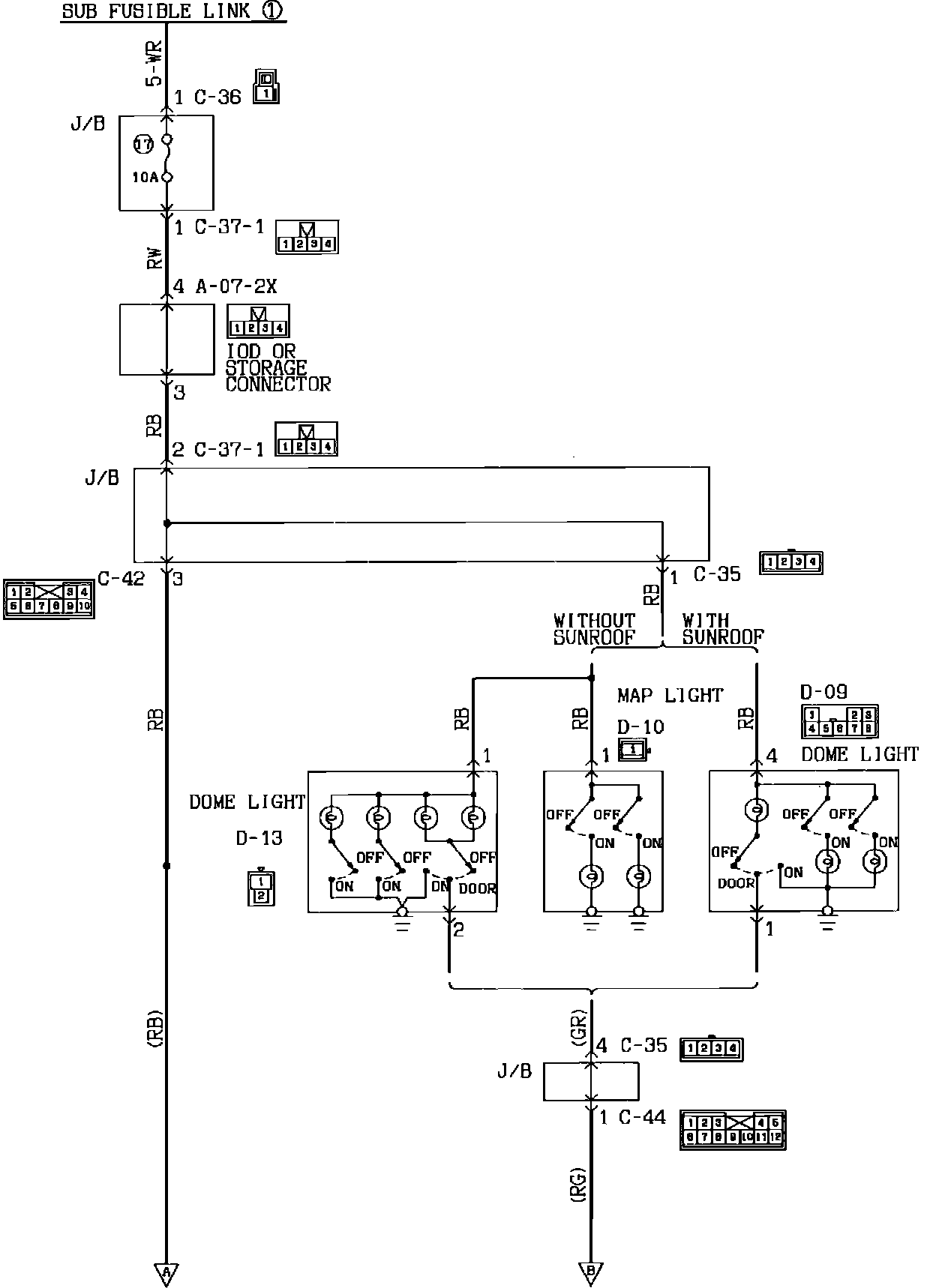

Dome (With ETACS):

Dome (With ETACS):
