Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Door Locks
>>
With ETACS
With ETACS

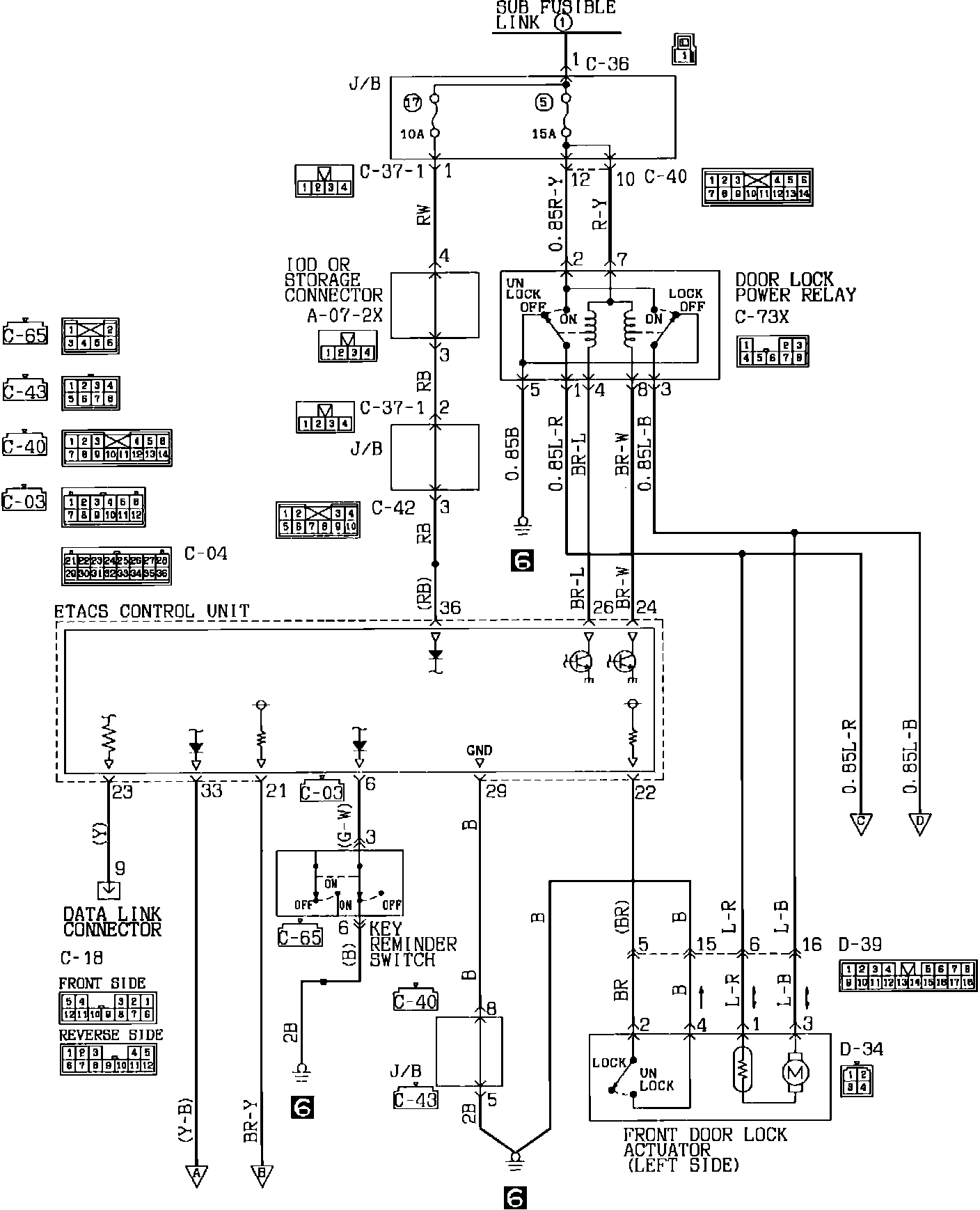

Power Door Locks (Central Locking, With ETACS):
Power Door Locks (Central Locking, With ETACS):
