Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1992
>>
Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Heating and Air Conditioning
Heating and Air Conditioning

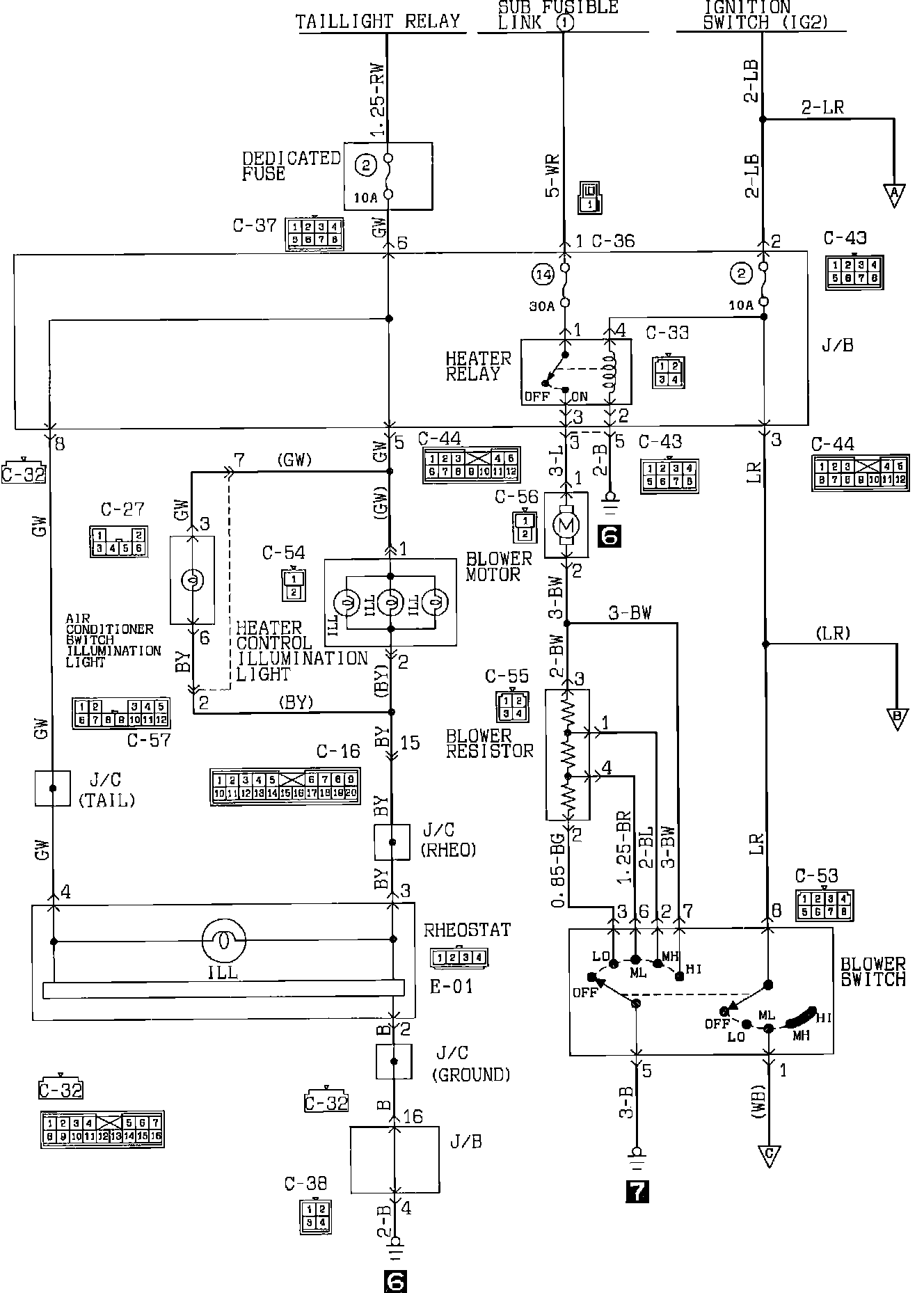

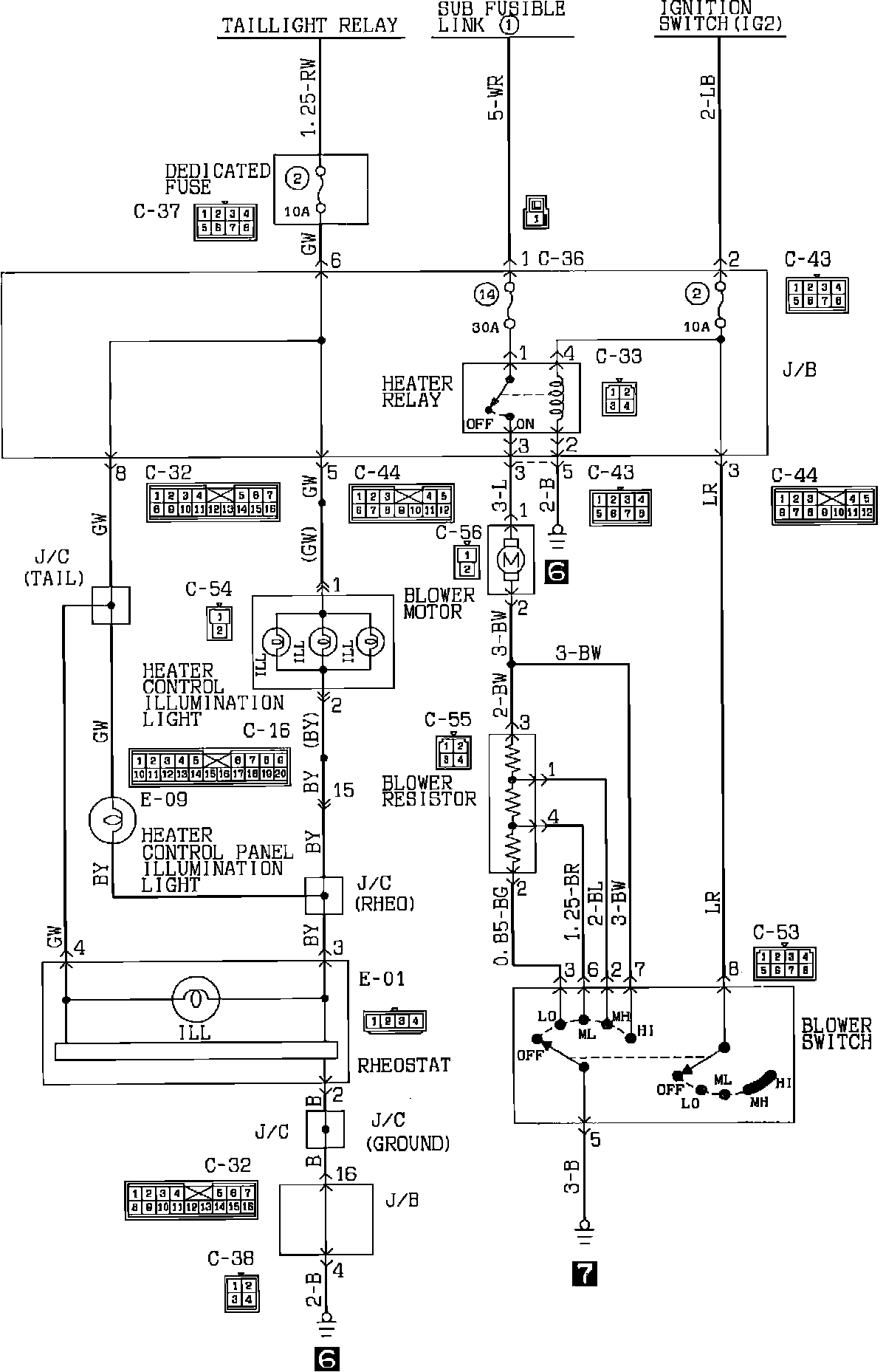

Heater:

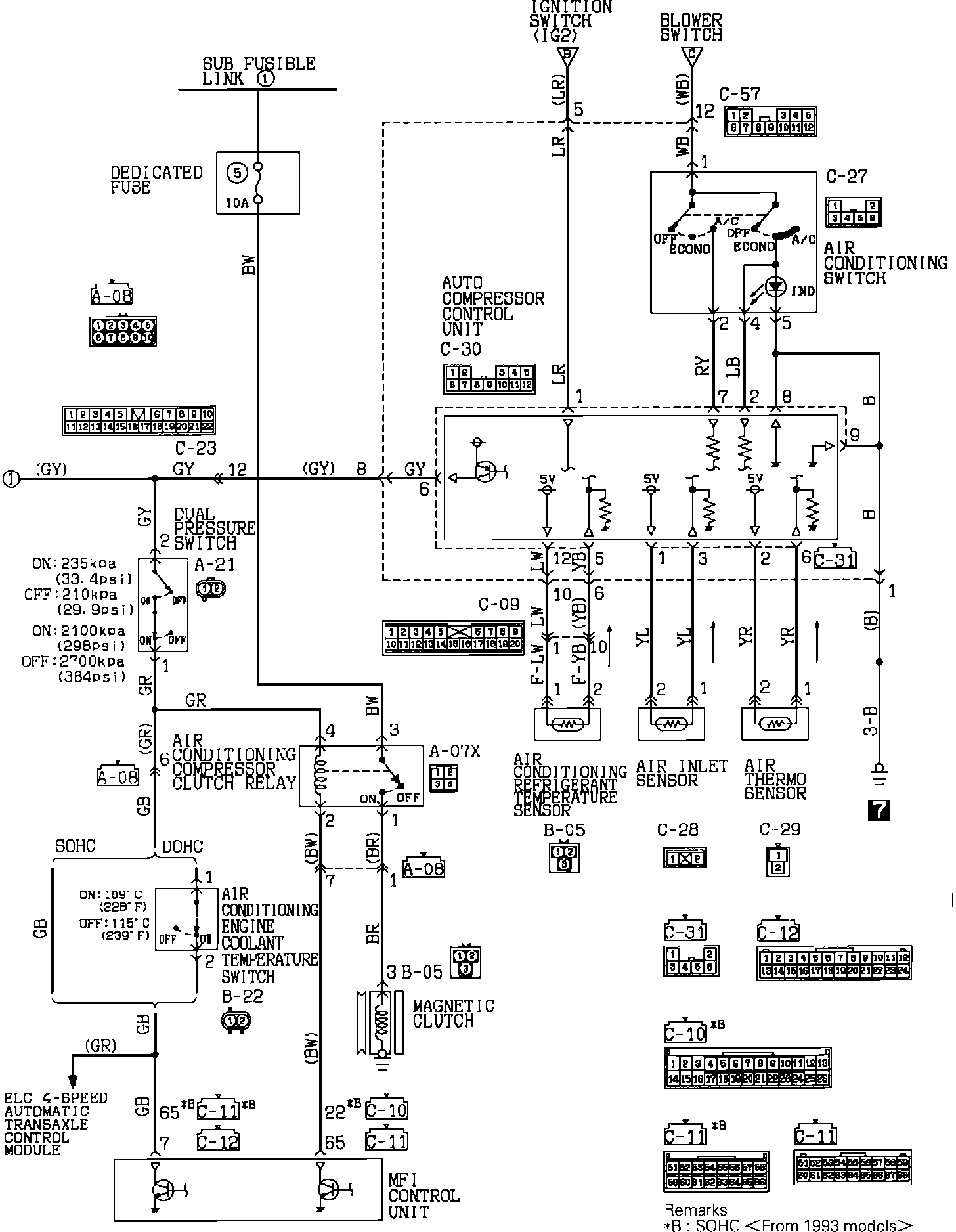

Air Conditioner: Non-Turbo (AWD-A/T), Turbo:

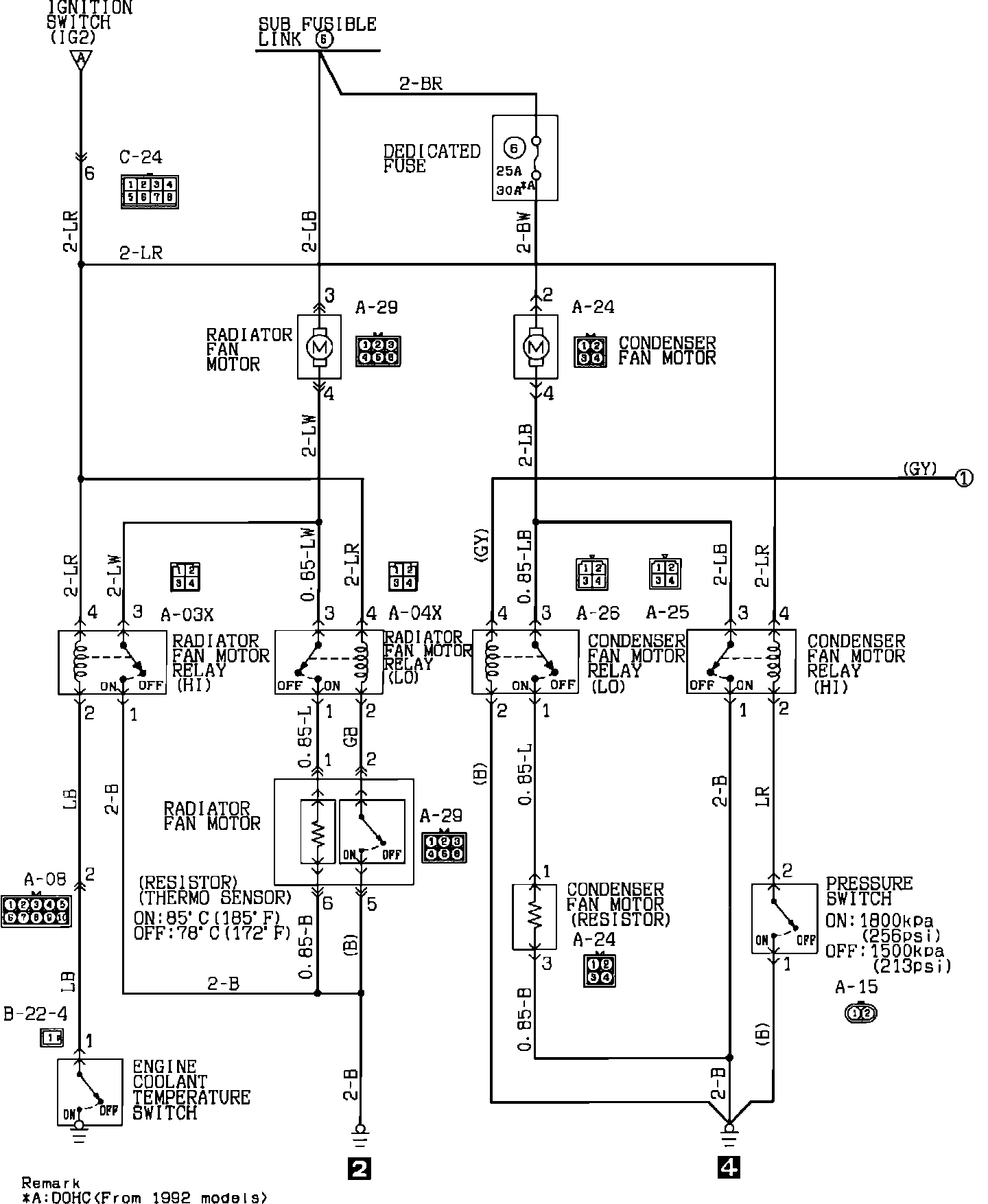

Air Conditioner: Non-Turbo (AWD-A/T), Turbo:
Air Conditioner: Non-Turbo (AWD-A/T), Turbo:
