Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram

System Diagram

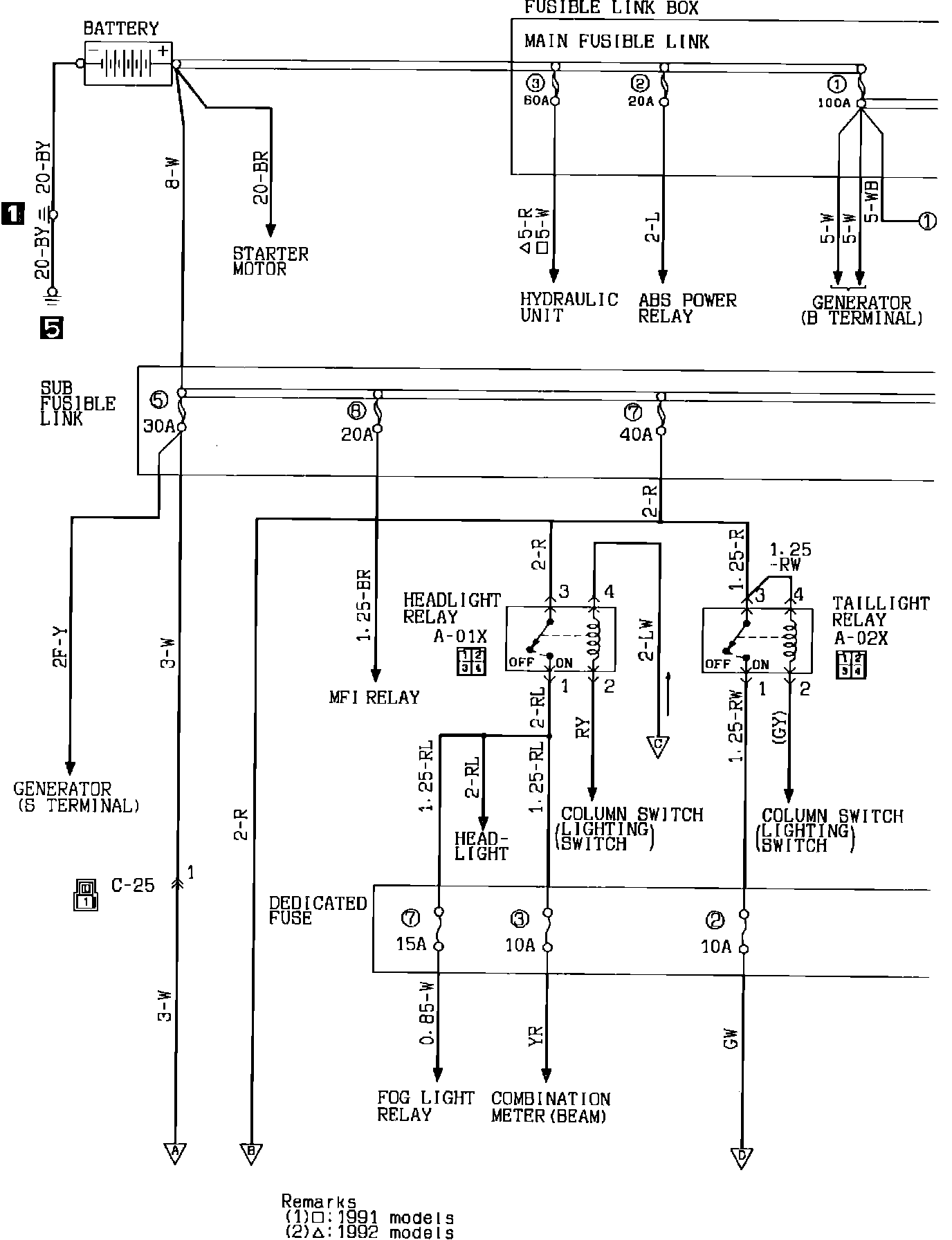

Power Distribution:

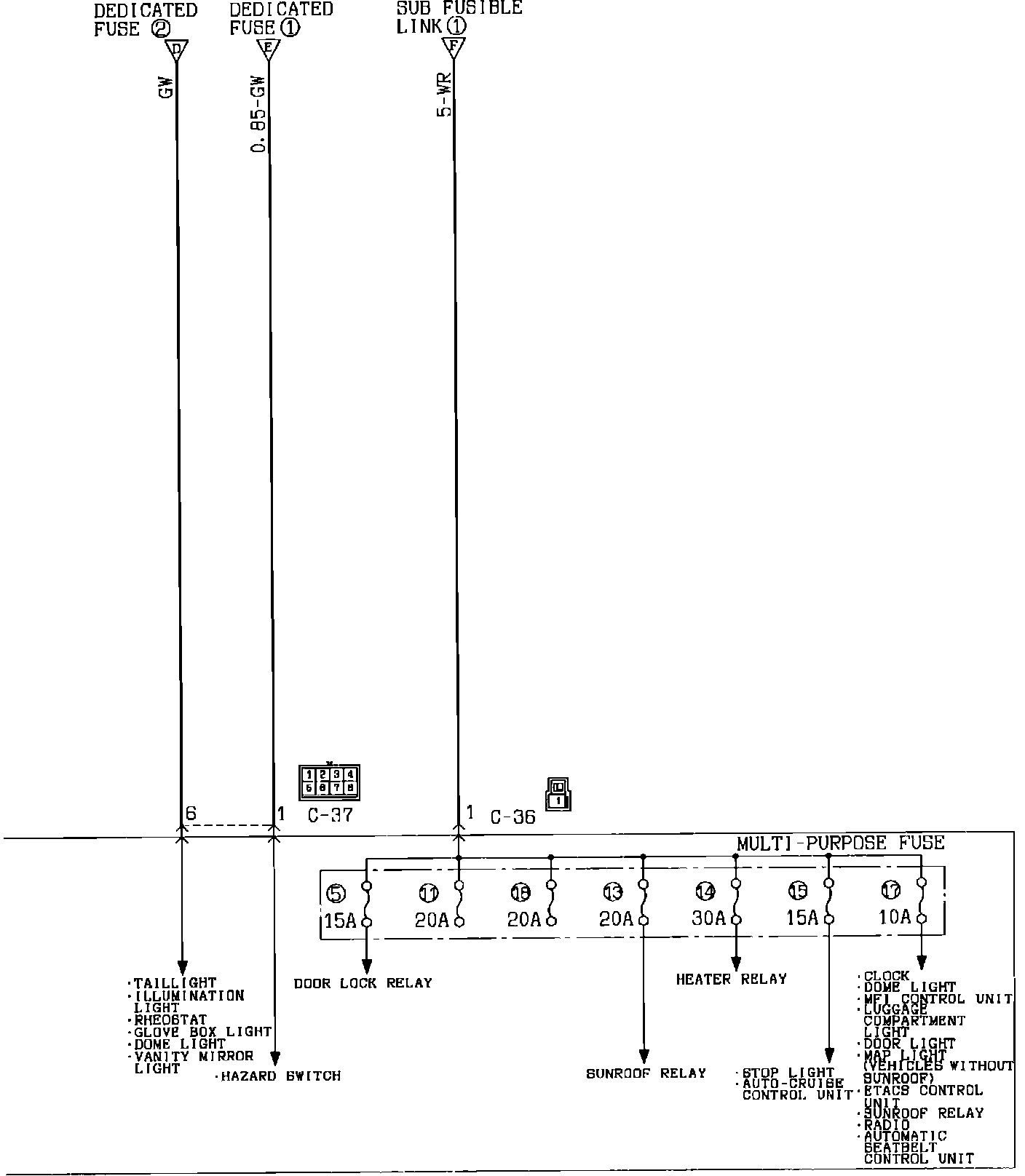

Power Distribution:

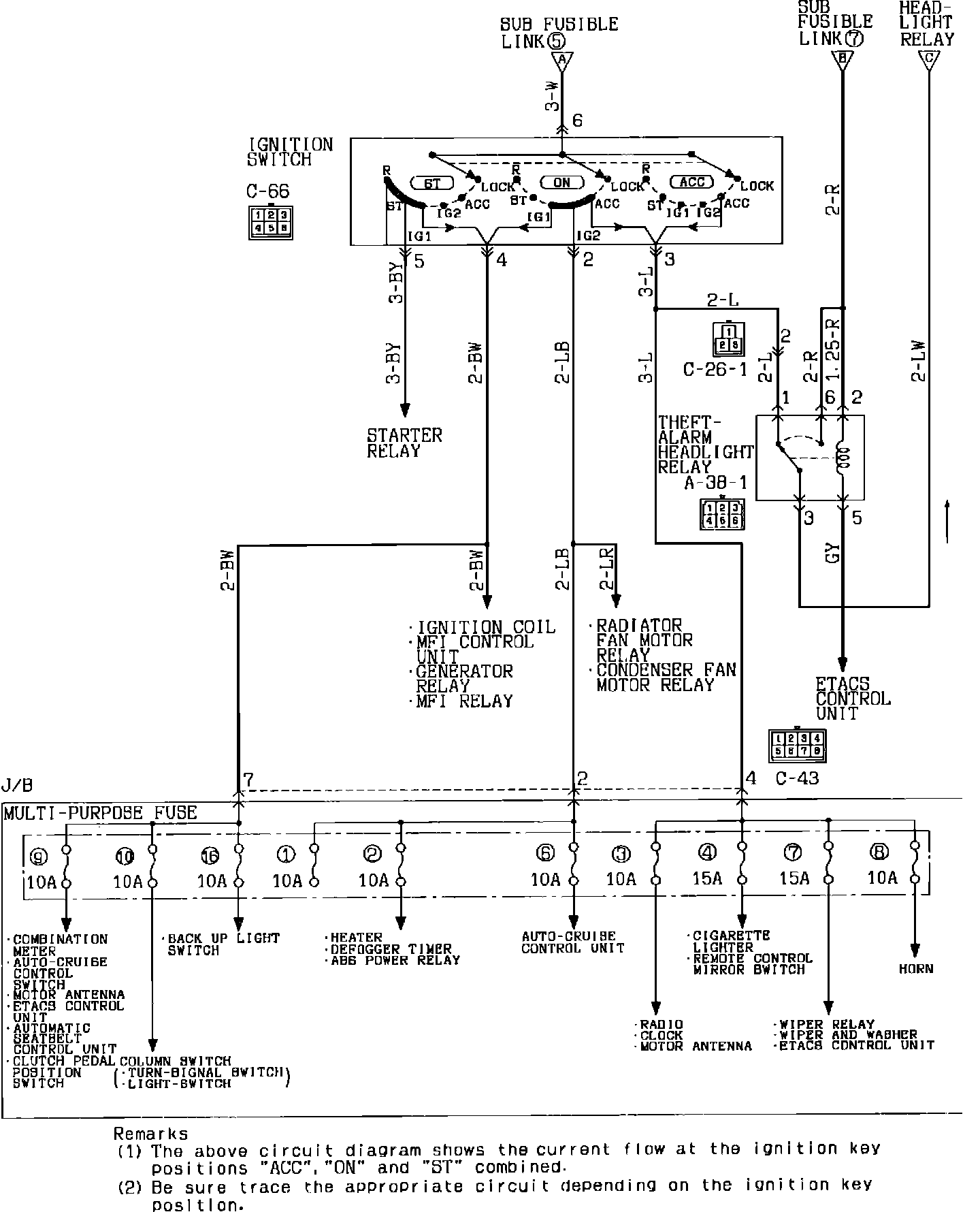

Power Distribution:

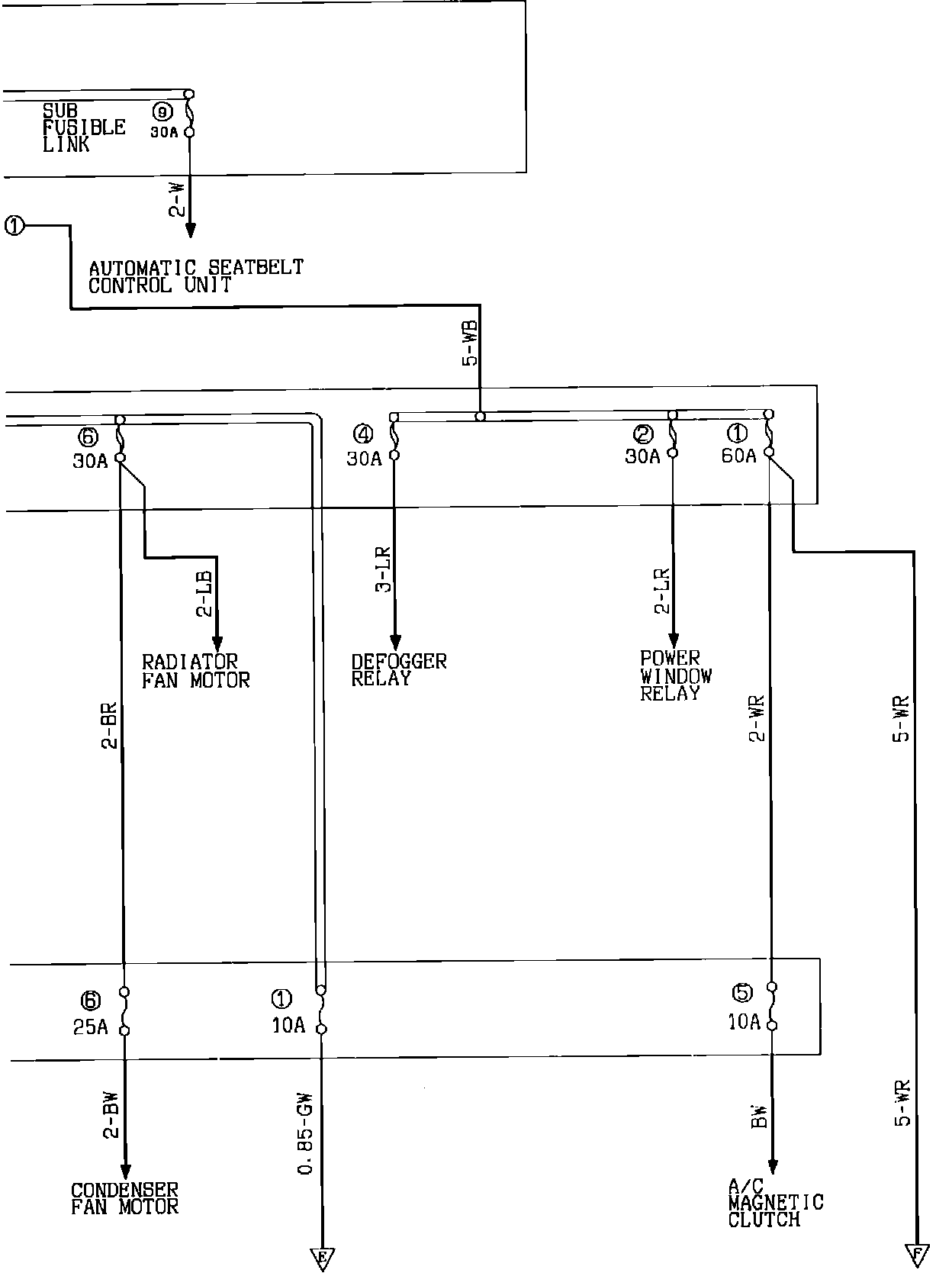

Power Distribution:
