Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio, Stereo, and Compact Disc >> With CD Player

With CD Player

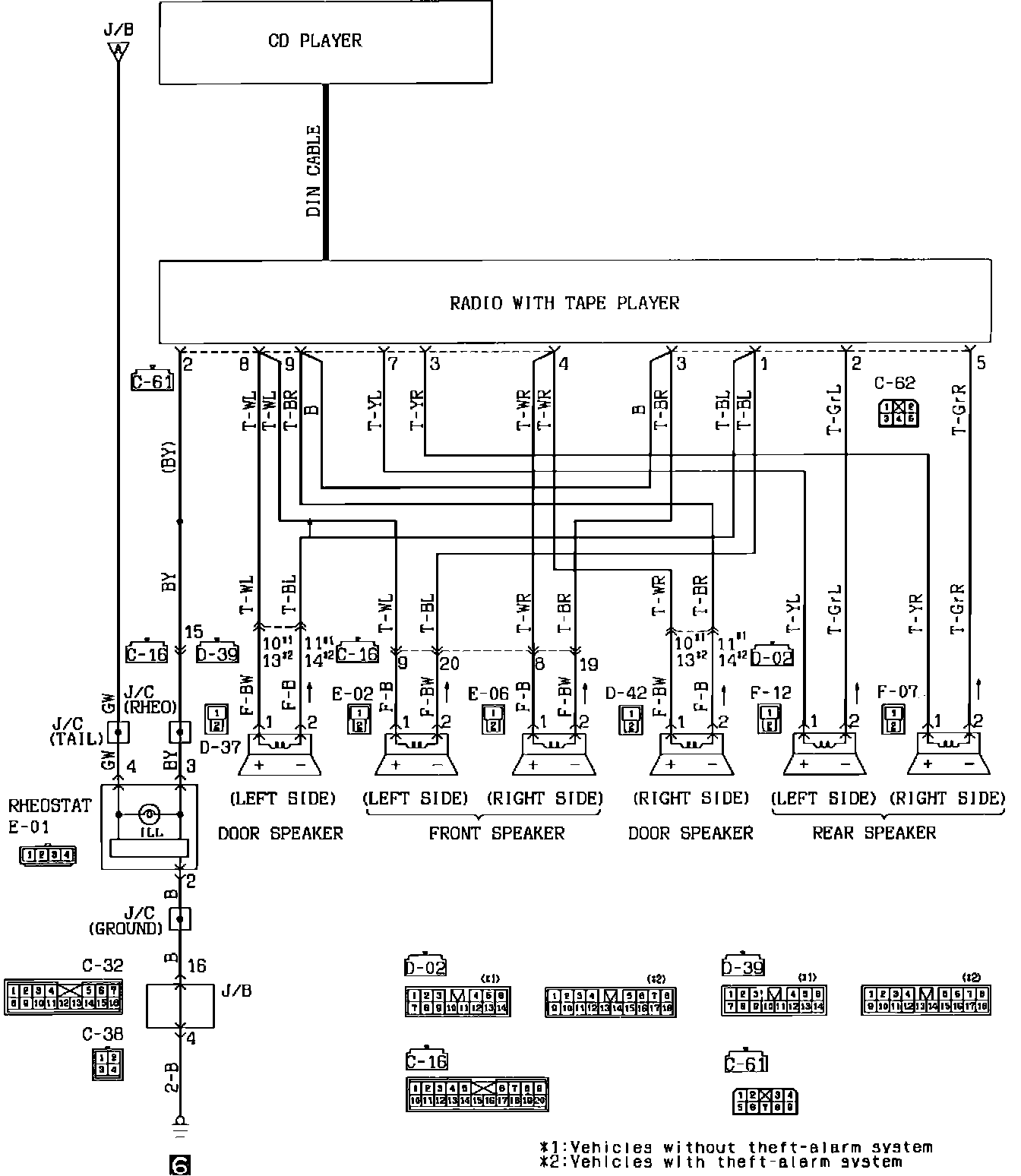

Audio System (With CD Player):

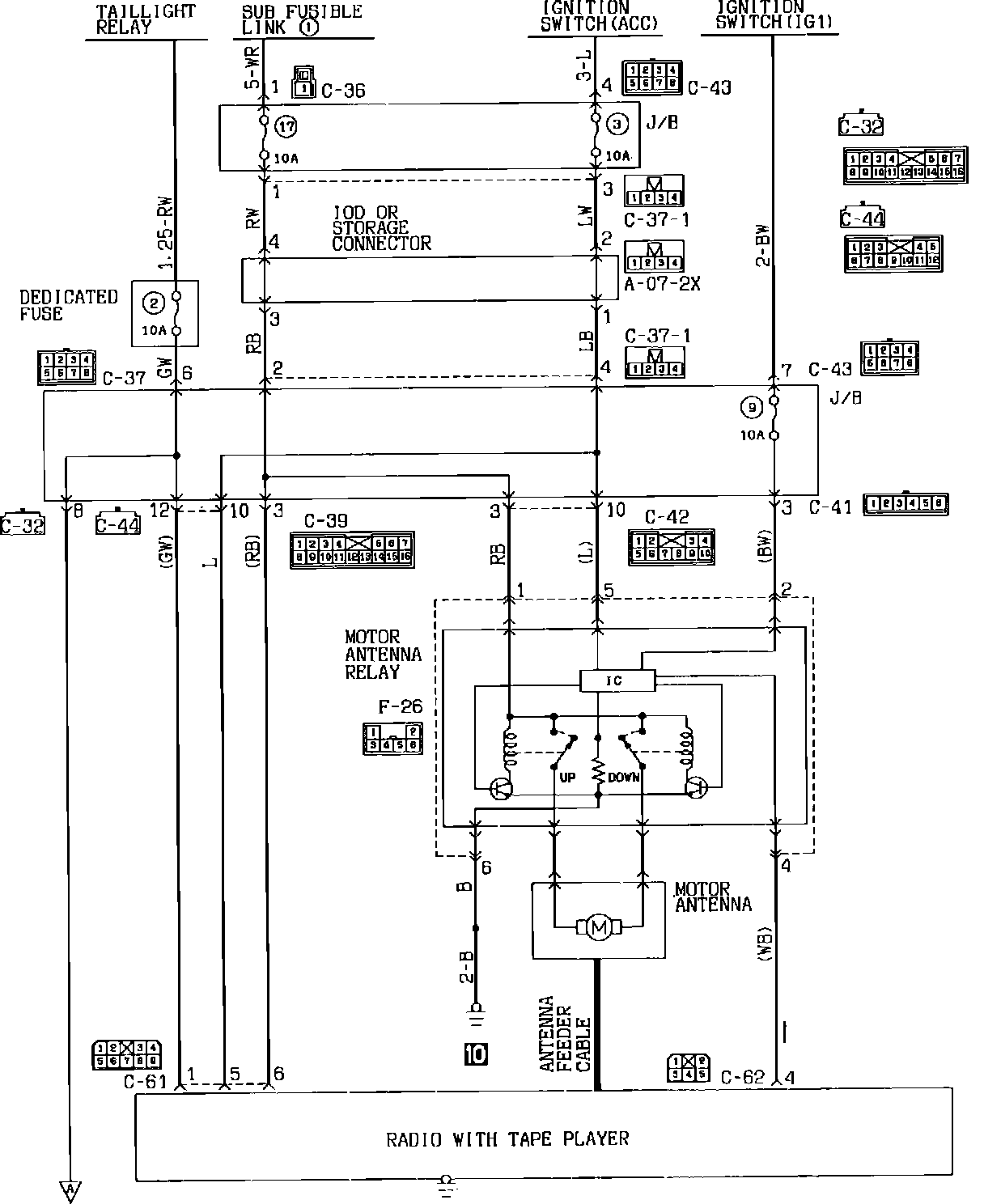

Audio System (With CD Player):
