Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Starting System >> With Alarm

With Alarm

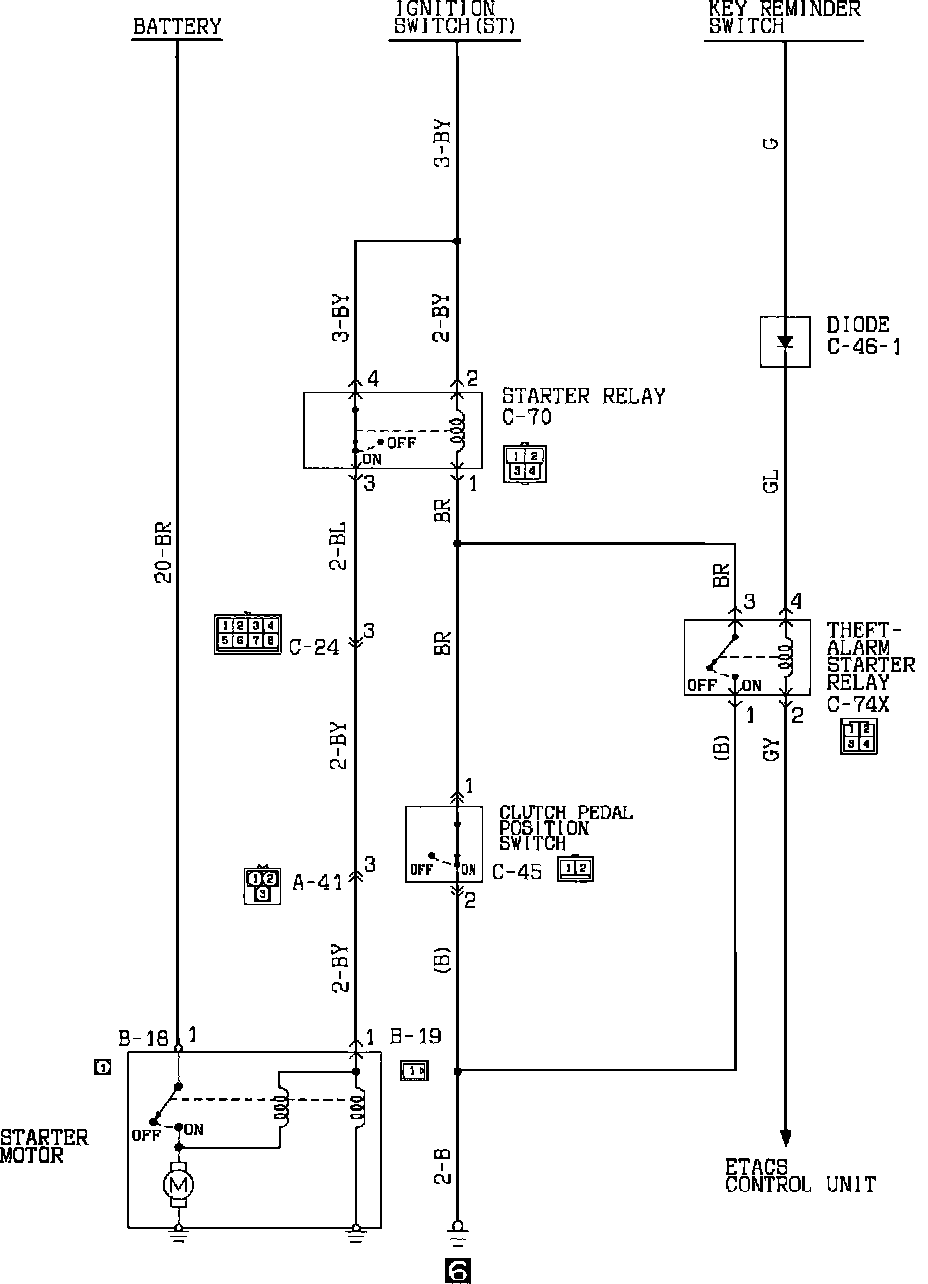

Starting System (With Alarm):
