Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Heating and Air Conditioning >> Compressor Clutch Relay >> Locations

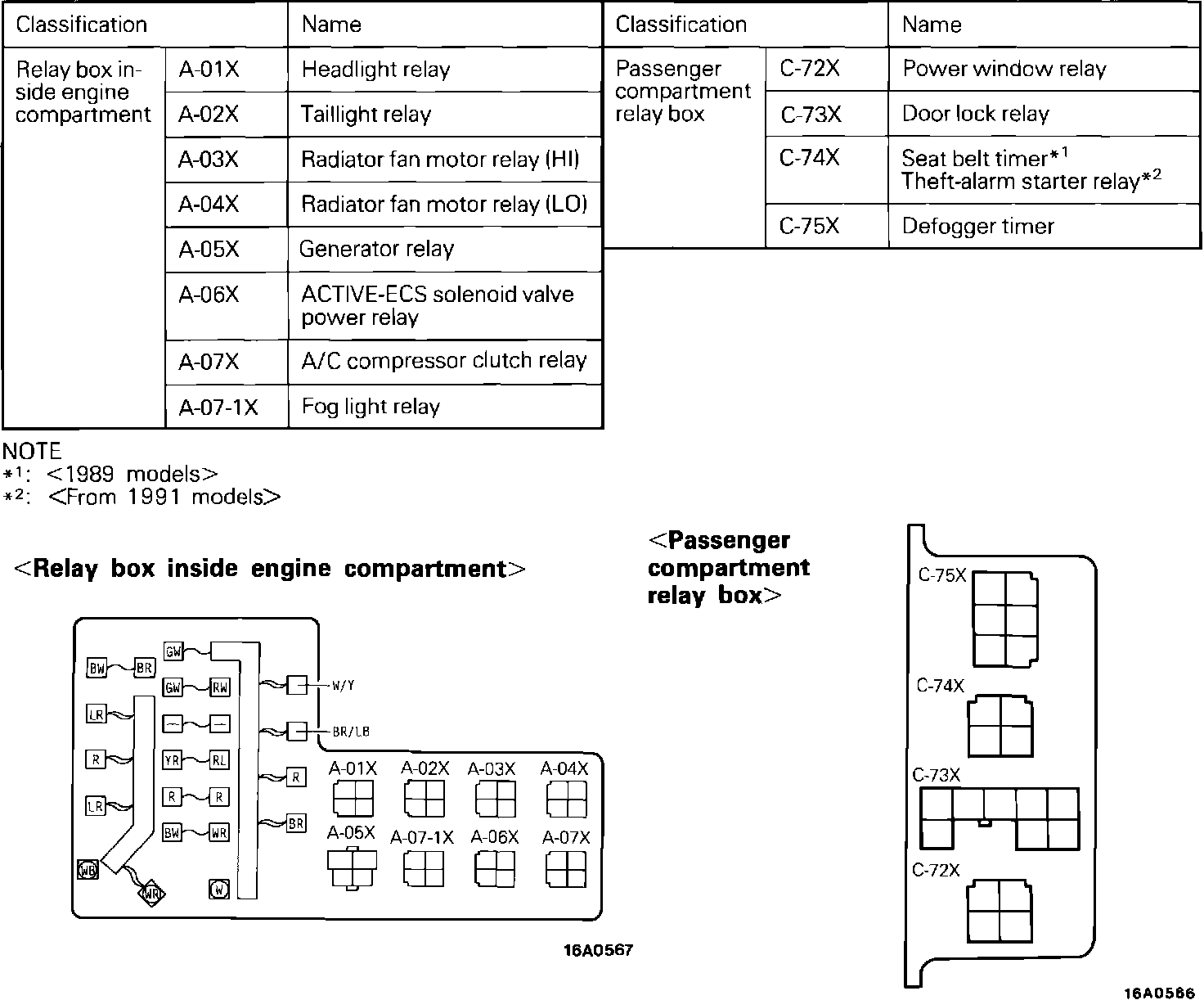

Compressor Clutch Relay: Locations

Centralized Junction: Centralized Relay:
