Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Locations
>>

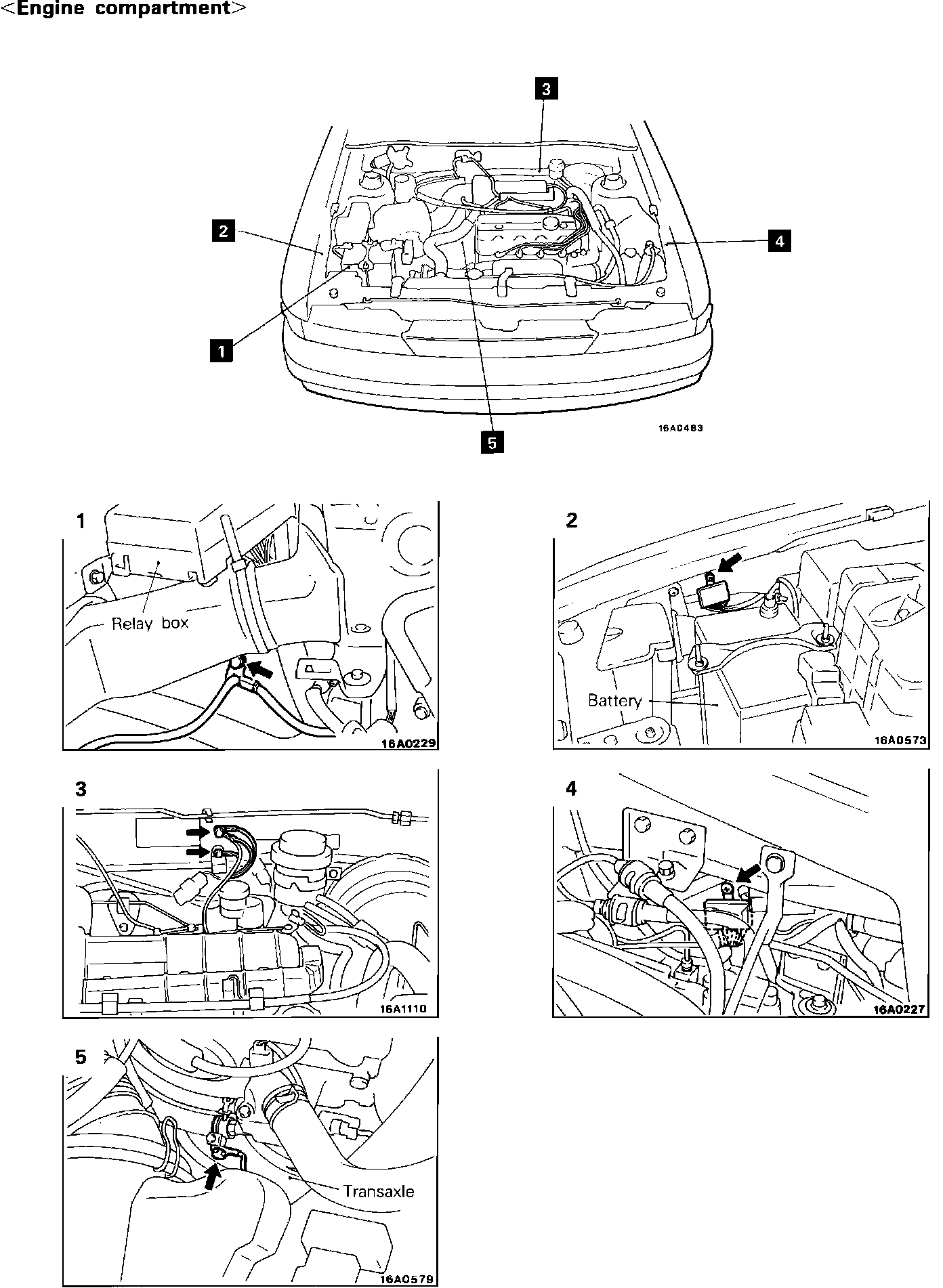

Ground Locations
>>
Engine Compartment
Engine Compartment
Ground Locations:
