Exhaust Gas Recirculation: Locations

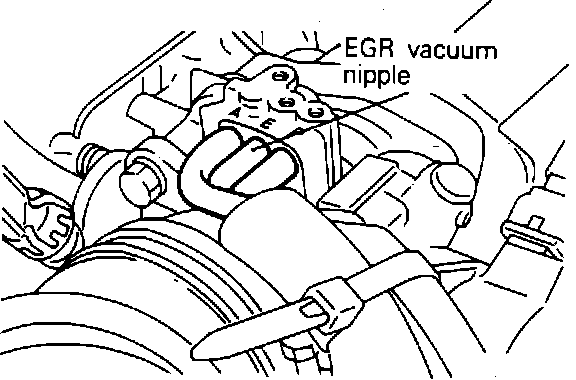

EGR Vacuum Nipple Location:





The EGR vacuum source is located on the throttle body.
