Powertrain Management: Locations

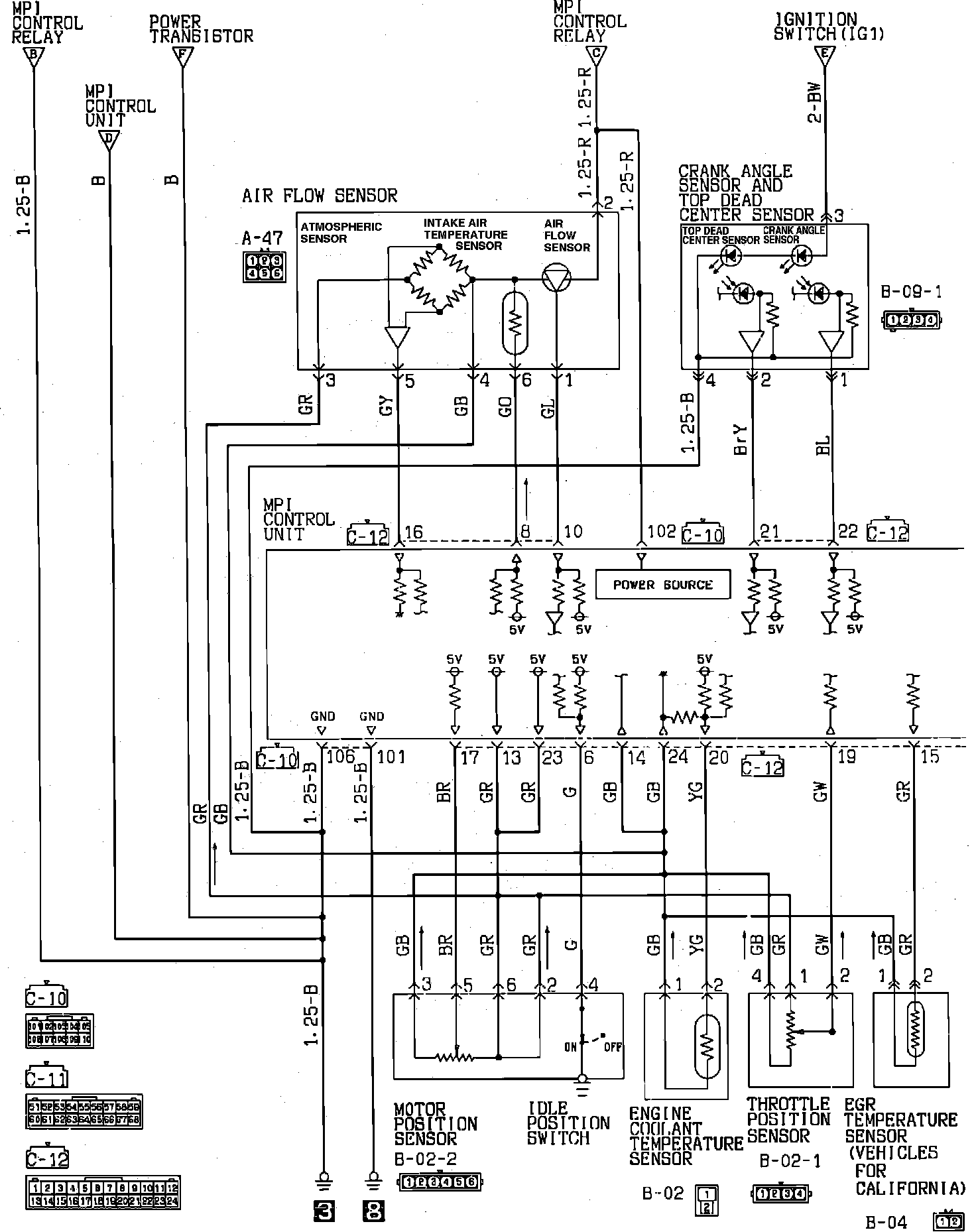

MPI Circuit Diagram 3 Of 4:

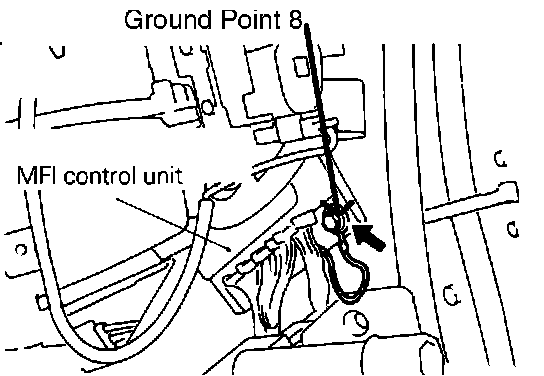

ECM Ground 8











ECM Ground 3 and 8

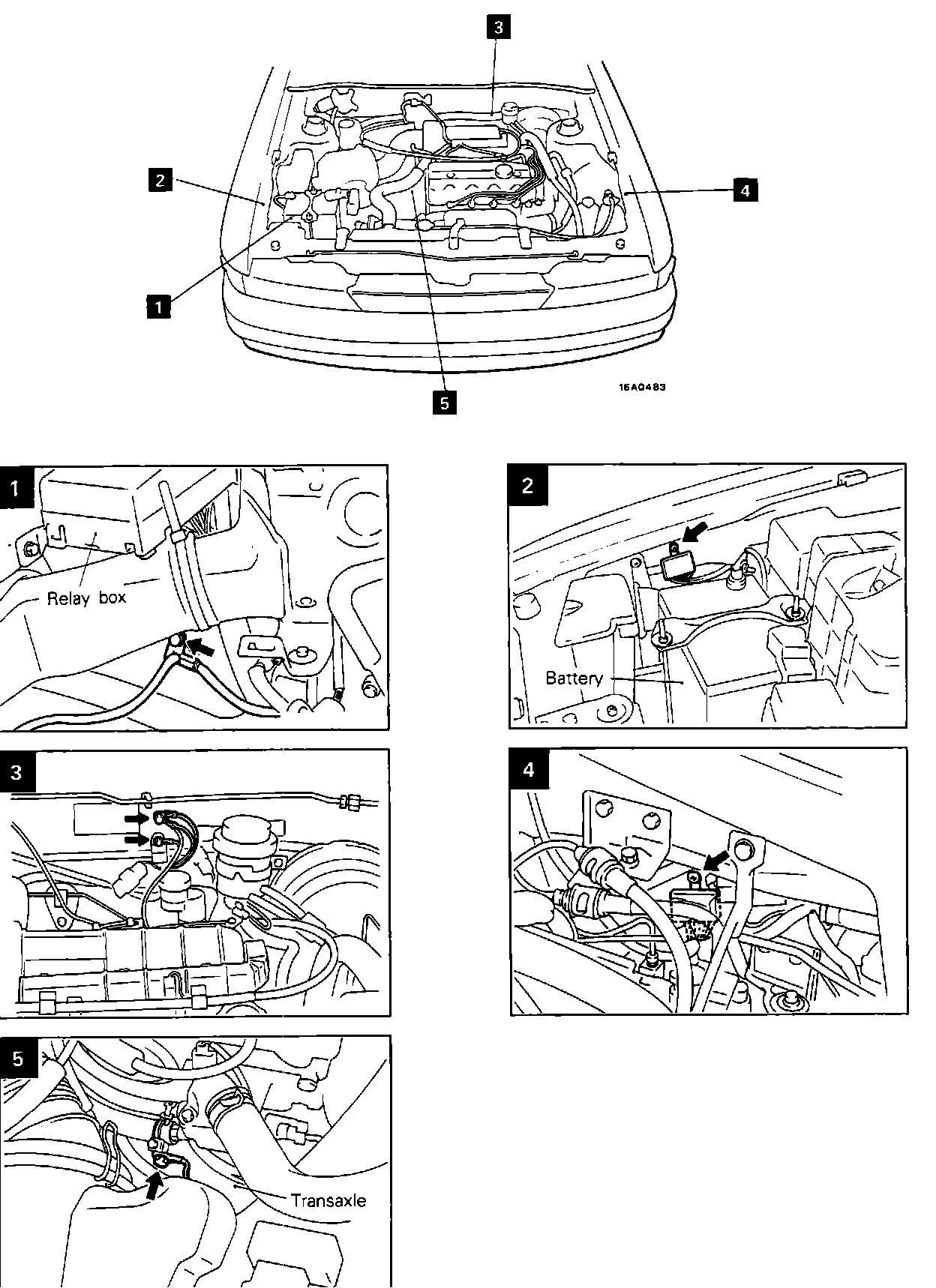

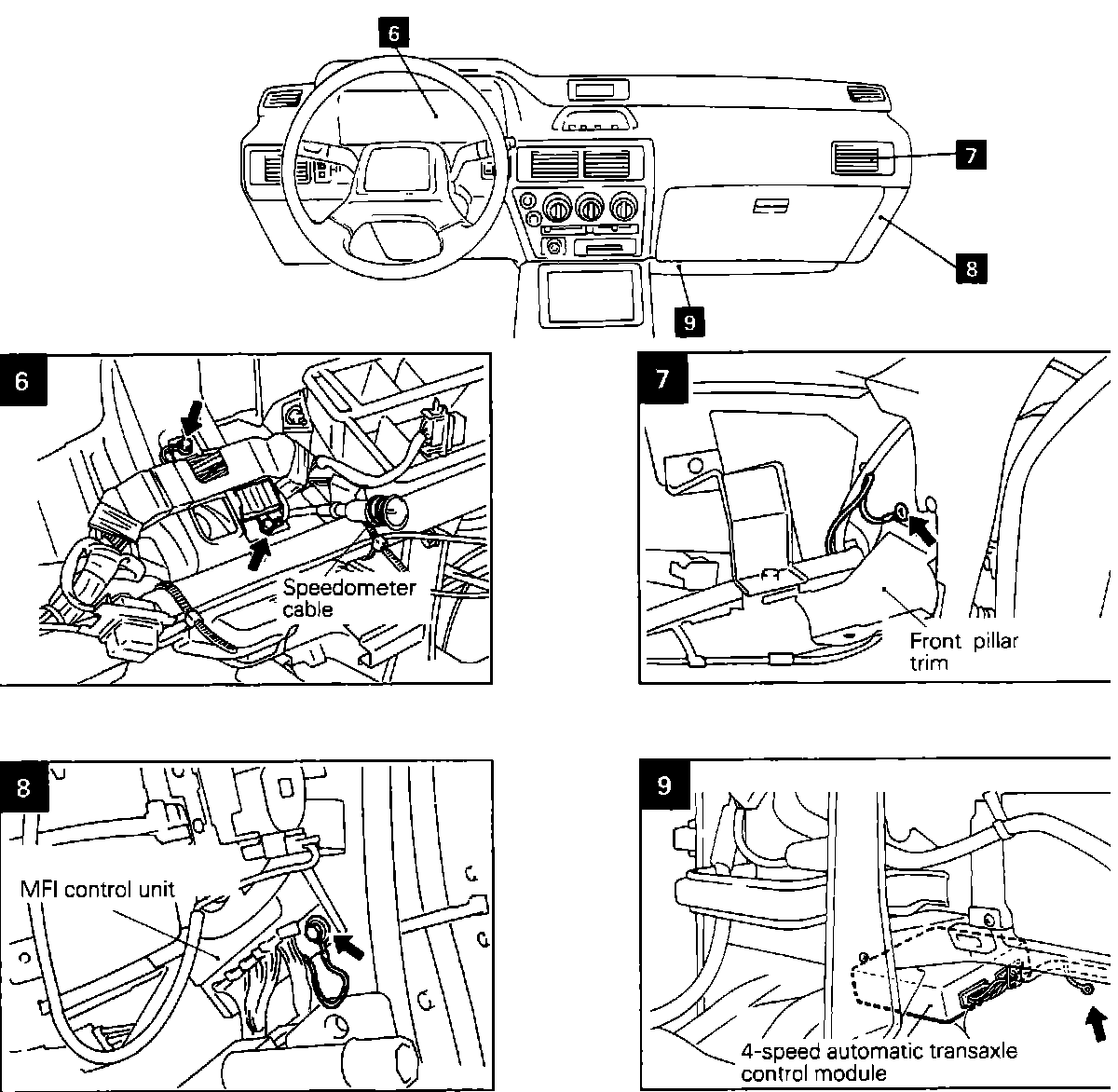

GENERAL - Grounding Location Exterior/Interior
