Home >> Mitsubishi >> 1992 >> Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Locations

Suspension Control ( Automatic - Electronic ): Locations

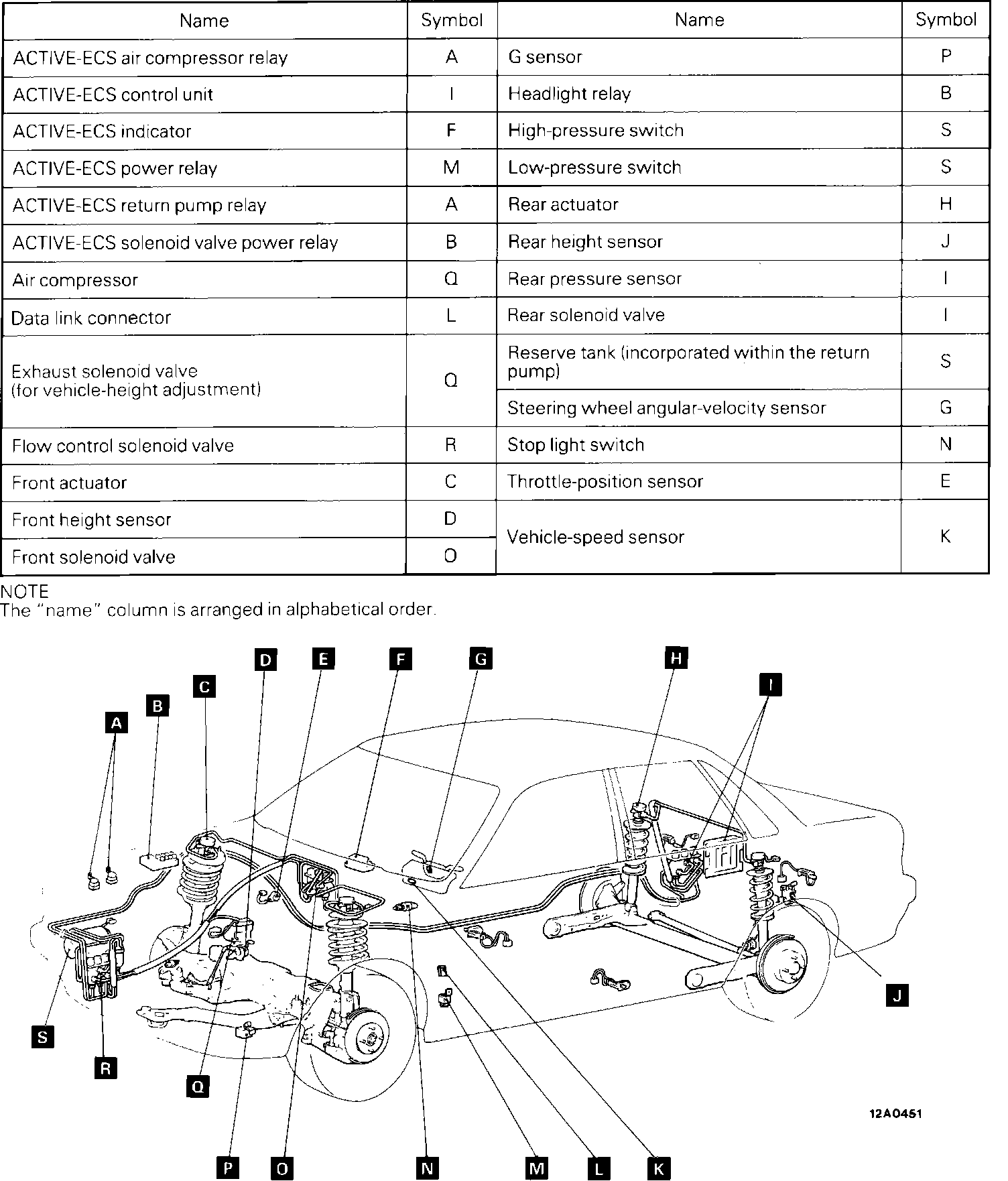

Active-Electronic Control Suspension (ECS): Component Location:

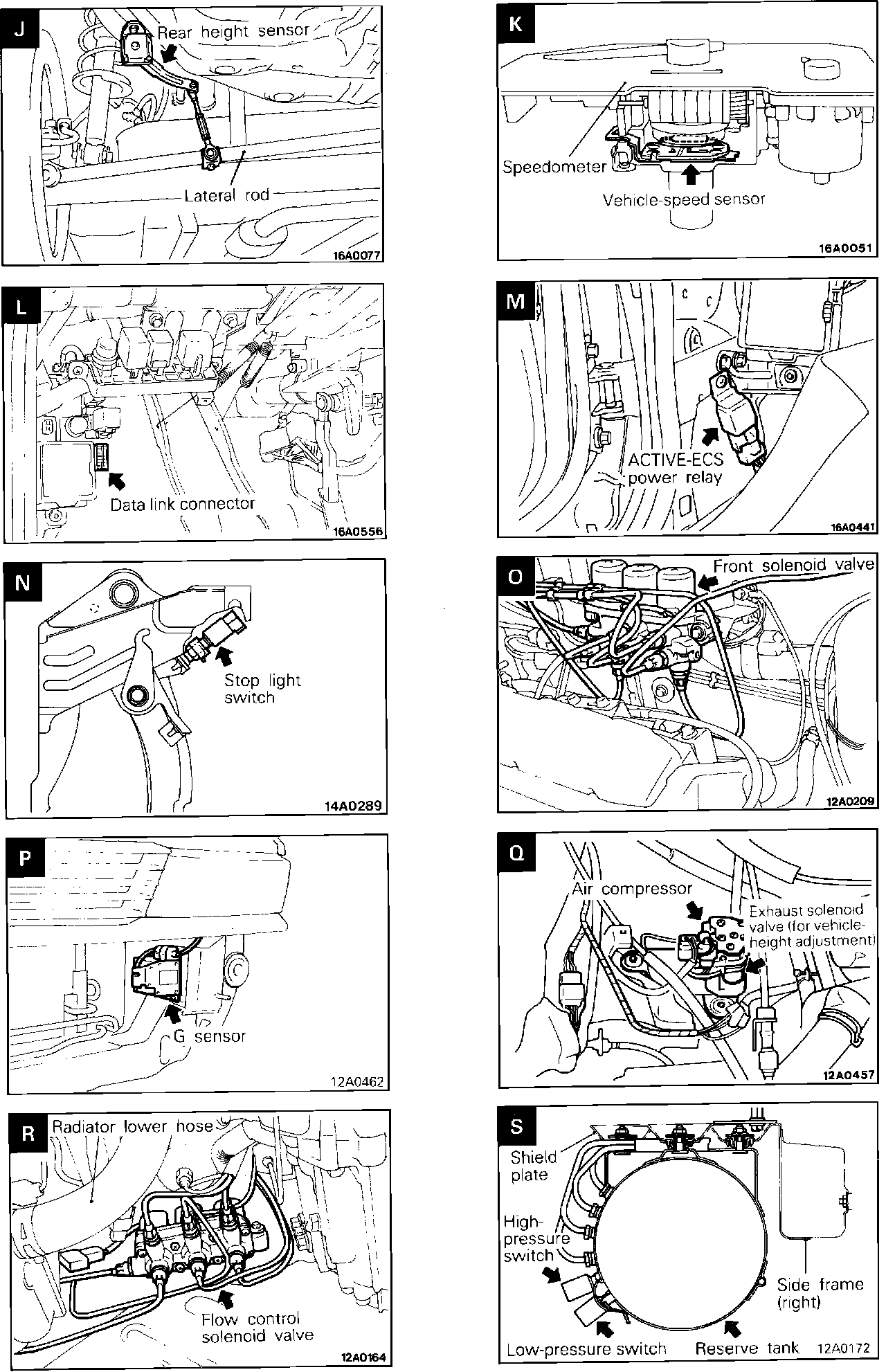

Active-Electronic Control Suspension (ECS): Component Location:

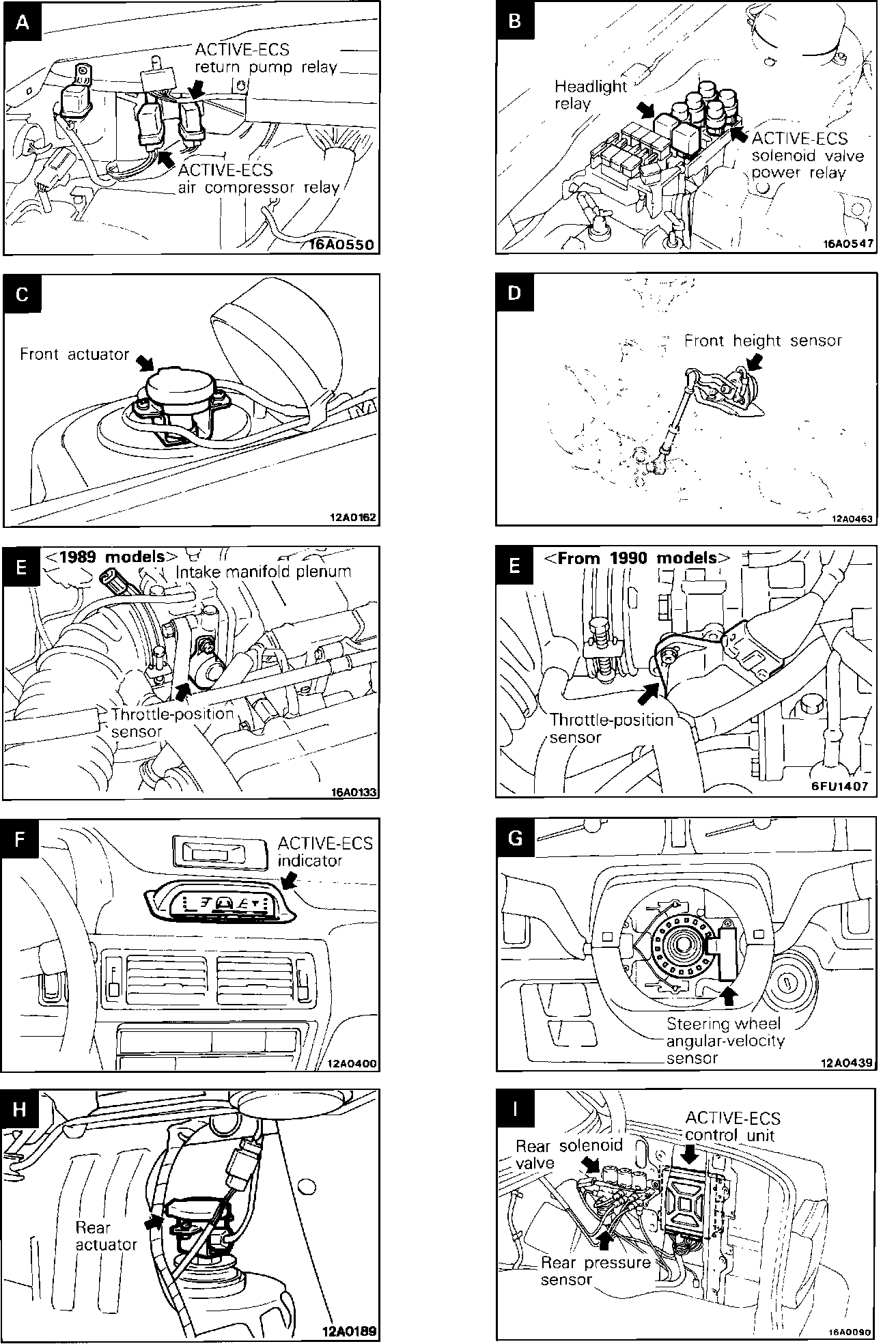

Active-Electronic Control Suspension (ECS): Component Location:
