Galant VR4 AWD L4-1997cc 2.0L DOHC Turbo
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

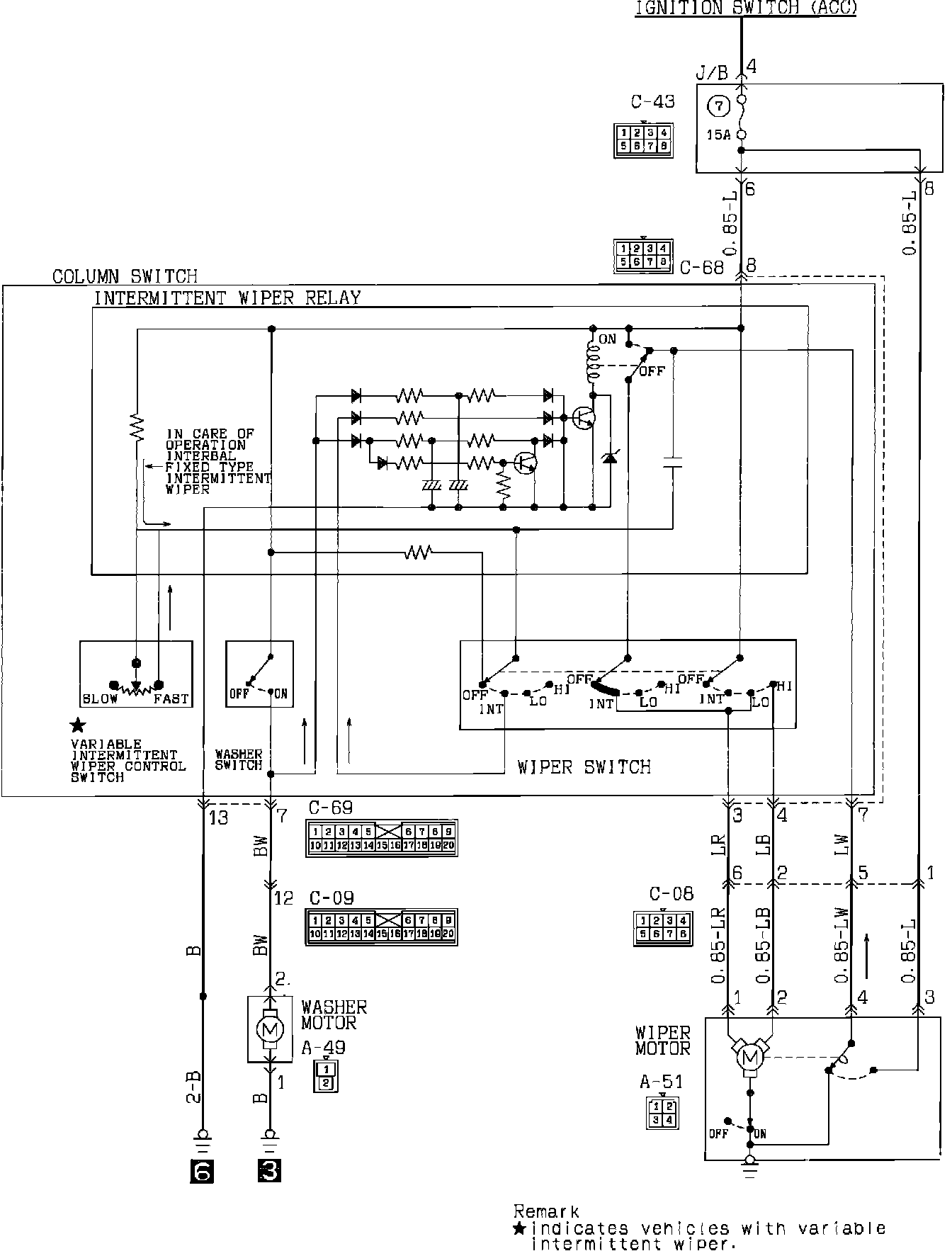

Wiper/Washer (Without ETACS):

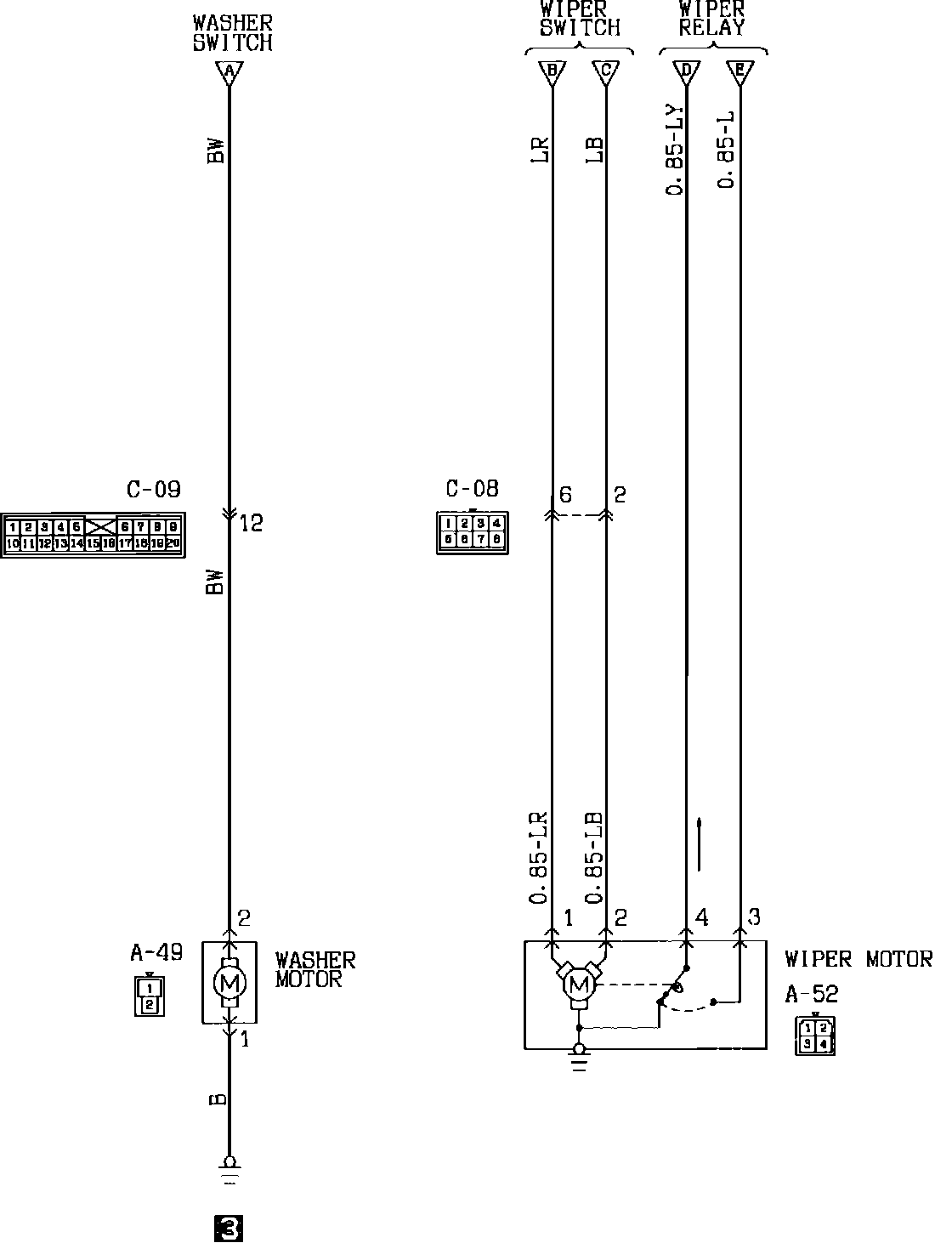

Wiper/Washer (With ETACS):
Wiper/Washer (With ETACS):
