Ignition System

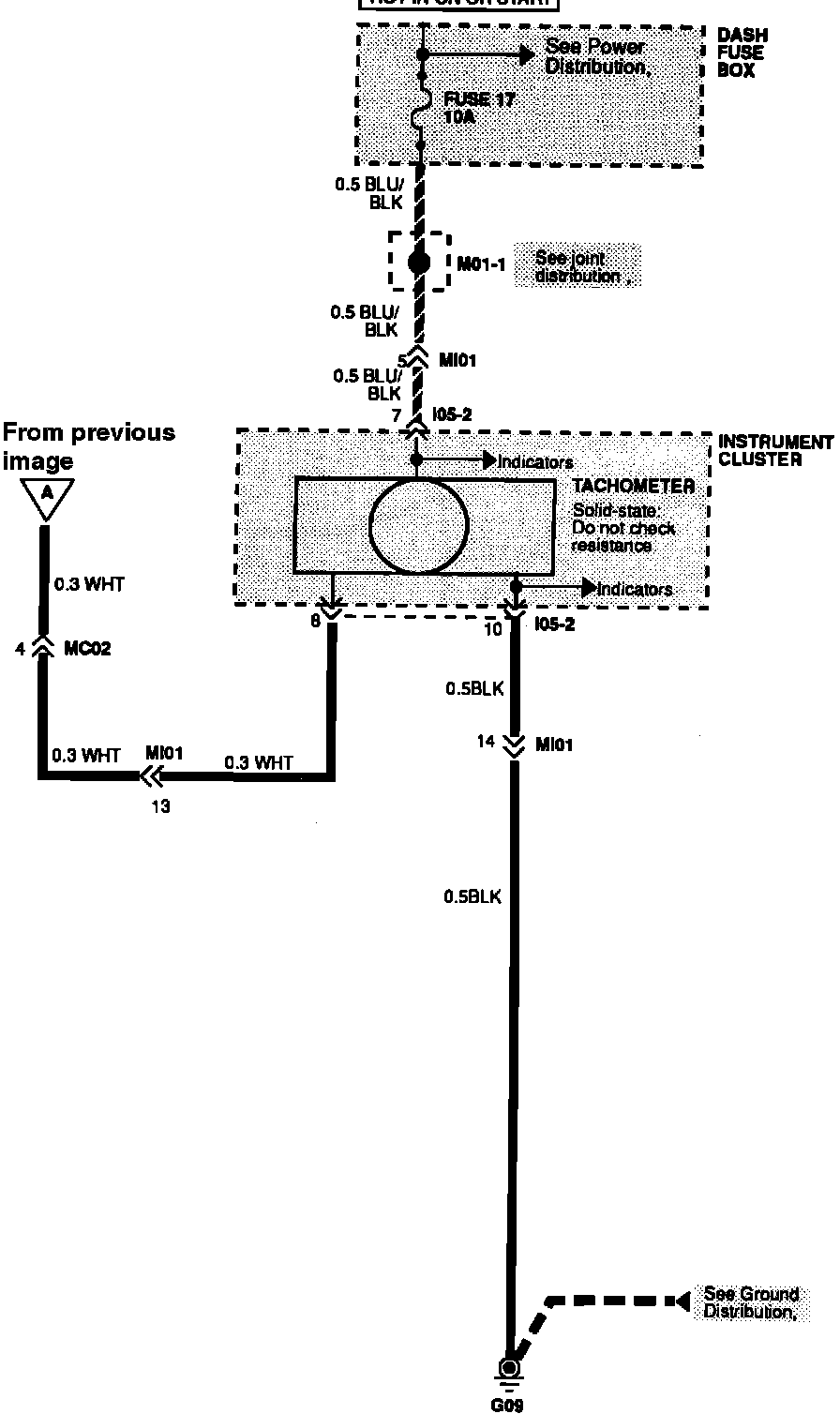

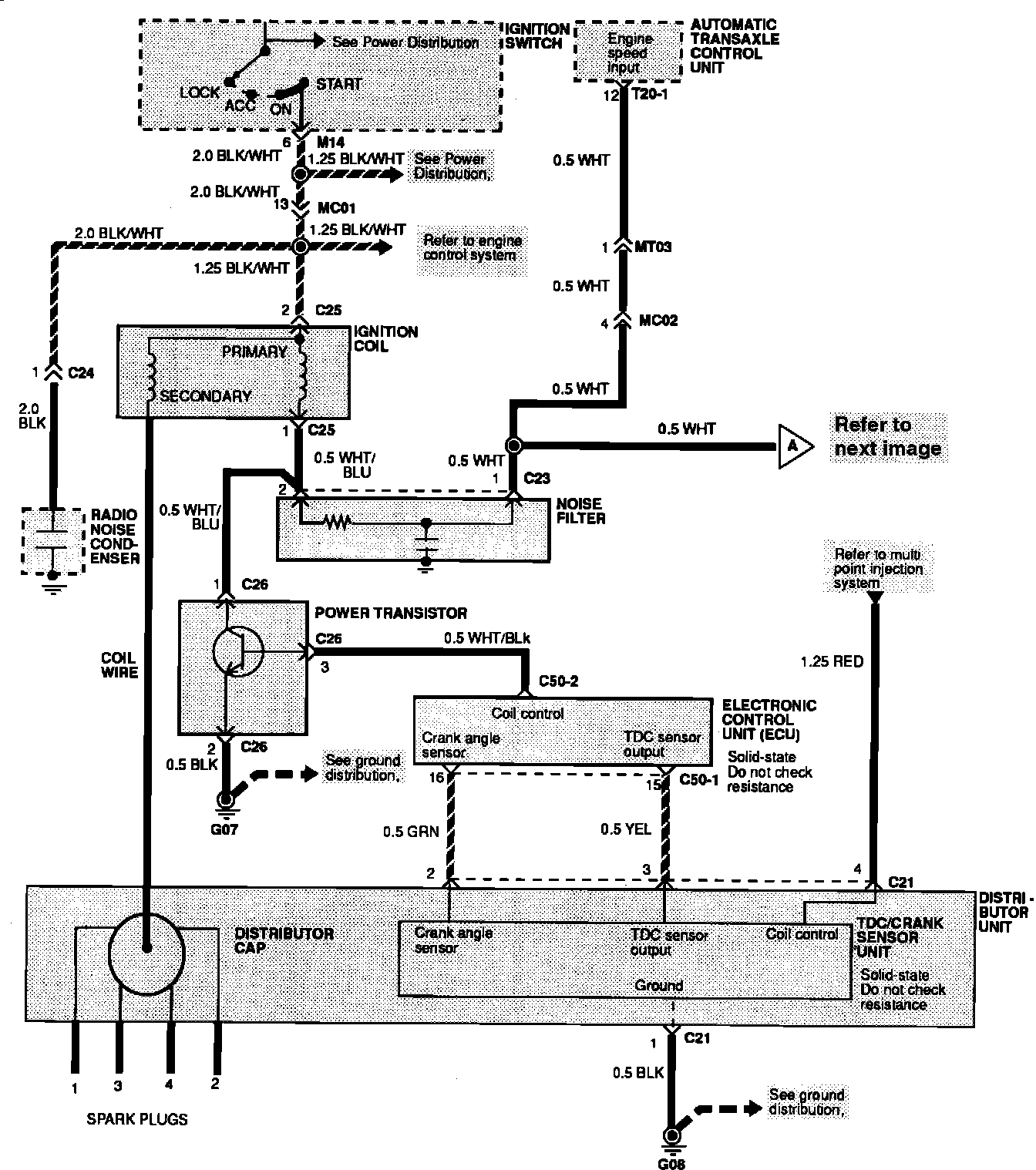

Ignition System:




Ignition System:





For additional wiring information refer to CHASSIS ELECTRICAL DIAGRAMS.
