Tape Player

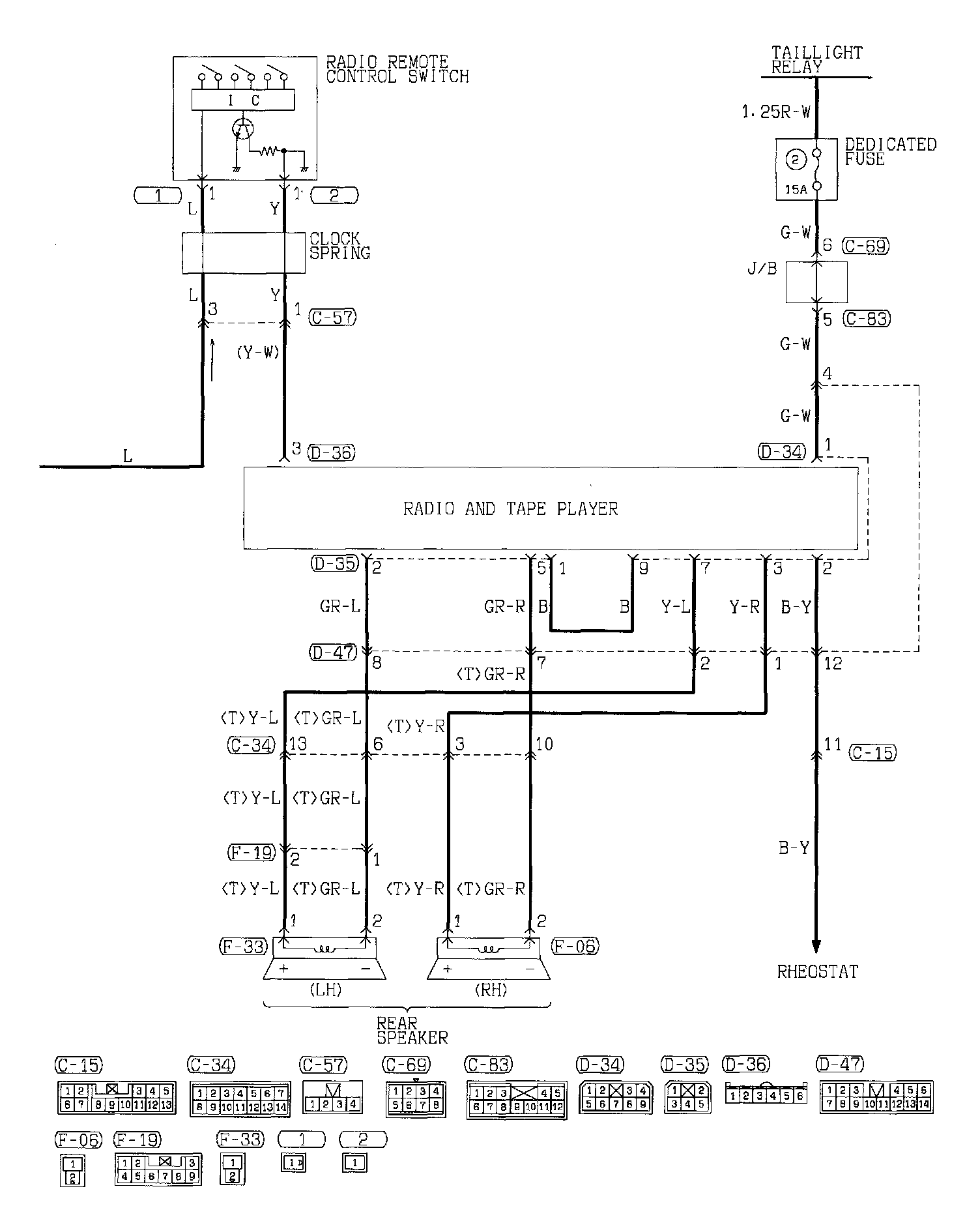

RADIO AND TAPE PLAYER - Part 1 Of 3:

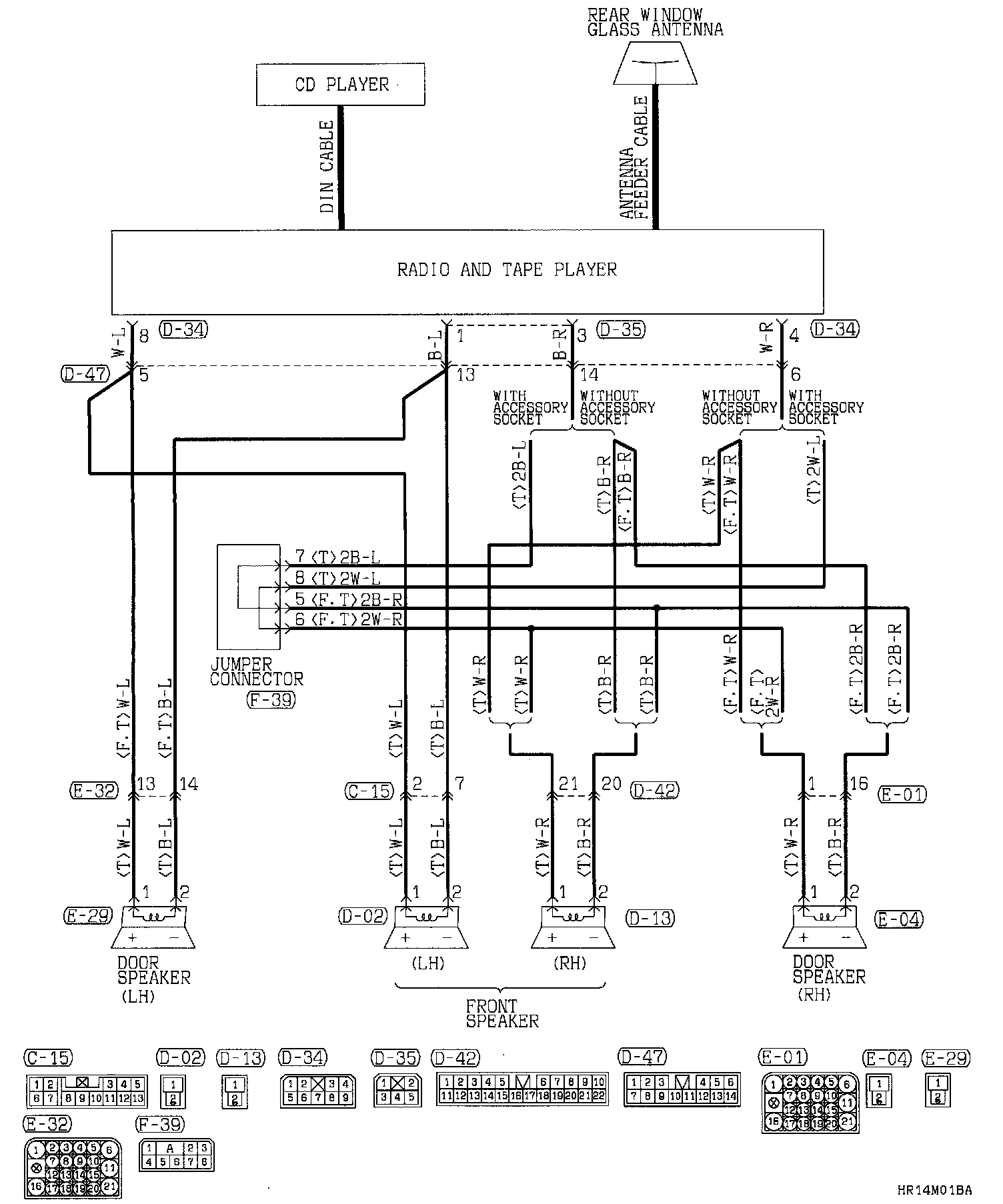

RADIO AND TAPE PLAYER - Part 2 Of 3:

RADIO AND TAPE PLAYER - Part 3 Of 3:
