Fuel Gauge: Testing and Inspection

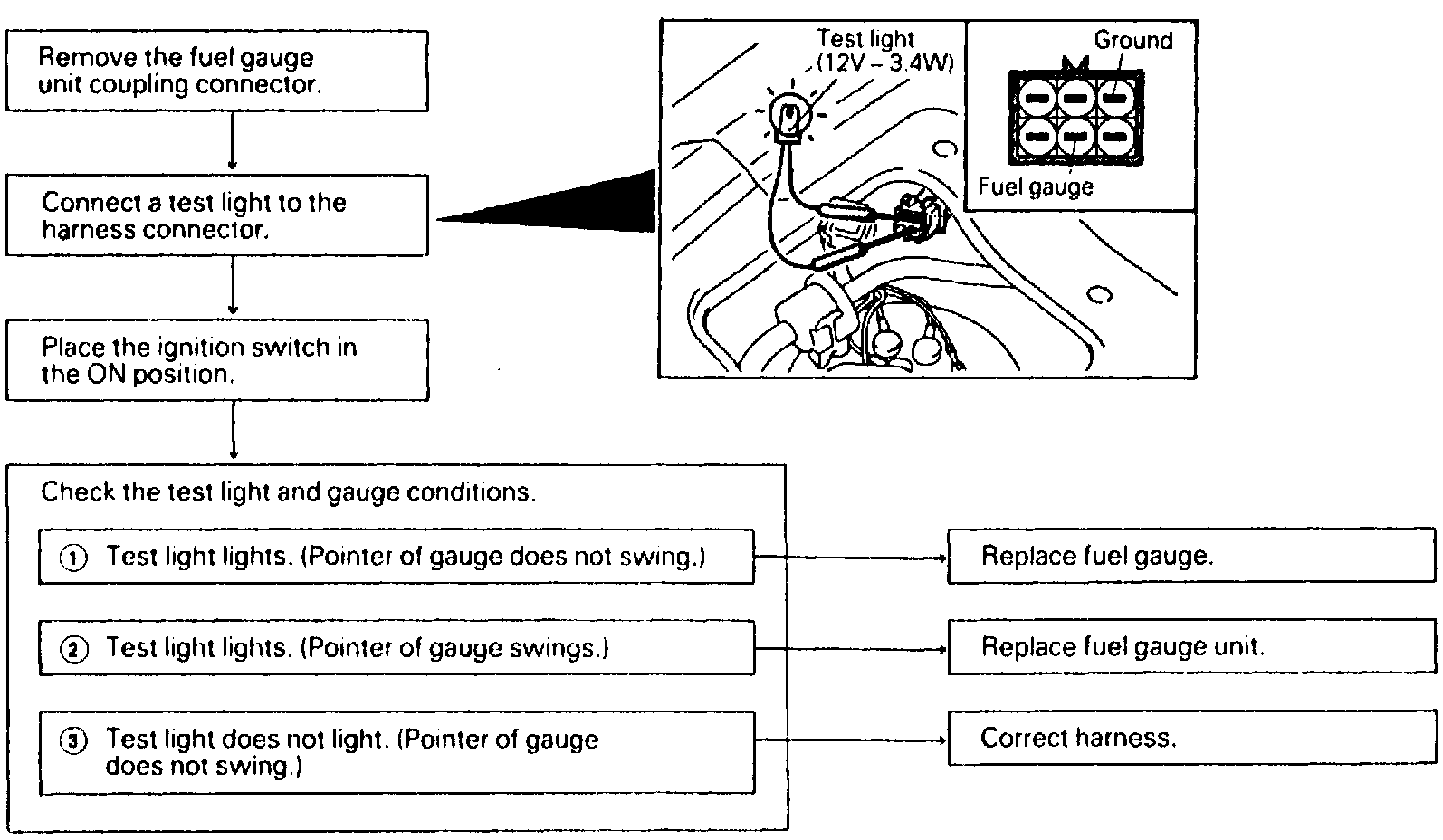

Fig. 6 Fuel Gauge Diagnosis:




Refer to Fig. 6 for fuel gauge diagnosis.
