Courtesy Lamp: Description and Operation

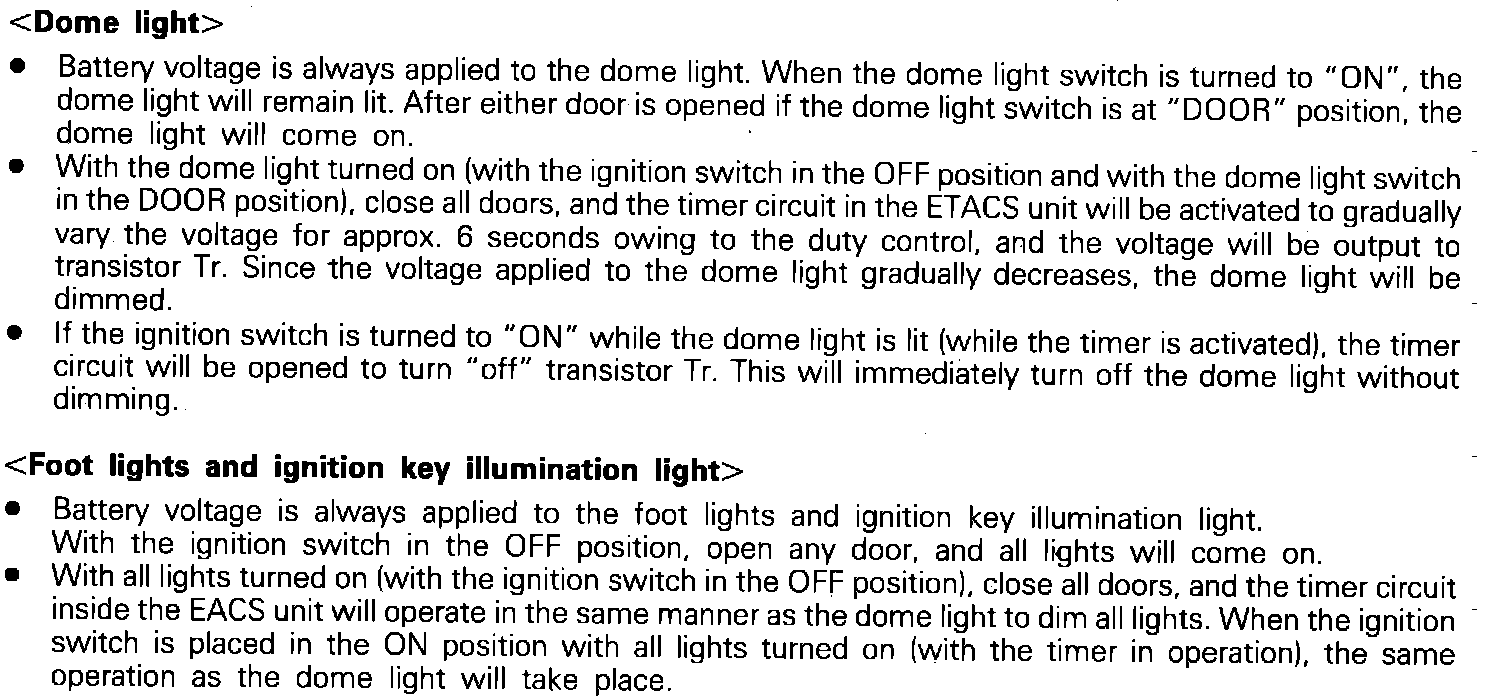

Dome, Foot, And Ignition Key Cylinder Illumination Circuit Operation:
