Tail Lamp: Description and Operation

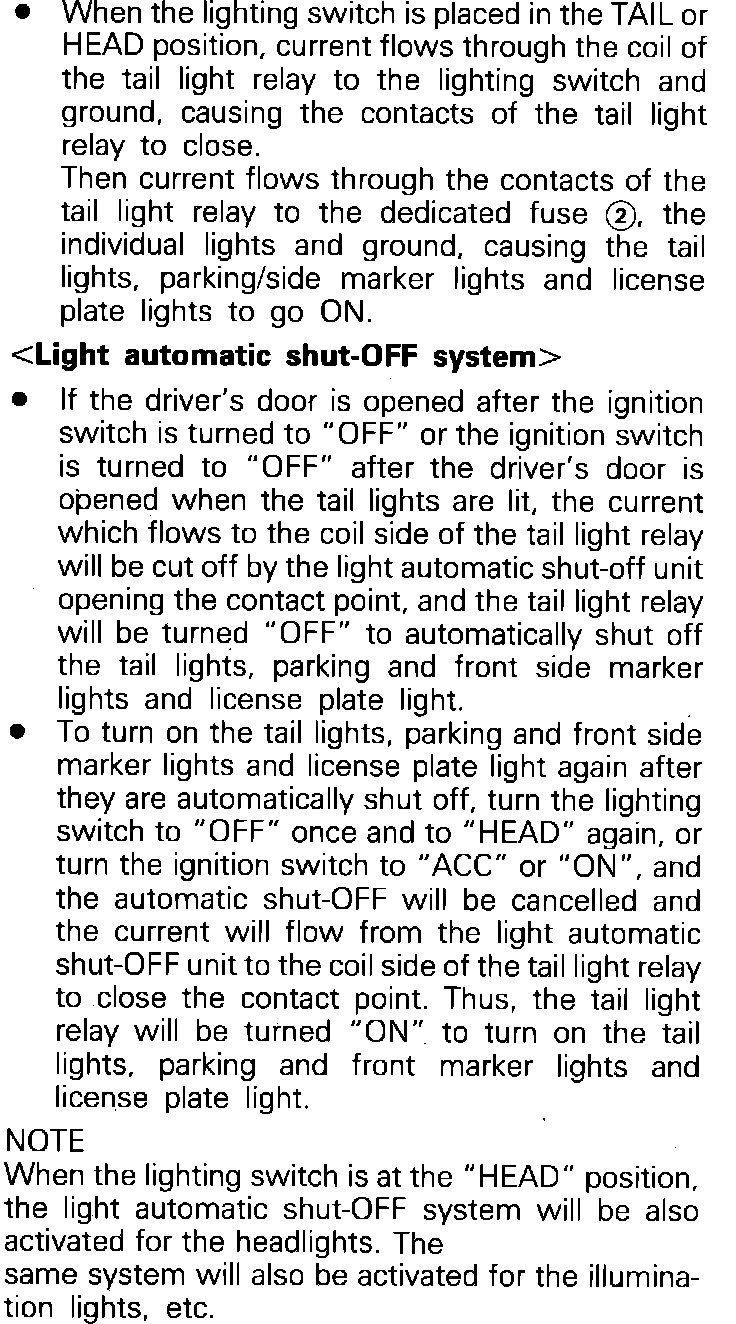

Tail, Parking/Side Marker And License Plate Lamps Circuit Operation:
