Parts/Warranty Information

Two hoses are required for each affected vehicle. A small supply of parts will be shipped to each dealership with their normal stock orders during the week of September 16, 1996. Additional orders can be placed through the normal parts ordering system if the initial allocation of hoses is insufficient to meet demand.

SUBMIT AS CLAIM TYPE "C" (MENU OPTION "E-5") ON YOUR DIAMOND NETWORK WARRANTY MENU SCREEN

SELECT THE CORRECT CAMPAIGN LABOR OPERATION

- Montero C9604KXX

- Diamante Sedan C96O4PXX

- Diamante Wagon C96O4CXX

- 3000GT C96O4DXX

LABOR TIME ALLOWANCE:

- All Models: 1.0 Hours

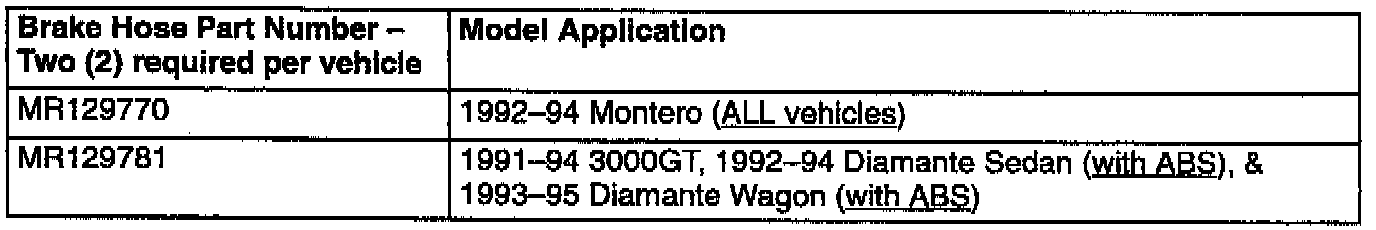

CLAIM ON THE SPECIFIED CAMPAIGN BRAKE HOSE PART NUMBERS:

- Montero MR129770

- Diamante Sedan MR129781

- Diamante Wagon MR129781

- 3000GT MR129781

ADDITIONAL PARTS ALLOWED TO BE CLAIMED:

- Brake Fluid At Actual Cost

NOTE: See SAMPLE Claims A-B-C-D as shown in this bulletin.

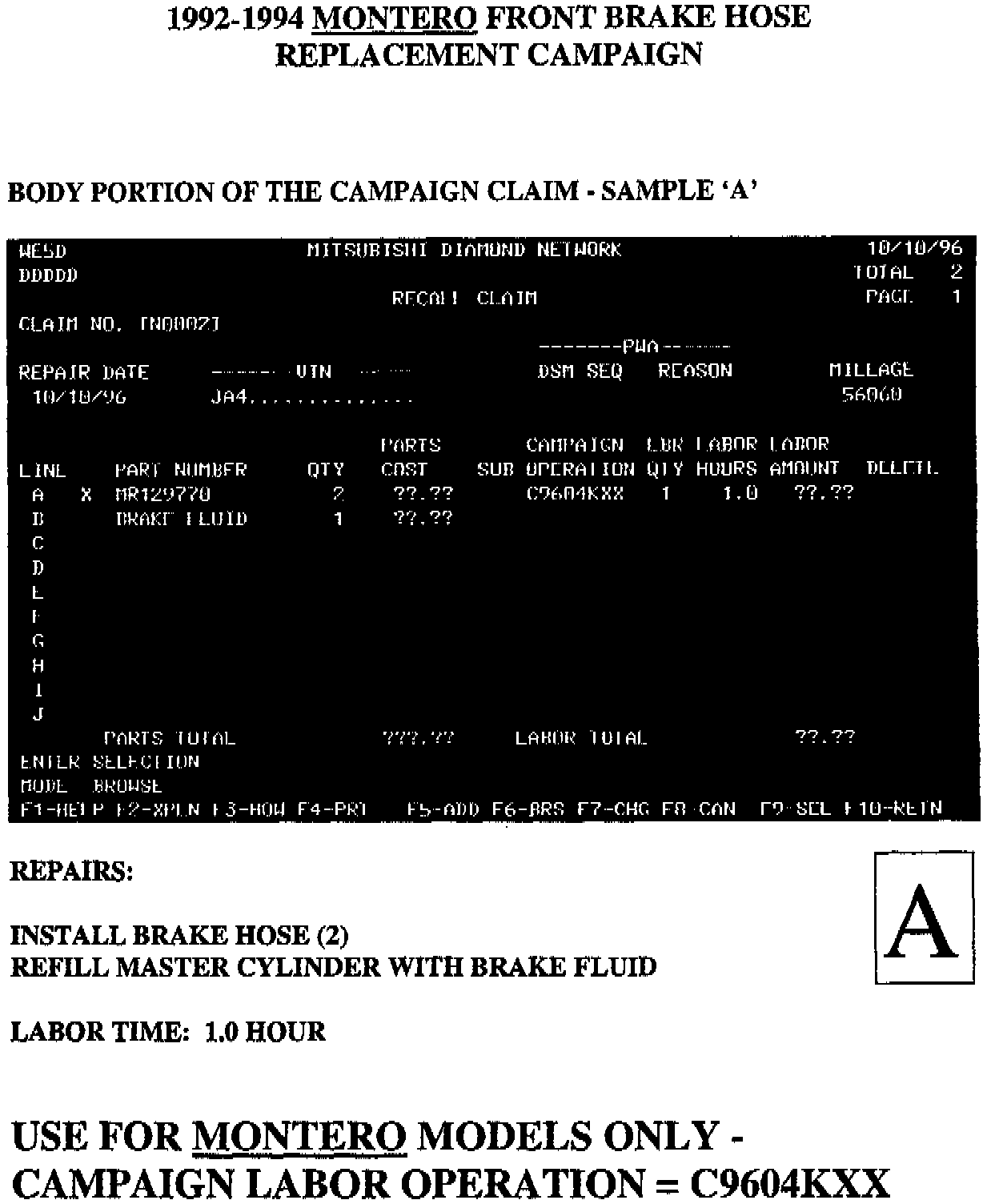

1992-94 Montero Front Brake Hose Replacement Campaign

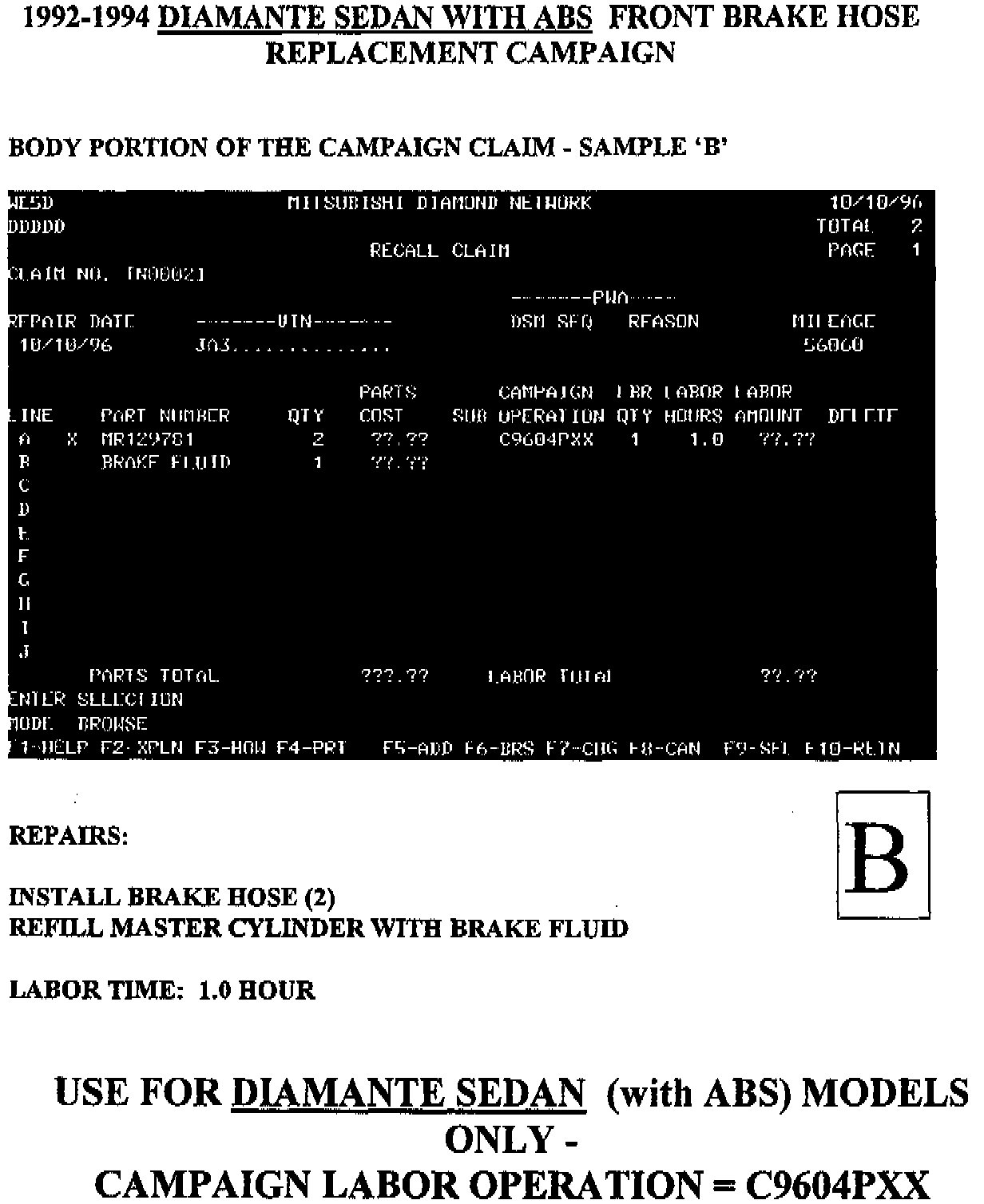

1992-94 Diamante Sedan With ABS Front Brake Hose Replacement Campaign






1992-94 Diamante Wagon With ABS Front Brake Hose Replacement Campaign






1992-94 3000GT With ABS Front Brake Hose Replacement Campaign
