B Connectors - Engine and Transaxle Harness
B Connectors - Engine and Transaxle Harness

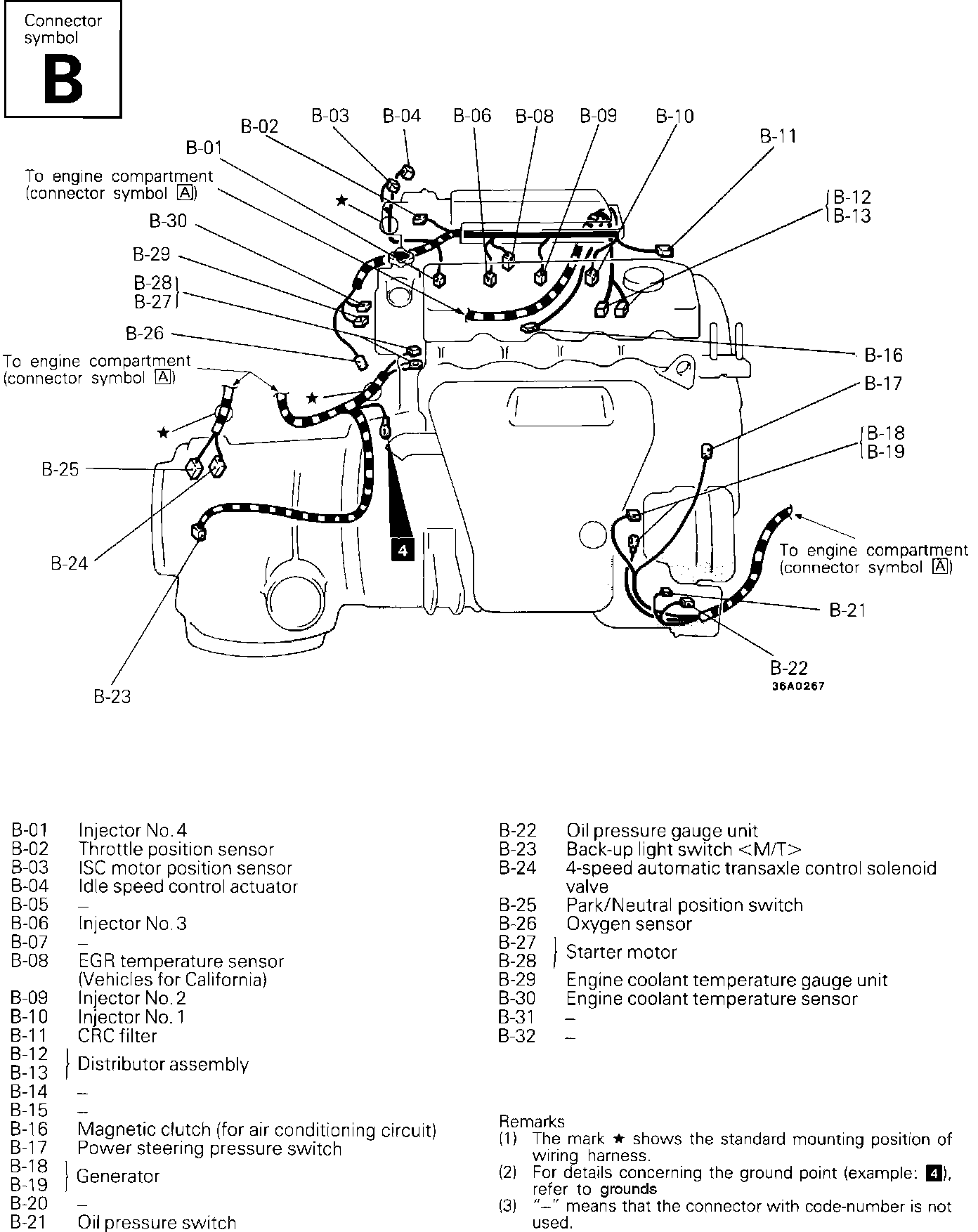

Connector Locations: Engine And Transaxle (B-01 Thru B-32):
