Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1993
>>
Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Connectors
>>
F Connectors - Rear Under Floor
F Connectors - Rear Under Floor

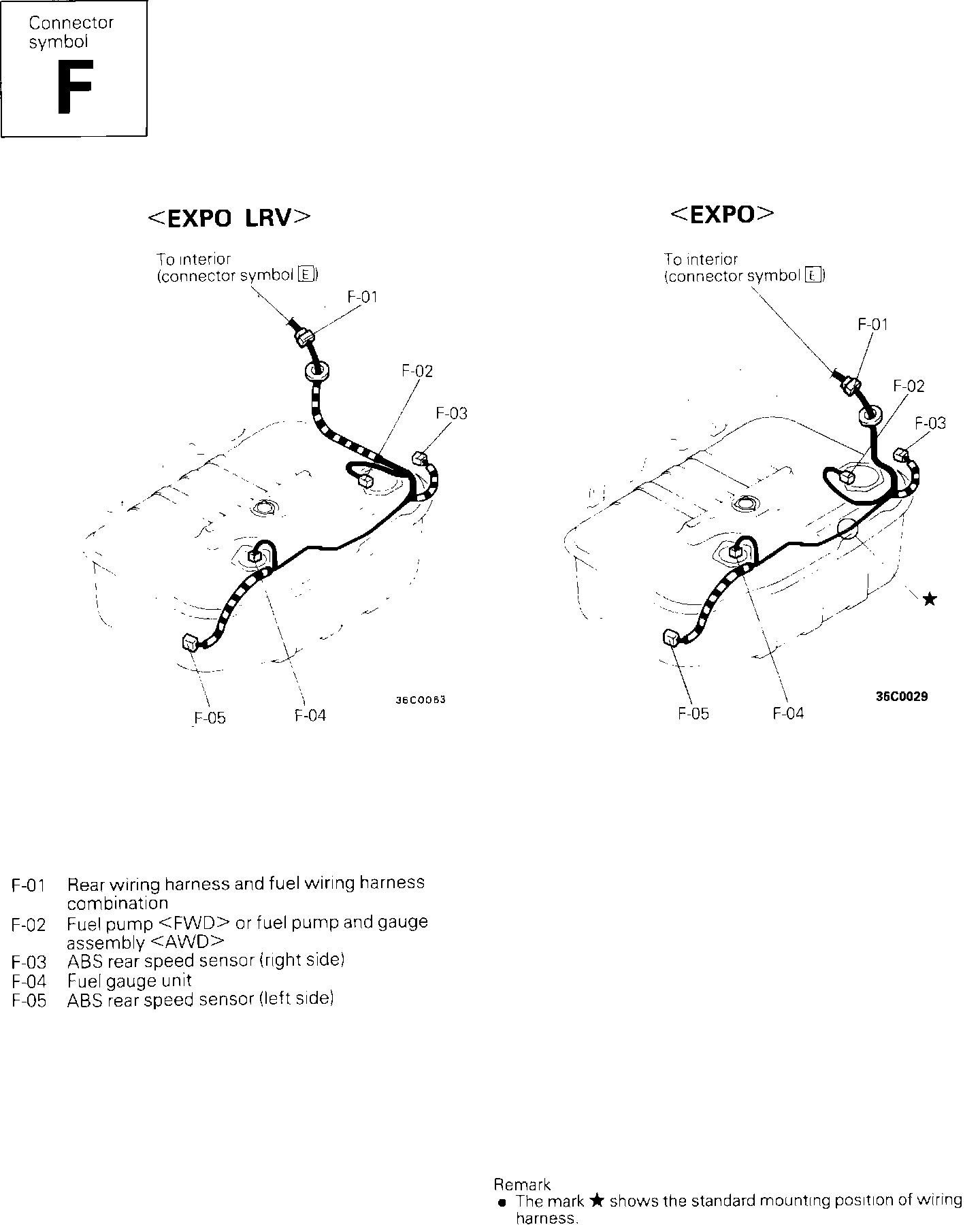

Connector Locations: Rear Under Door (F-01 Thru F-05):
