Antilock Brakes / Traction Control Systems
Antilock Brakes / Traction Control Systems

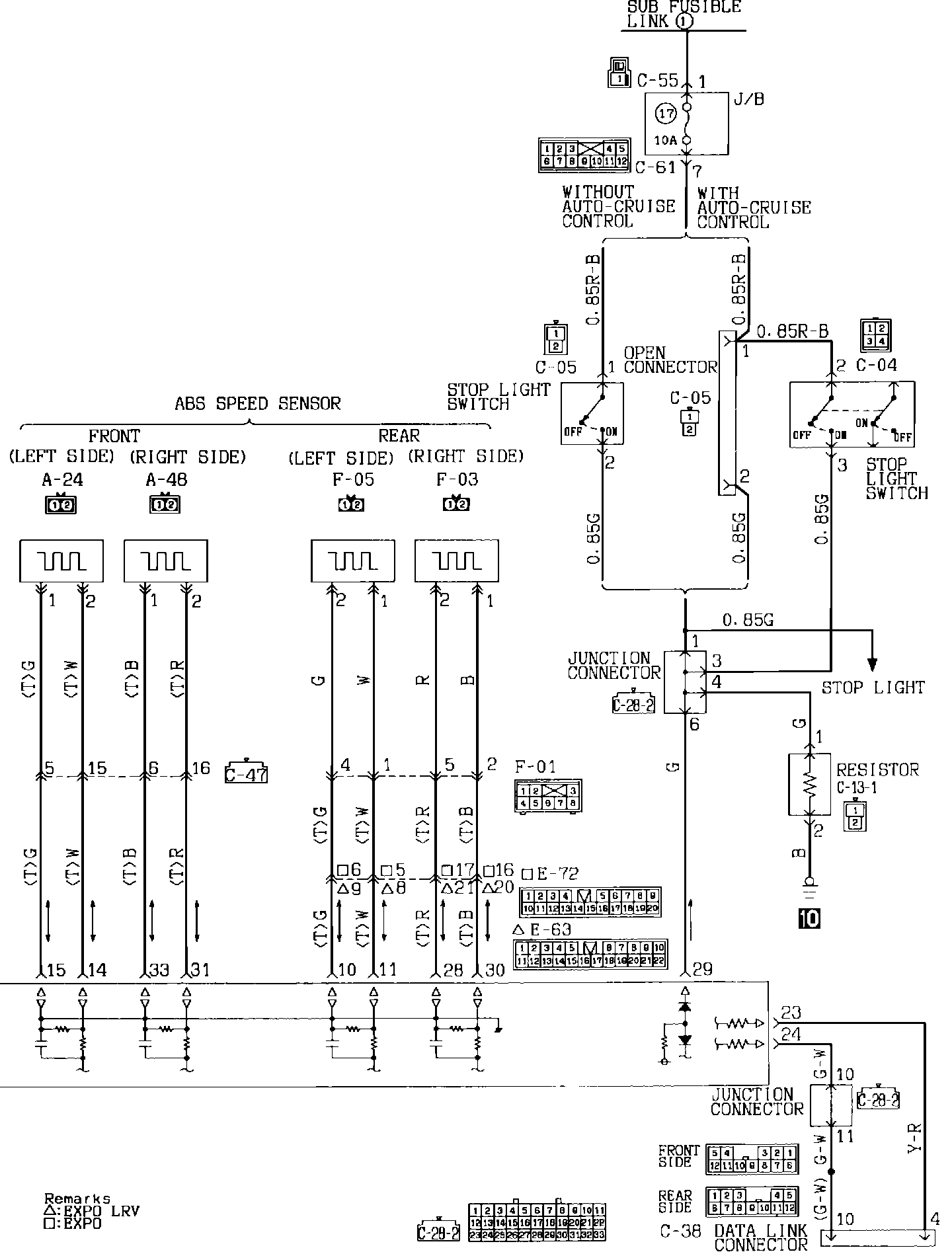

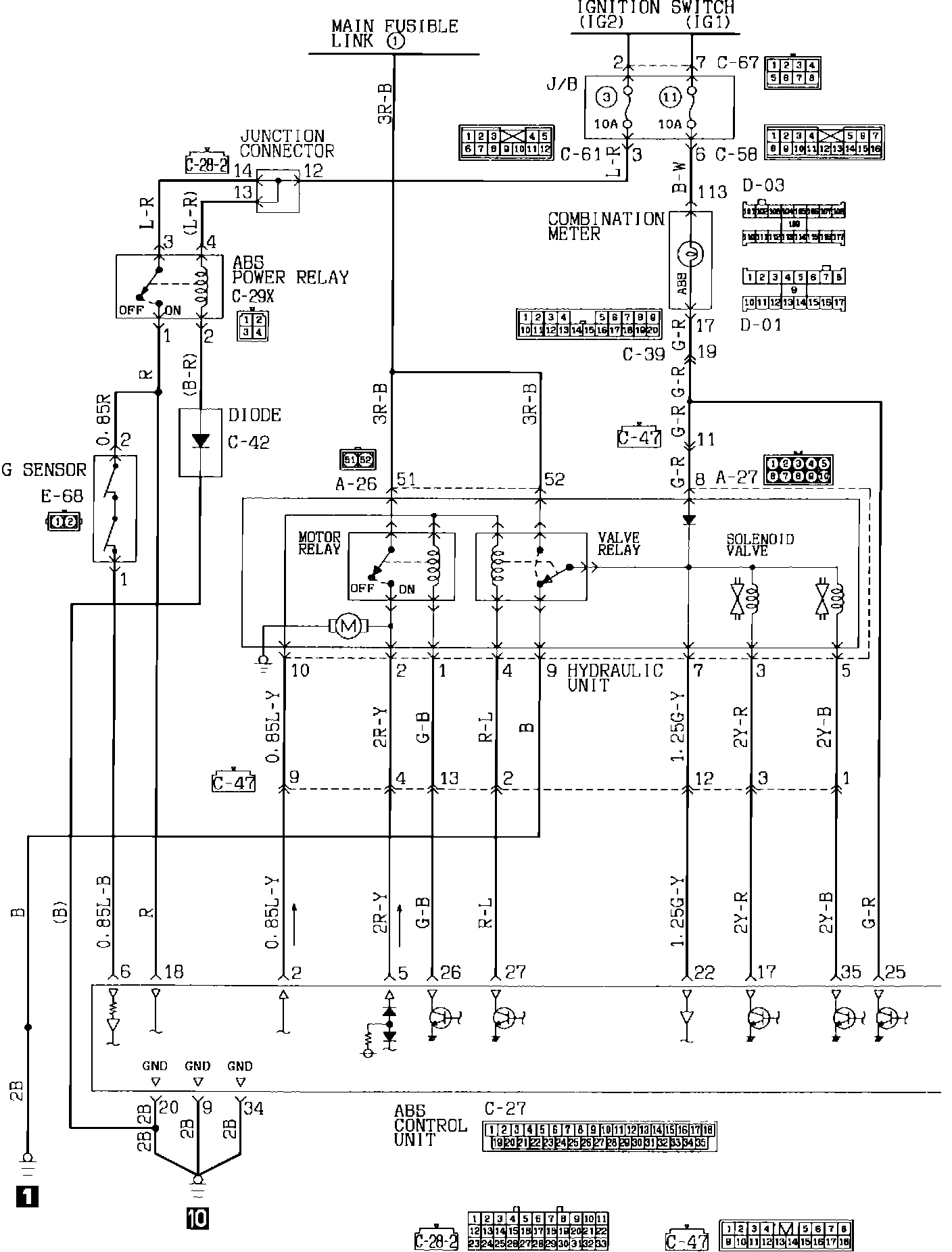

Anti-Lock Brakes (AWD):
Anti-Lock Brakes (AWD):
