Fuel Delivery and Air Induction

Circuit Diagram (1 Of 5):

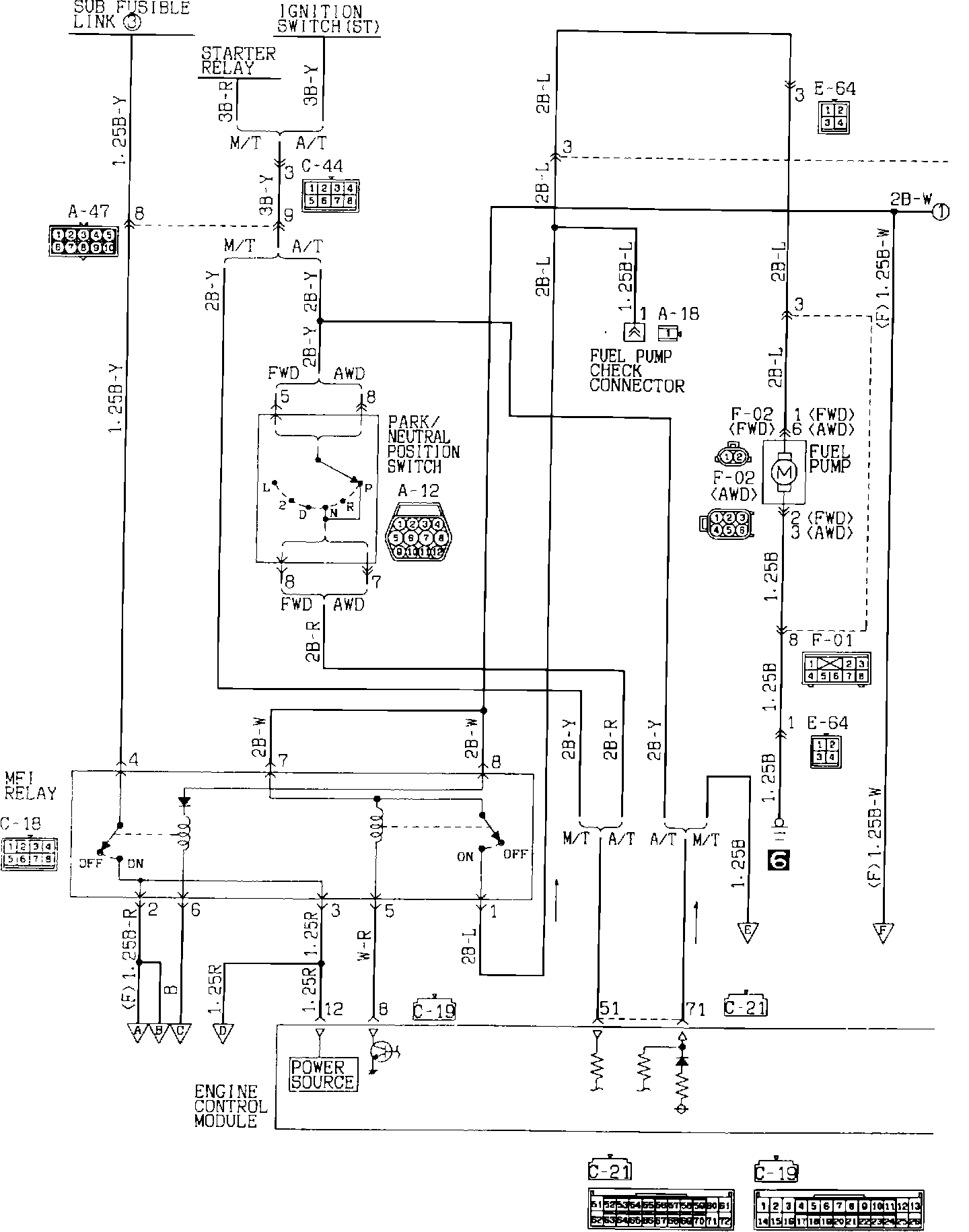

SCHEMATIC DIAGRAM 1/5

Circuit Diagram (2 Of 5):

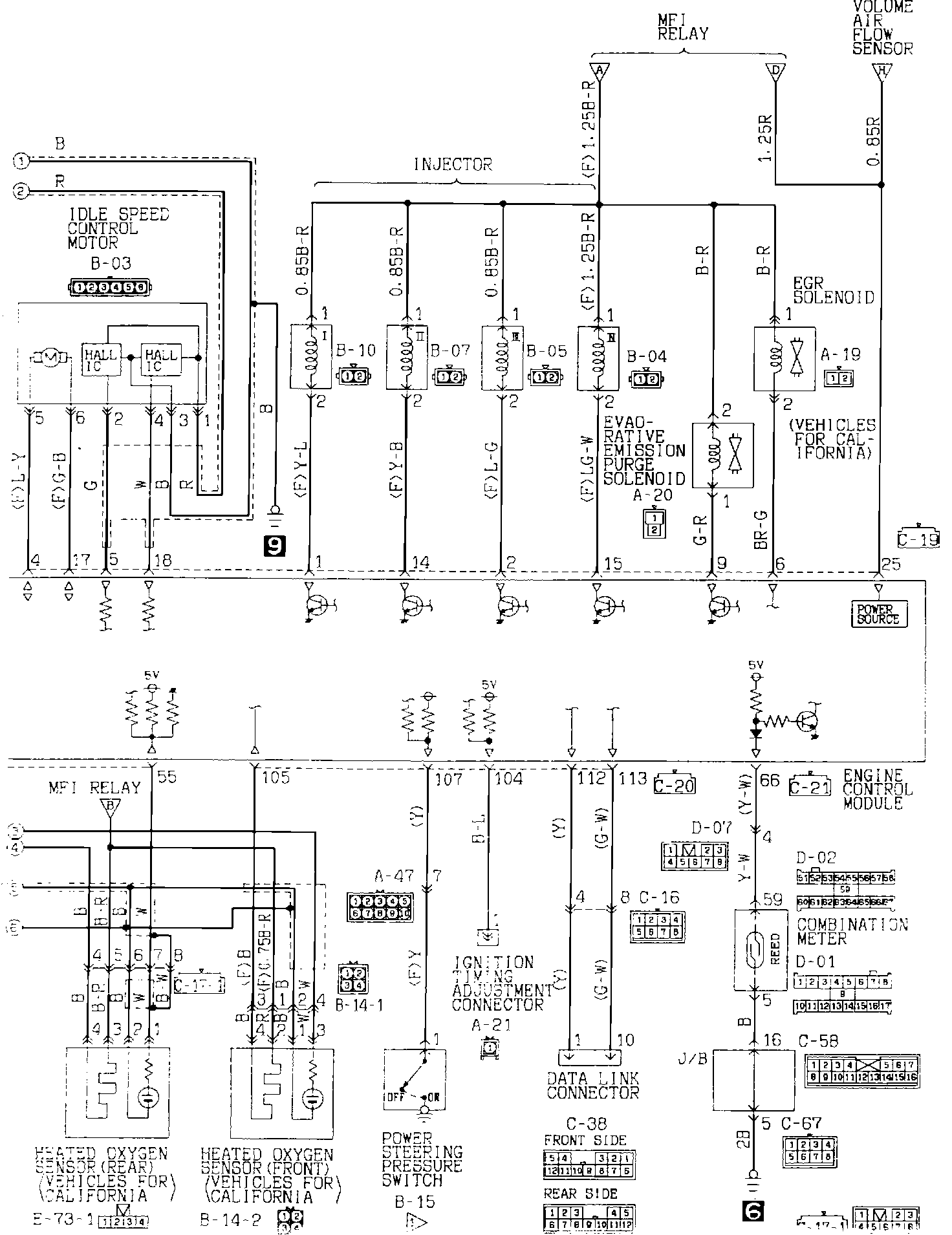

SCHEMATIC DIAGRAM 2/5

Circuit Diagram (3 Of 5):

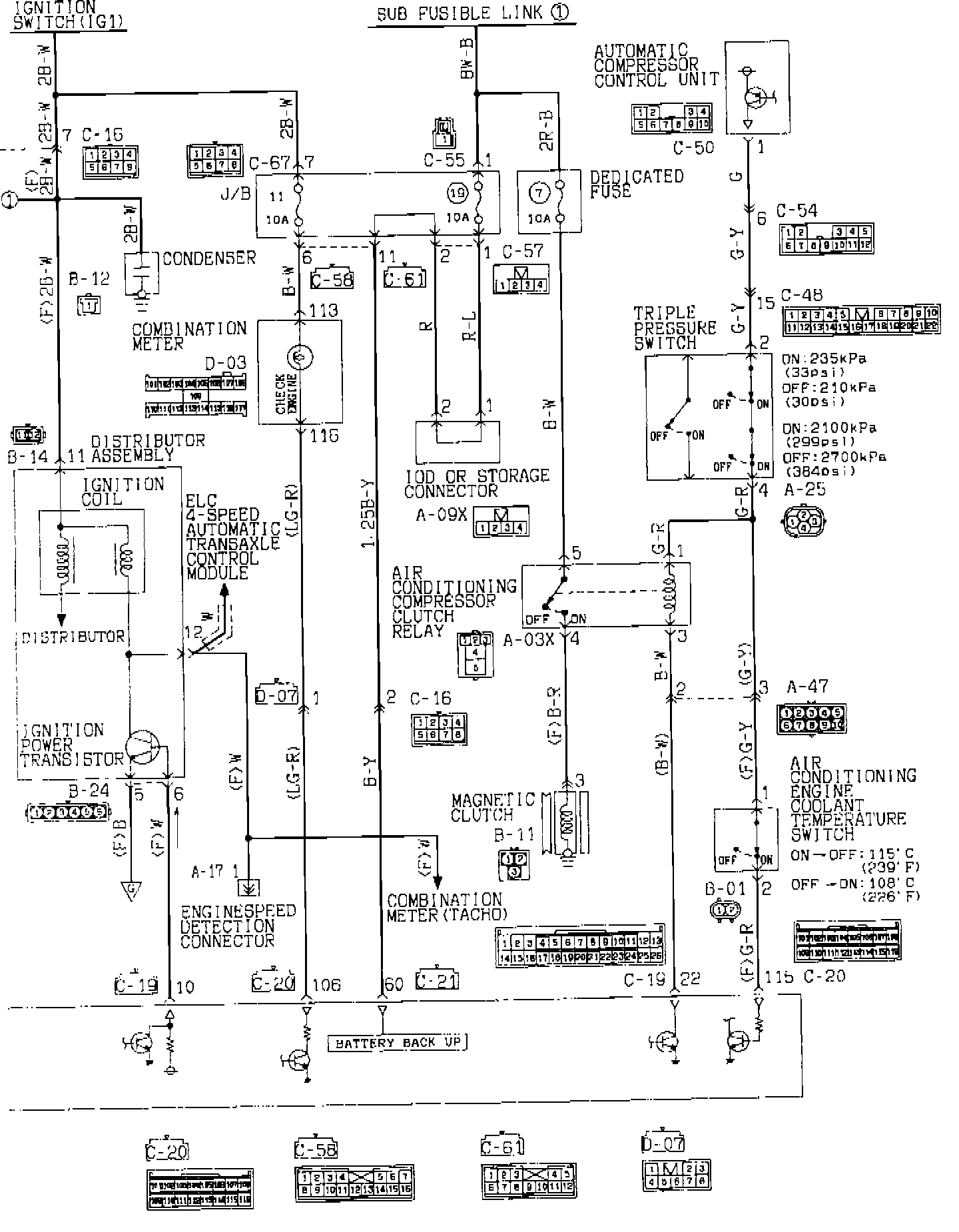

SCHEMATIC DIAGRAM 3/5

Circuit Diagram (4 Of 5):

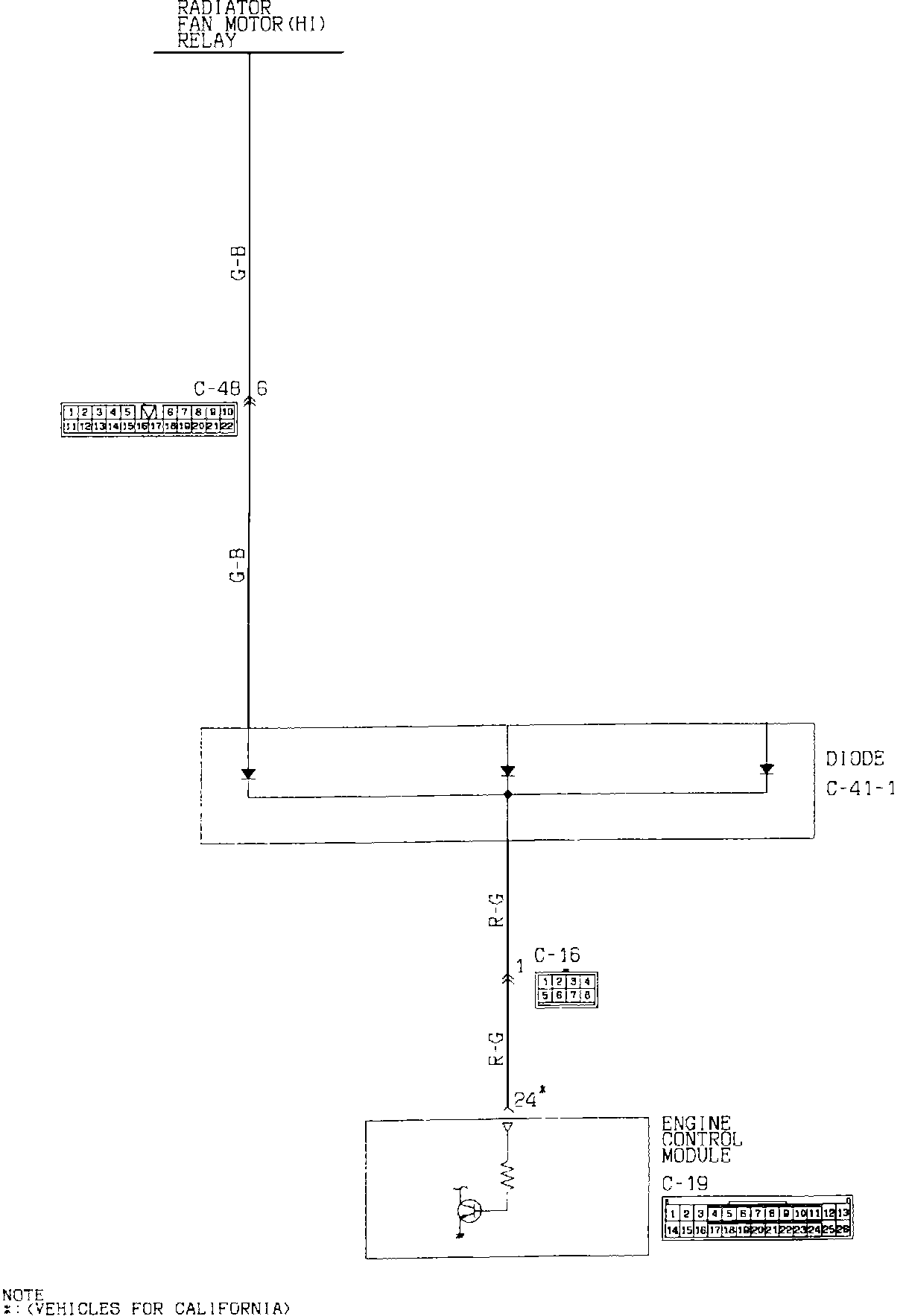

SCHEMATIC DIAGRAM 4/5

Circuit Diagram (5 Of 5):

SCHEMATIC DIAGRAM 5/5
