Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve
>>
Repair and Diagnosis
>>
Diagrams
>>
Harness
Harness

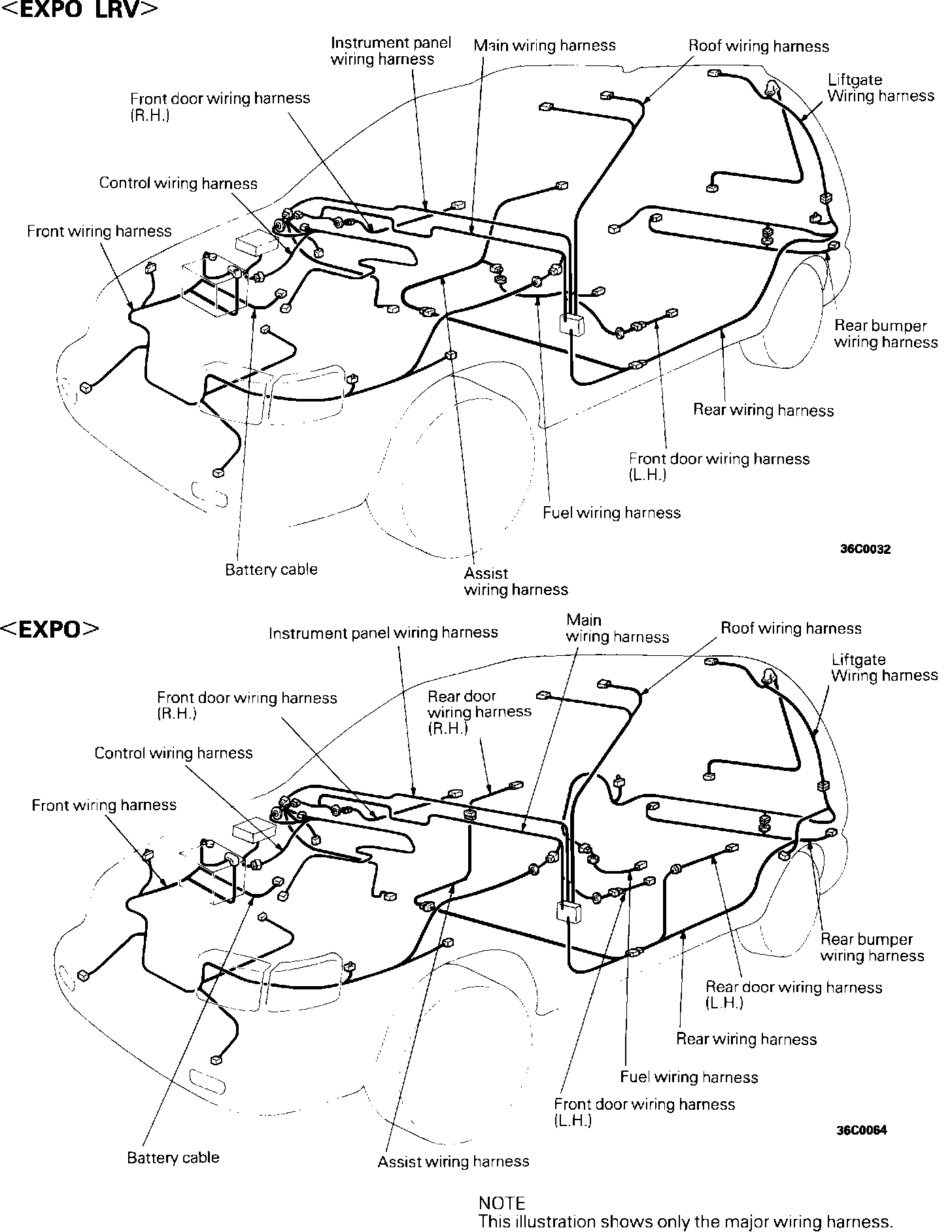

Overall Wiring Harness Routing Diagram:
