Home >> Mitsubishi >> 1993 >> Expo LRV AWD L4-1834cc 1.8L SOHC 16 Valve >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Locations

Condenser Fan Motor Relay: Locations

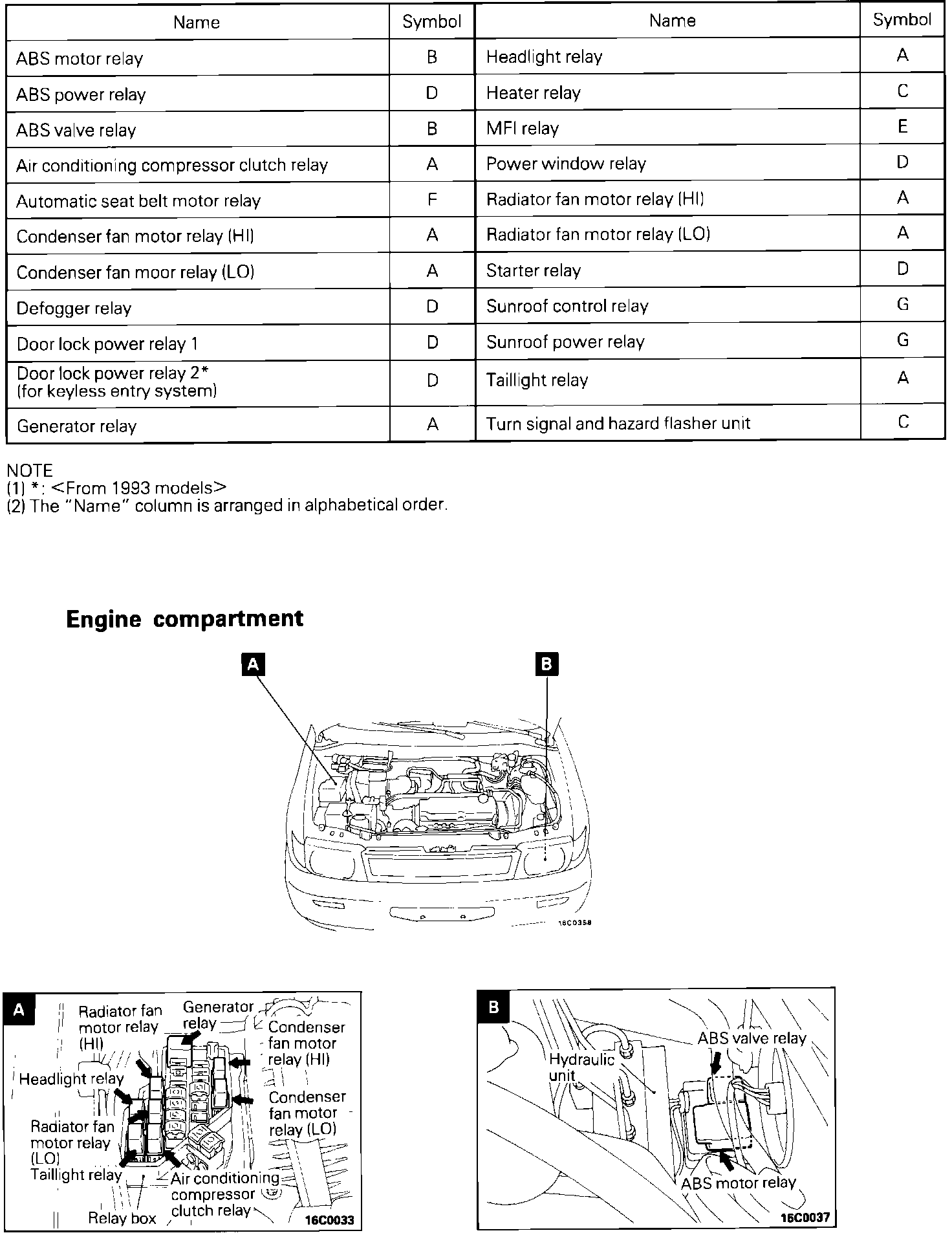

Relay Location: Engine Compartment:

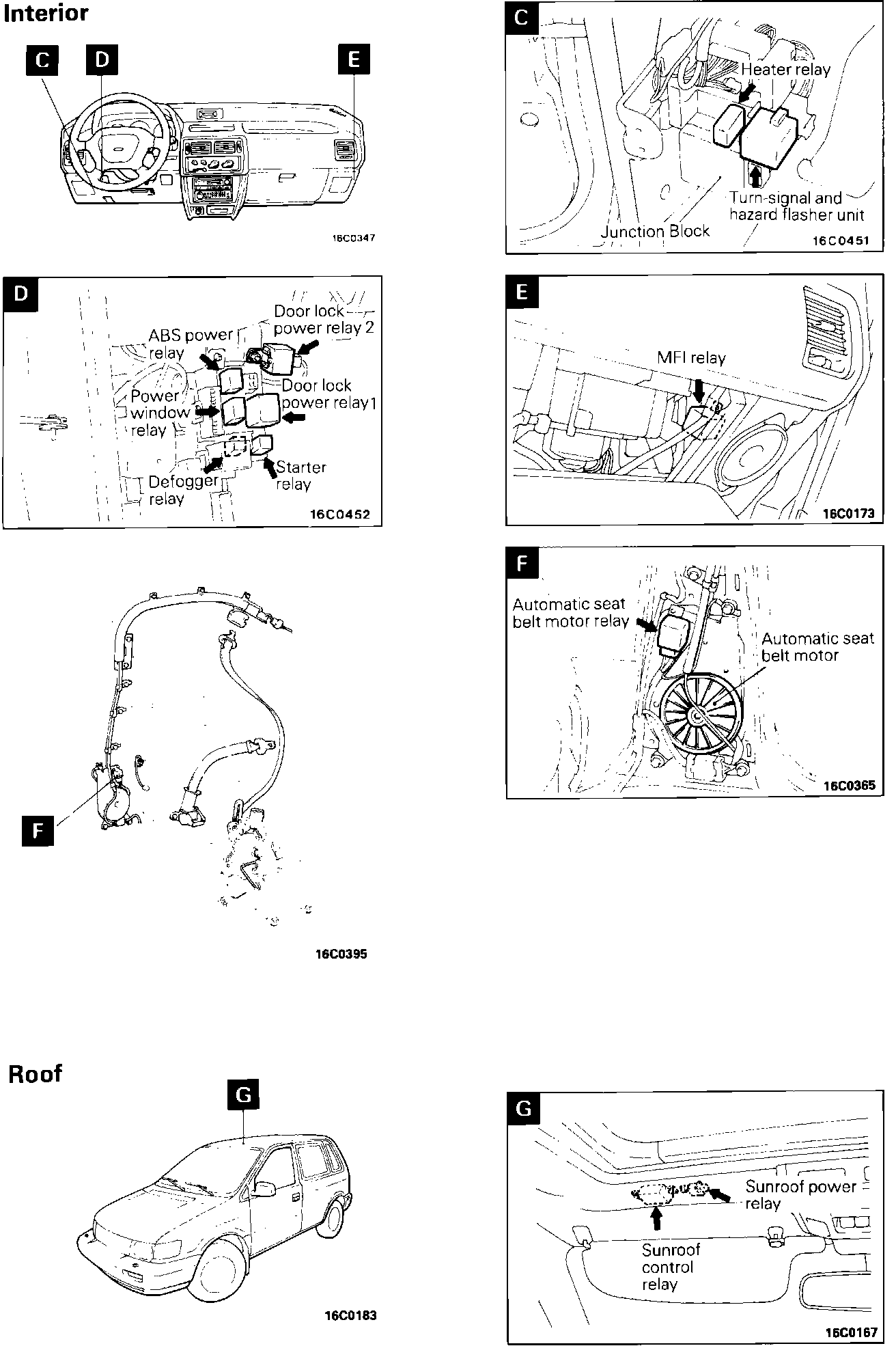

Relay Location: Interior And Roof:

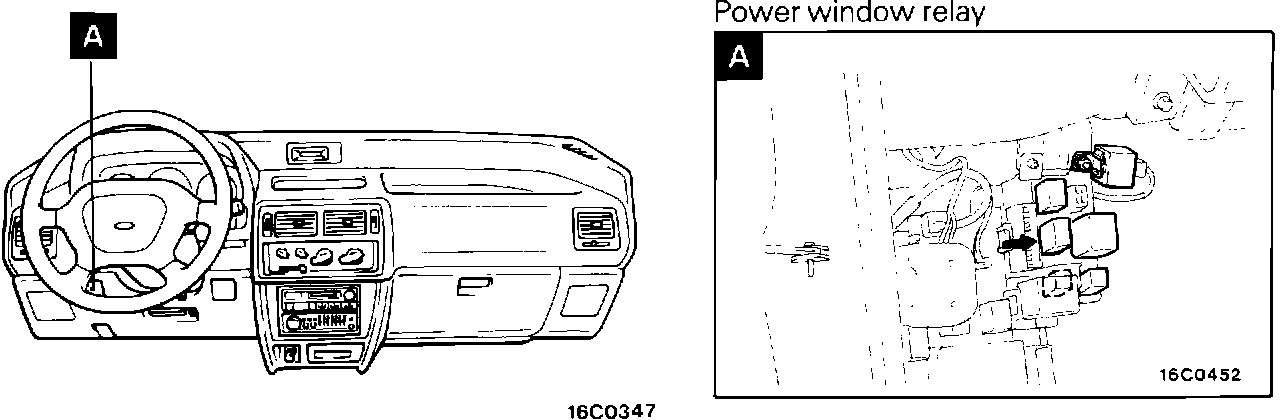

Power Windows: Component Location:
