Condenser Fan Resistor: Testing and Inspection

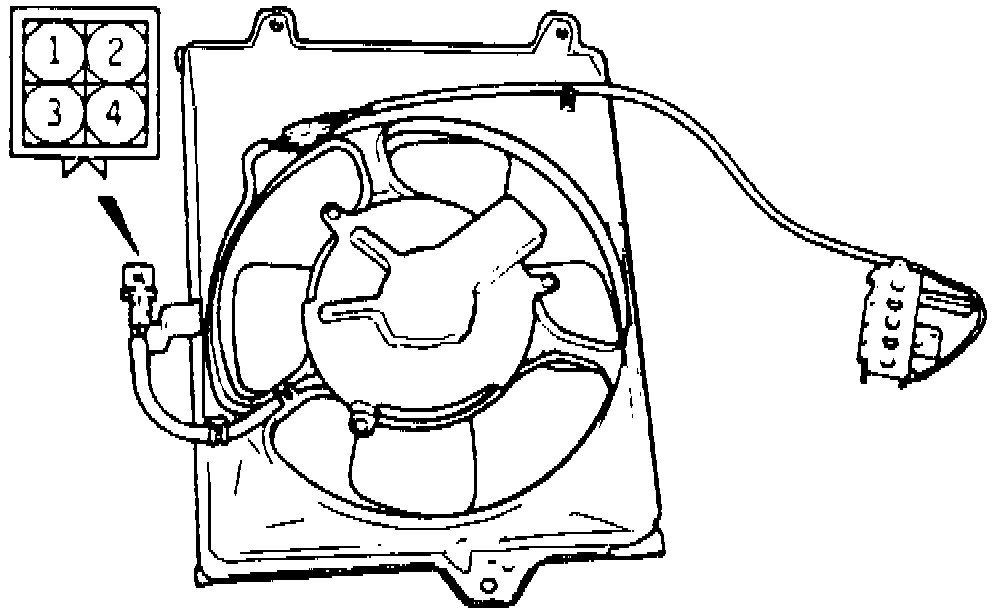

Fig. 13 Condenser Fan Motor Terminal Identification:

1. Using a suitable ohmmeter, measure resistance between terminals 2 and 4, Fig. 13.
2. If resistance is 0.29 ohms, resistor is satisfactory; if not, a new resistor should be installed.
