Heater Core Case: Service and Repair

1. Drain cooling system into a suitable container.
2. Remove floor console and instrument panel as outlined under Dash Panel.

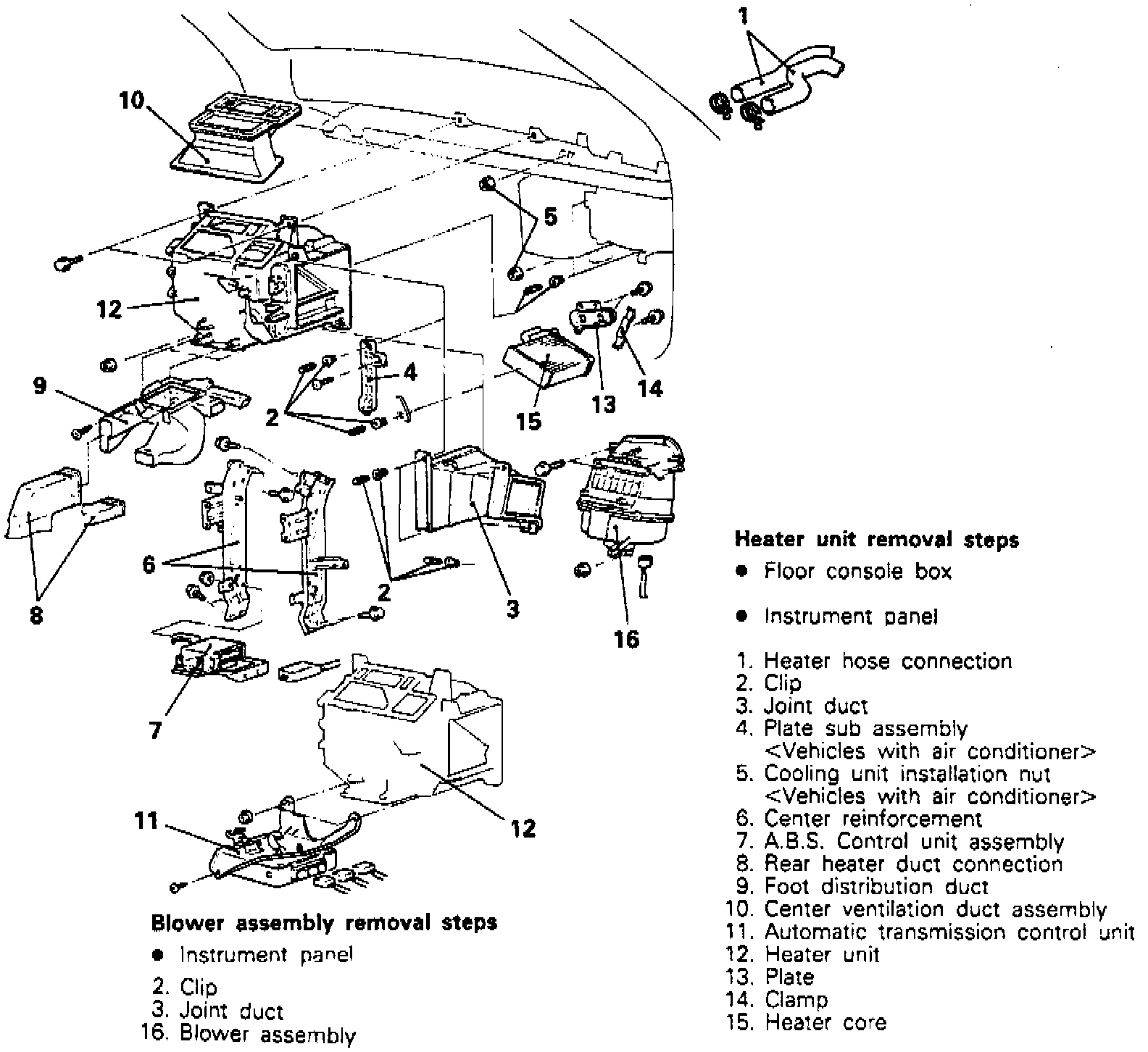

Fig. 8 Heater Core & Blower Housing Assembly Replacement:

Fig. 9 Retainer Clip Removal:

3. Remove blower motor housing assembly and heater core assembly in numbered sequence shown in Fig. 8, pushing in center of joint duct clip for removal, Fig. 9.
4. Reverse procedure to install.
