Electrical Diagrams

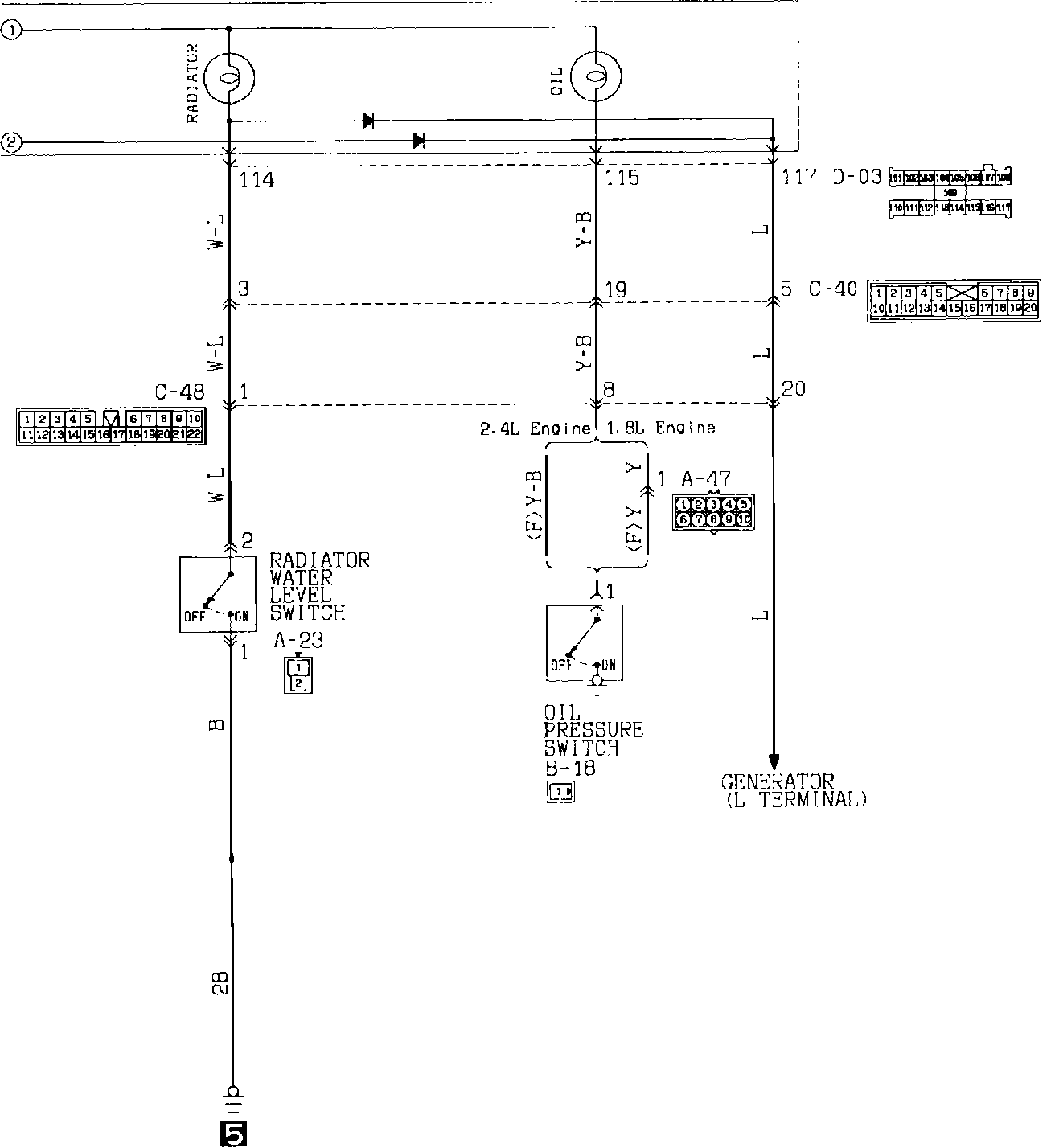

Instrument Panel: Meters And Gauges:

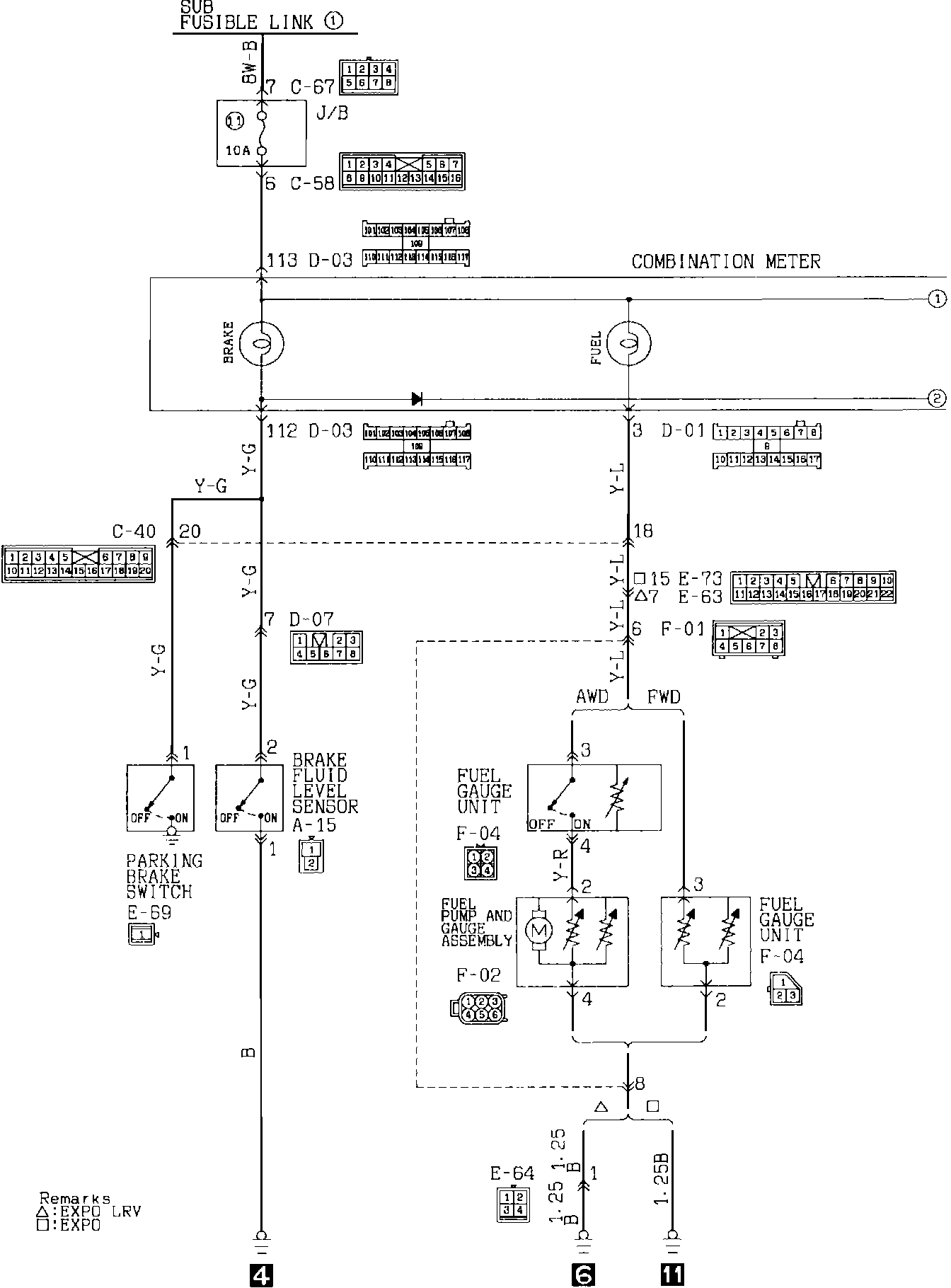

Instrument Panel: Meters And Gauges:

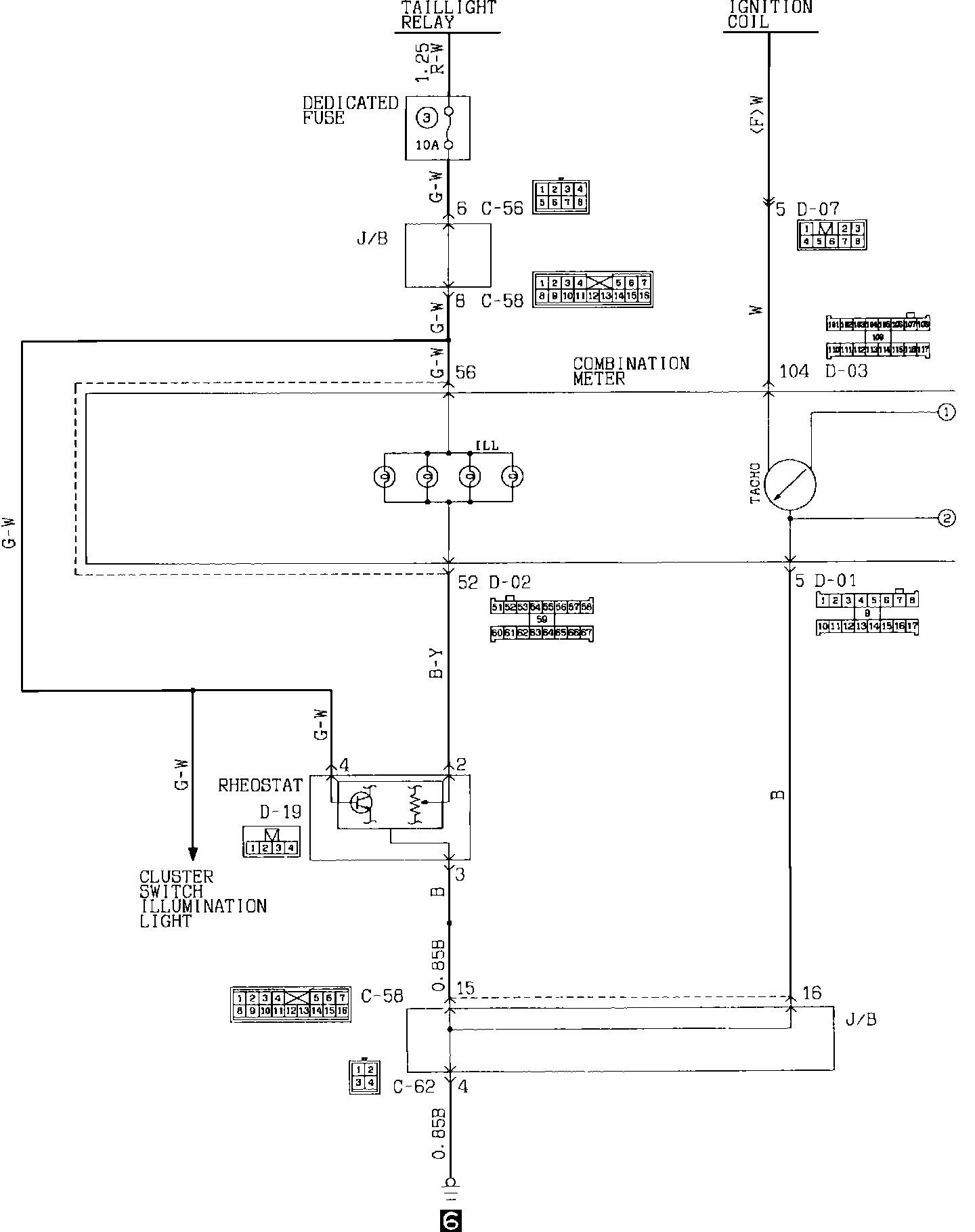

Instrument Panel: Warning Lamps:



Instrument Panel: Warning Lamps:
