Instrument Cluster / Carrier: Service and Repair

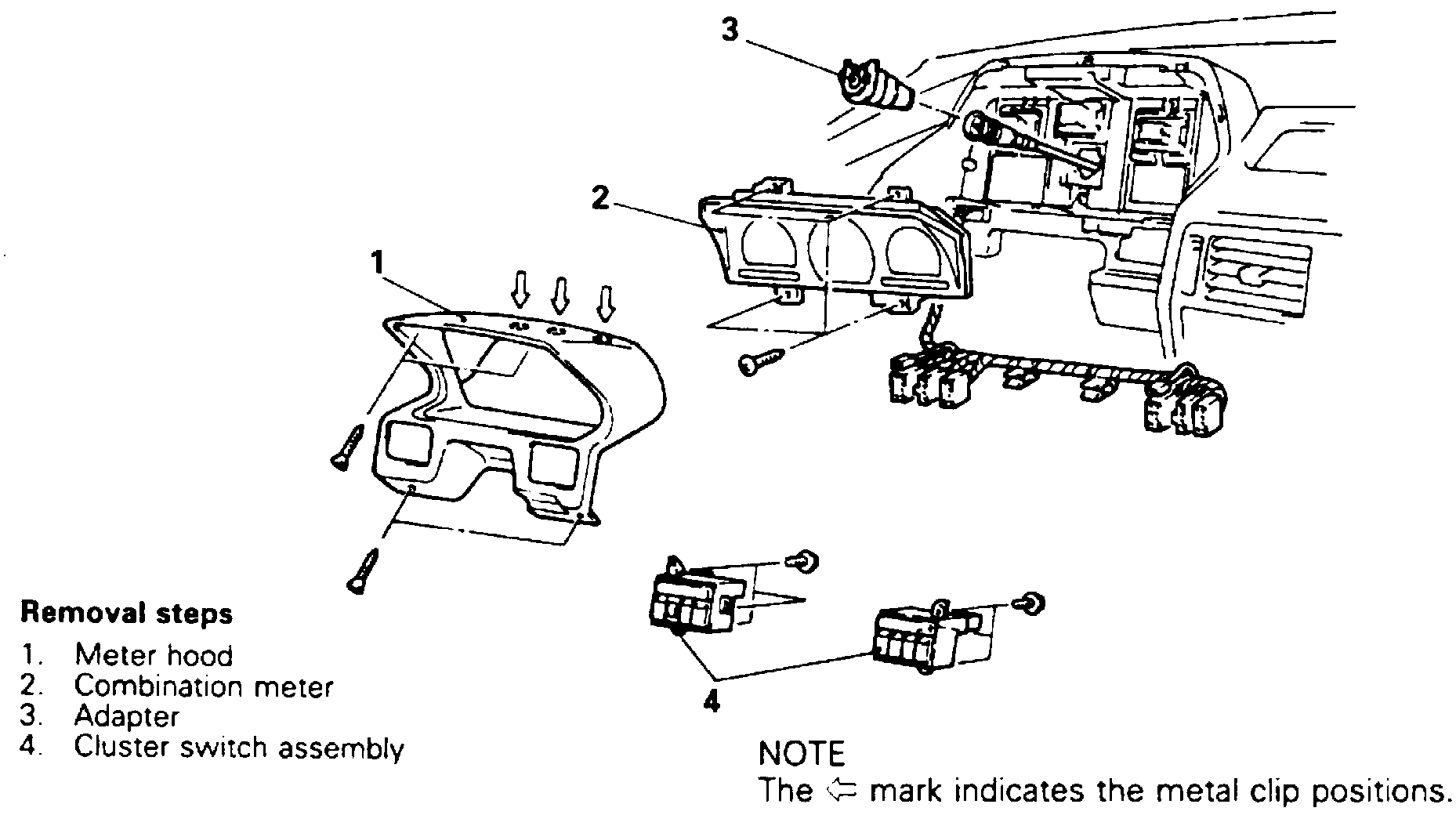

Fig. 5 Cluster Switch Removal:

1. Remove instrument cluster hood, Fig. 5.
2. Remove instrument cluster retaining screws.

Fig. 7 Speedometer Cable Adapter Lock:

3. Pull instrument cluster rearward and remove adapter lock, Fig. 7.
4. Pull speedometer cable slightly into passenger compartment and remove rear side of adapter from cable.
5. After turning adapter so that notched section is aligned with tab on cable, remove adapter by sliding it backwards.
6. Reverse procedure to install.
