A/T - Oil Pressure Test Ports Service Manual Revision
NO.: TSB-93-23-008DATE: November, 1993
MODEL: 1992-1994 Expo/Expo LRV
SUBJECT:
OIL PRESSURE TEST PORTS
SERVICE MANUAL CORRECTION
TSB Revision: TSB-93-23-008
PURPOSE
This bulletin corrects the FWD transaxle oil pressure test port illustration shown in the 1992-1994 Expo/Expo LRV service manual. The correct location of the Torque Converter test port is next to the reducing pressure test port. If the incorrect test port is used during automatic transaxle diagnosis, inaccurate reading will result.
Please make the indicated service manual revision, and as reference to this TSB, please write this TSB number in the TSB revision box on the affected service manual page.
SERVICE MANUAL REVISION

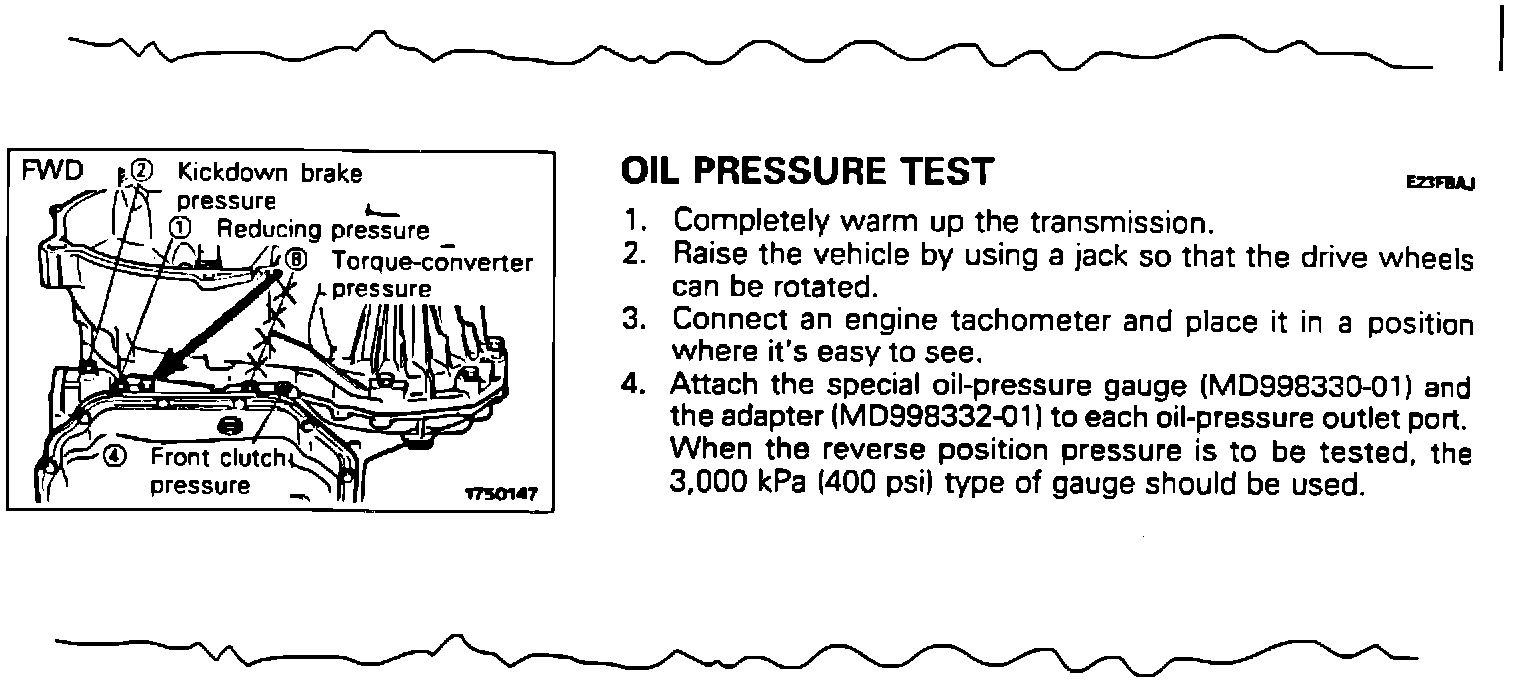

1992-1994 Expo/Expo LRV, Volume 1, page 23-36
As shown above please redraw the Torque Converter pressure arrow to the indicated position (next to the reducing pressure) and cross out the old arrow.
