Antilock Braking System - Manual Revision
NO.: TSB-96-35-006DATE: June, 1996
MODEL: 1992-95 Expo/Expo LRV
SUBJECT:
ANTI-LOCK BRAKING SYSTEM SERVICE MANUAL REVISION
PURPOSE
This bulletin is issued to correct errors in effective dates for anti-lock braking system circuit diagrams for the 1992-95 Expo/Expo LRV.
AFFECTED SERVICE MANUALS
1992-96 Expo/Expo LRV, Vol. 2, Pages 7, 432, 434, 436, 438, 444, 446, 448, 450, 452
SERVICE MANUAL REVISION
Write the TSB number in the "TSB Revision Box" at the bottom of each affected service manual page.
CORRECTIONS
The Service Manual corrections are shown in this bulletin.

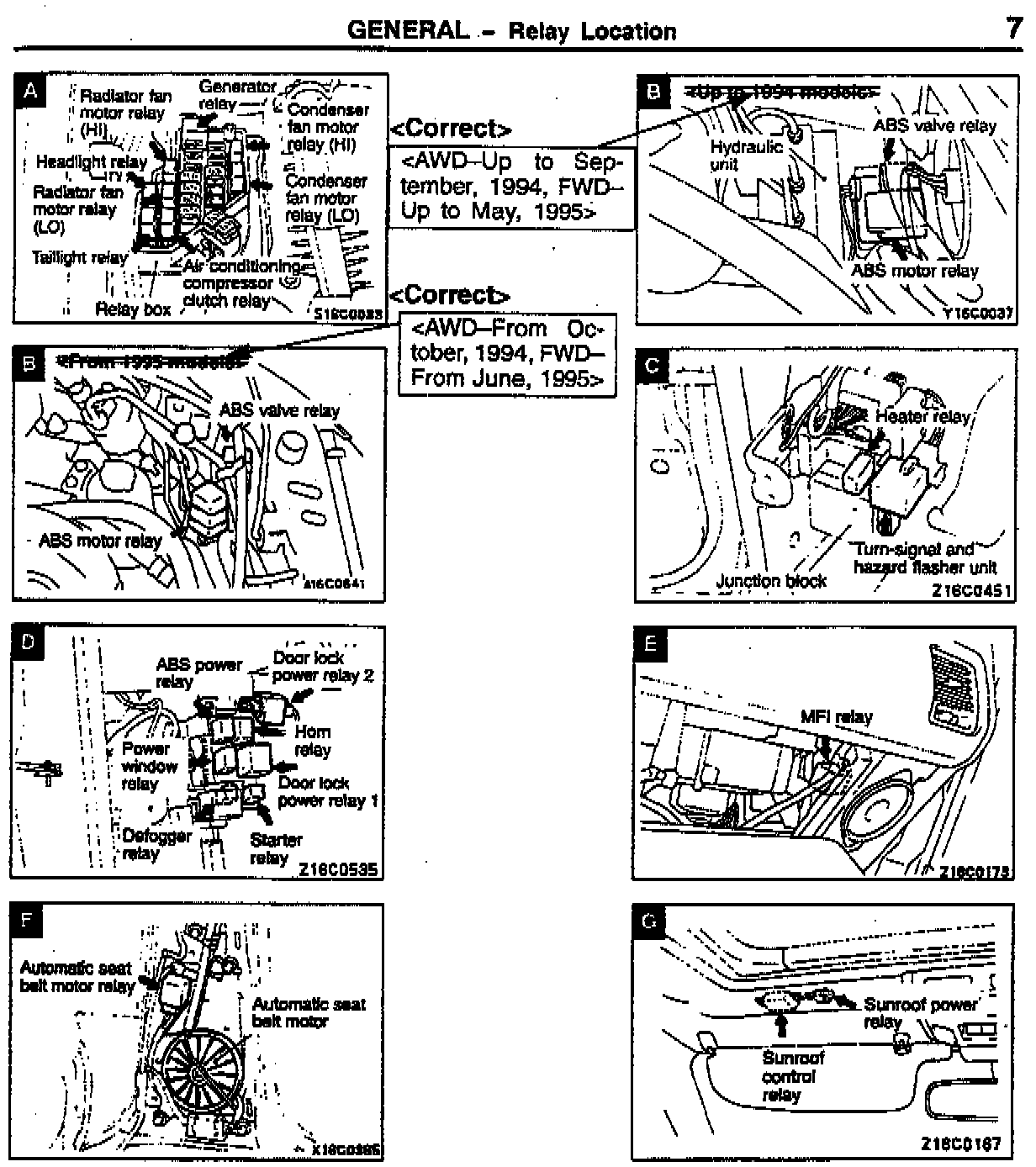

1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 7
Correct the existing illustration "B" for the ABS Valve Relay and Motor Relay to include vehicles built up to September, 1994 and FWD vehicles built up to May, 1995. Add an illustration to show locations for the ABS Valve Relay and Motor Relay on AWD vehicles from October 1994 and FWD vehicles from June, 1995:
ANTI-LOCKING BRAKING SYSTEM (ABS)

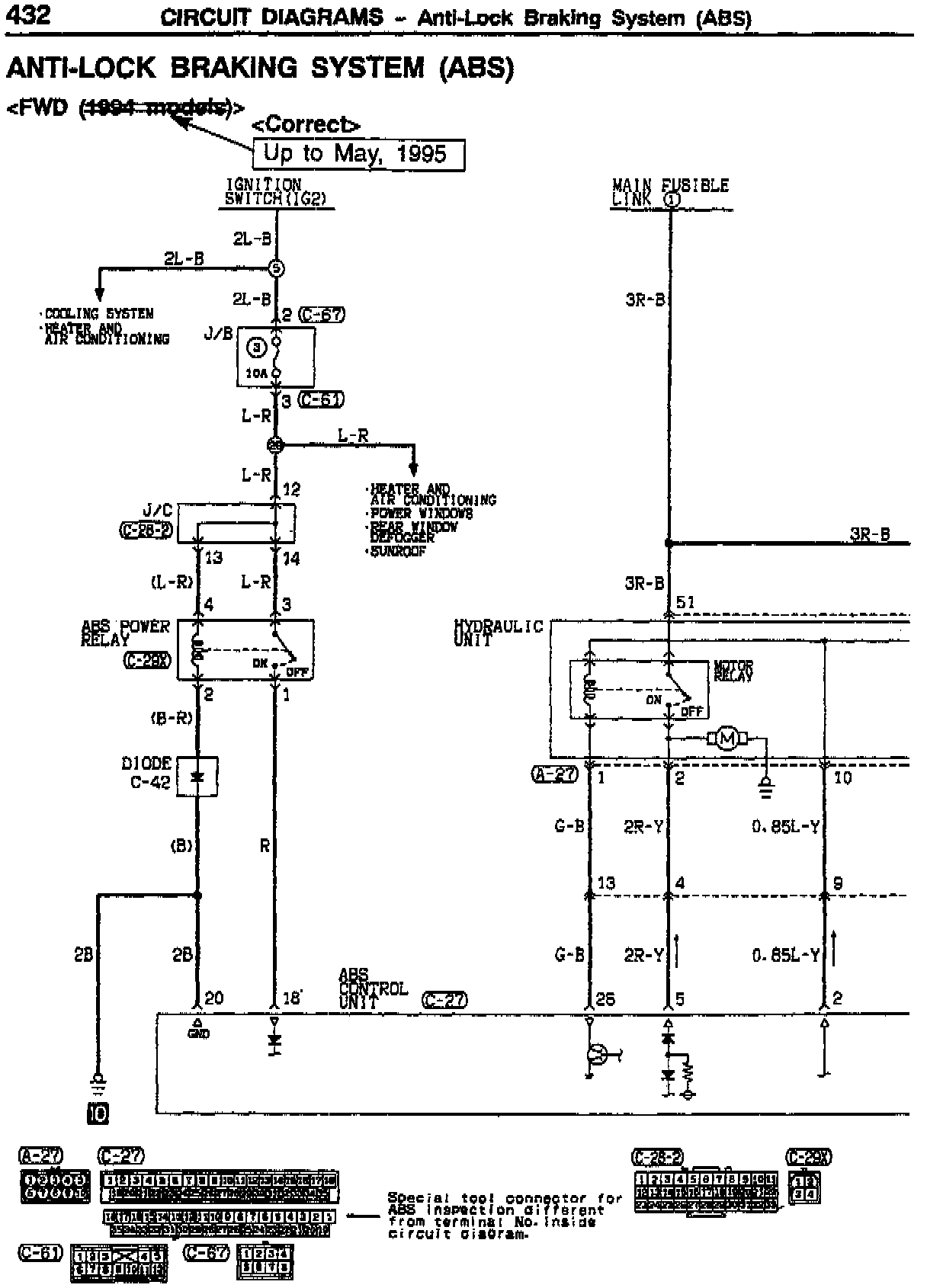

1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 432
Correct the FWD system applicability to include vehicles built up to May, 1995.
ANTI-LOCKING BRAKING SYSTEM (ABS)

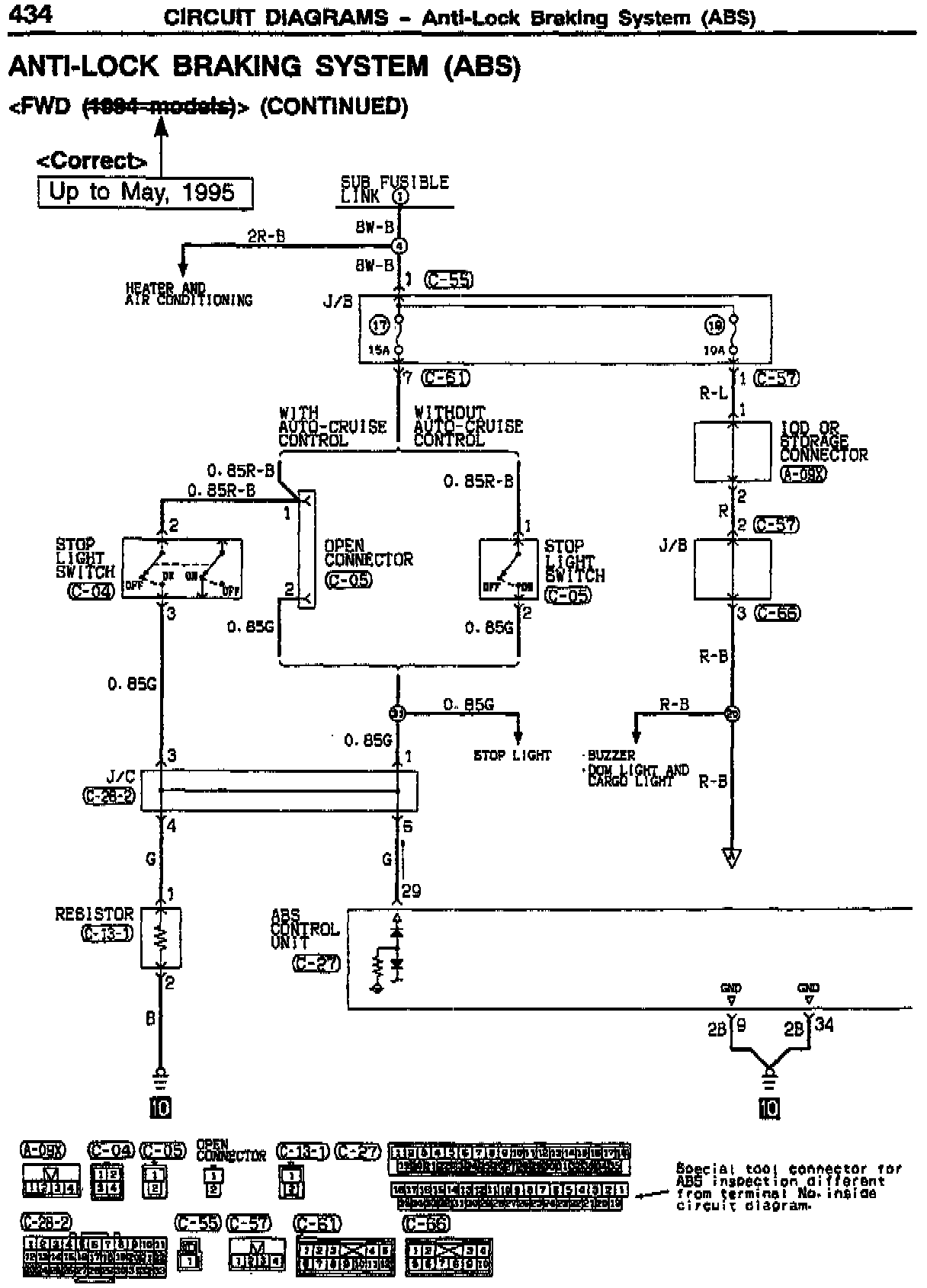

1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 434
Correct the FWD system applicability to include vehicles built up to May, 1995.
ANTI-LOCKING BRAKING SYSTEM (ABS)

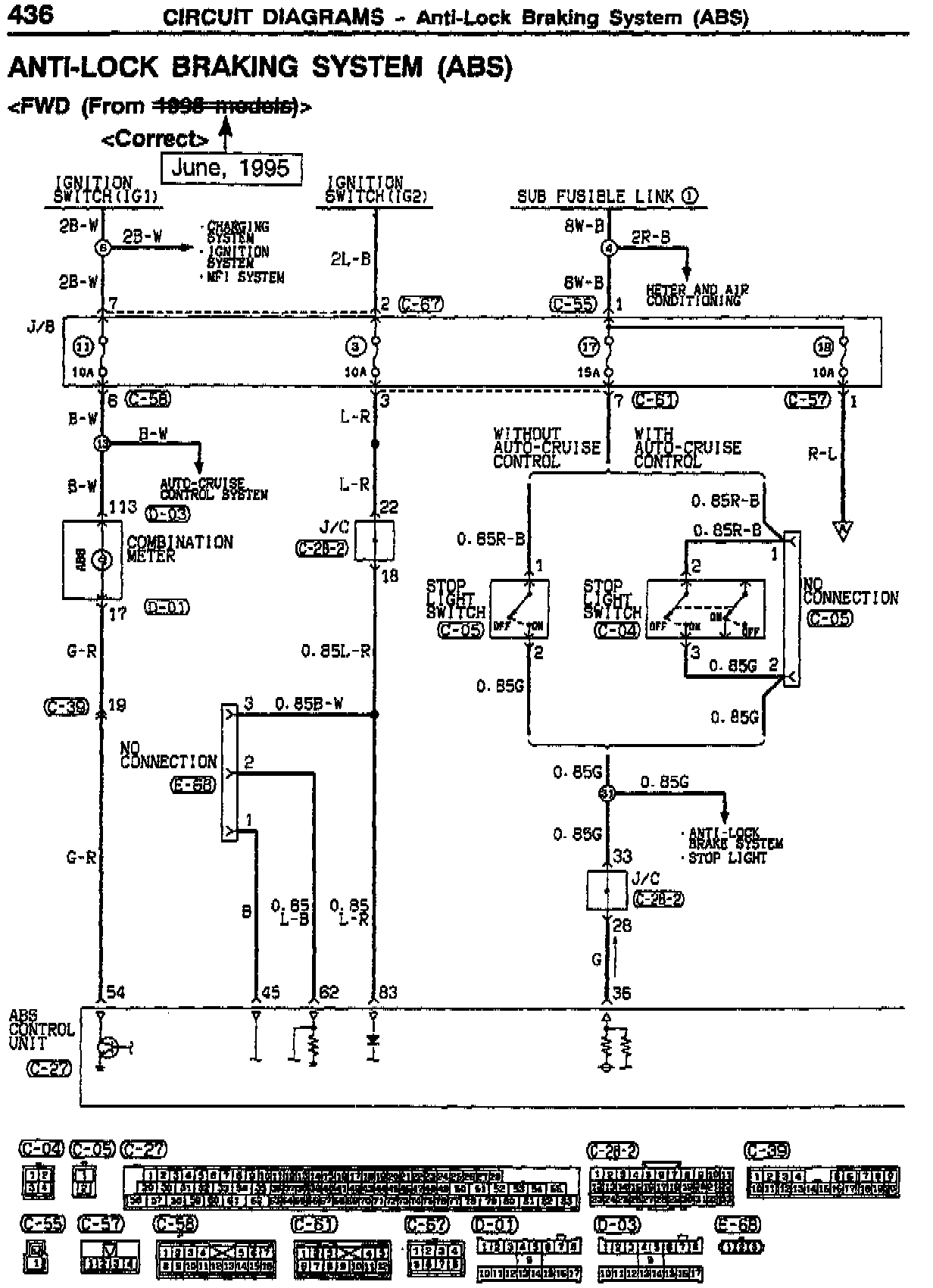

1992-96 Expo/Expo LRV Service Manual Vol. 2, Page 436
Correct the system applicability to include FWD vehicles built from June, 1995.
ANTI-LOCKING BRAKING SYSTEM (ABS)

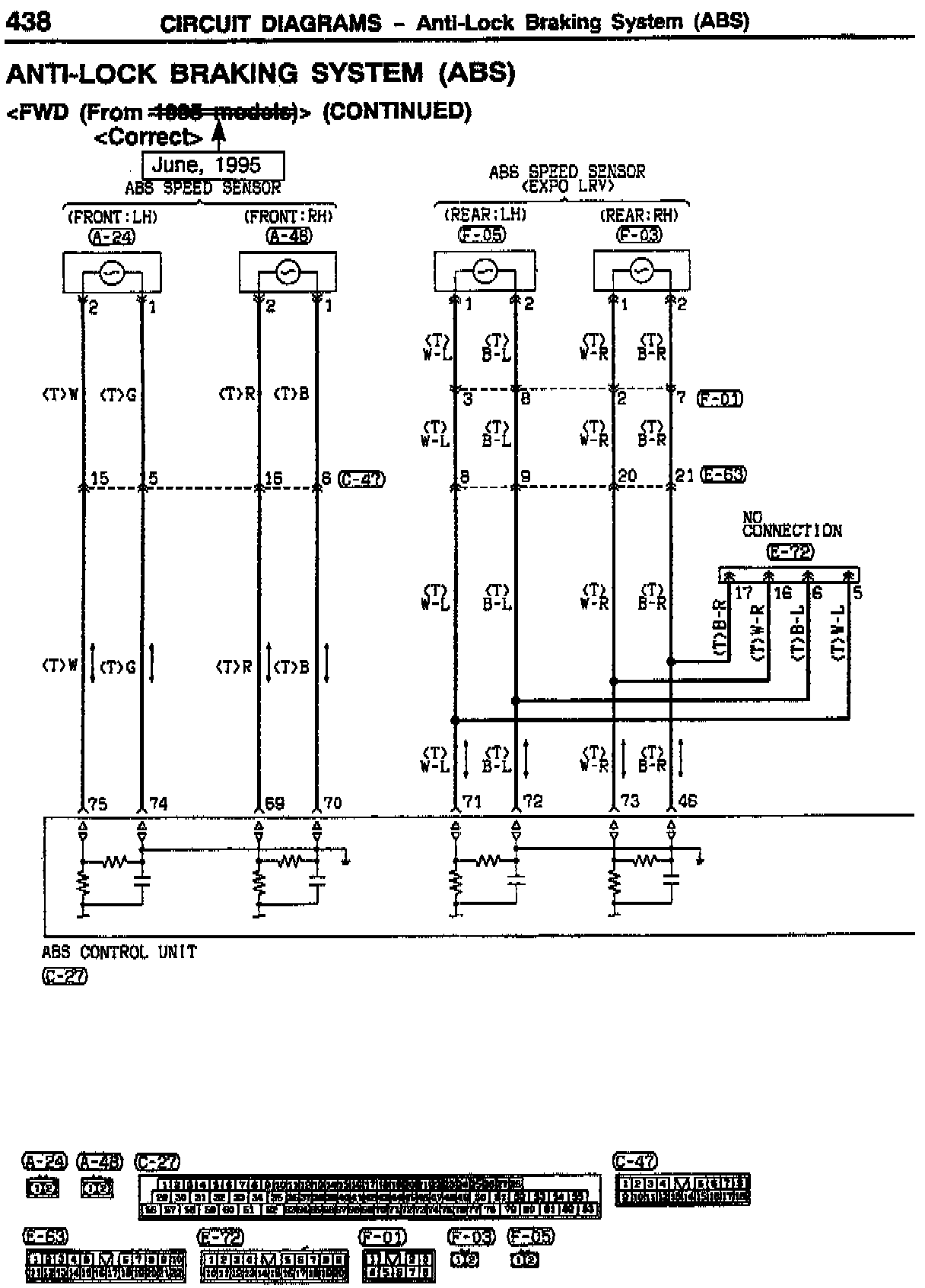

1992-96 Expo/Expo LRV Service Manual Vol. 2, Page 438
Change the applicability of the circuit diagram to include FWD vehicles built from June, 1995.
ANTI-LOCK BRAKING SYSTEM (ABS)
1992-96 Expo/Expo LRV Service Manual Vol 2, Page 444
Correct the applicability statement to include vehicles built up to September, 1994.
ANTI-LOCK BRAKING SYSTEM (ABS)

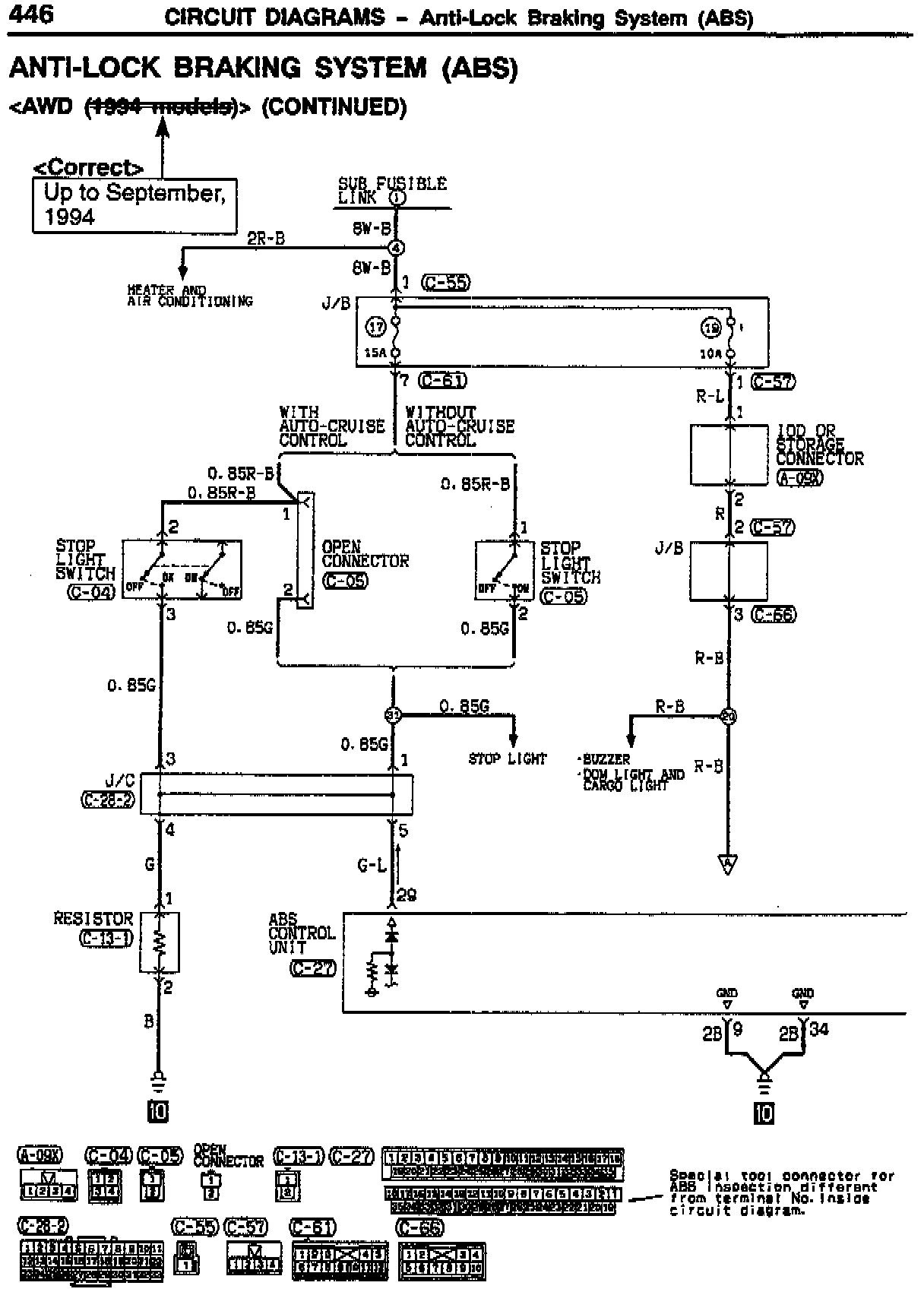

1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 446
Change the applicability statement to include vehicles produced up to September, 1994.
ANTI-LOCK BRAKING SYSTEM (ABS)

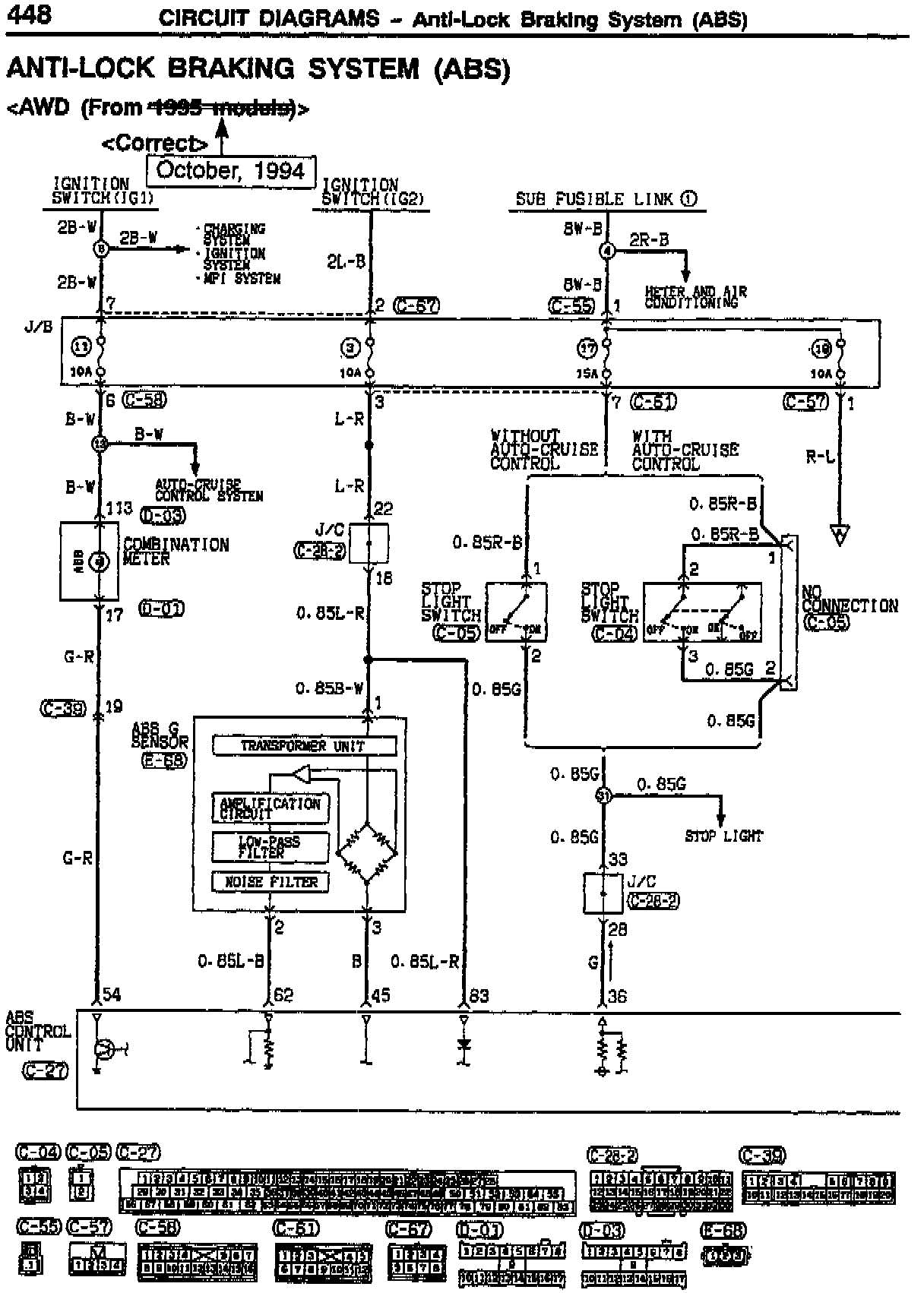

1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 448
Change the applicability of the circuit diagram to include AWD vehicles built from October, 1994.
ANTI-LOCK BRAKING SYSTEM (ABS)
1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 450
This is a continuation of the circuit diagram from Page 448.
COMPONENT LOCATION
1992-96 Expo/Expo LRV Service Manual, Vol. 2, Page 452
Correct the existing illustration A for the ABS Valve Relay and Motor Relay to include AWD vehicles built up to September, 1994 and FWD vehicles built up to May, 1995. Add an illustration to show locations for the ABS Valve Relay and Motor Relay on AWD vehicles from October 1994 and FWD vehicles from June, 1995.
