Antilock Braking System - Service Manual Revision
NO.: TSB-96-35-007DATE: June, 1996
MODEL: 1992-95 Expo/Expo LRV
SUBJECT:
ANTI-LOCK BRAKING SYSTEM - SERVICE MANUAL REVISION
PURPOSE
This bulletin is issued to correct errors in effective dates for anti-lock braking system circuit diagrams for the 1992-95 Expo/Expo LRV vehicles.
SERVICE MANUAL REVISION
Write the TSB revision number of this bulletin in the "TSB Revision Box" at the bottom of the affected service manual pages.
AFFECTED SERVICE MANUALS
1992-96 Expo/Expo LRV, Vol. 1, 35-1, 35-4 thru 35-7, 35-11 thru 35-70, 35-85, 35-87, 35-88, 35-98, 35-99, 35-114 thru 118, 35-124, 35-125
CORRECTIONS
Correct the model build date application as shown.

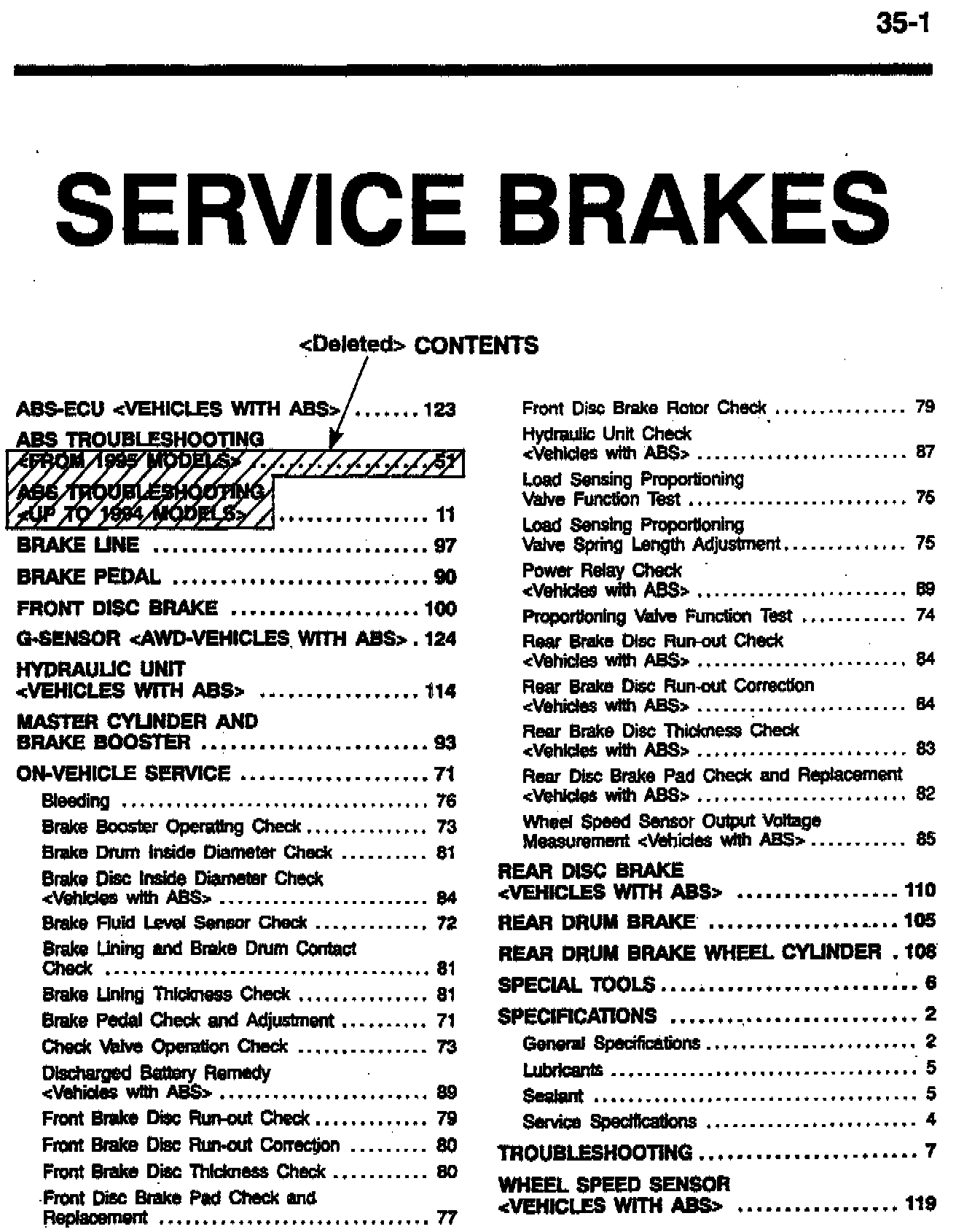

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-1
The Table Of Contents is corrected as shown.

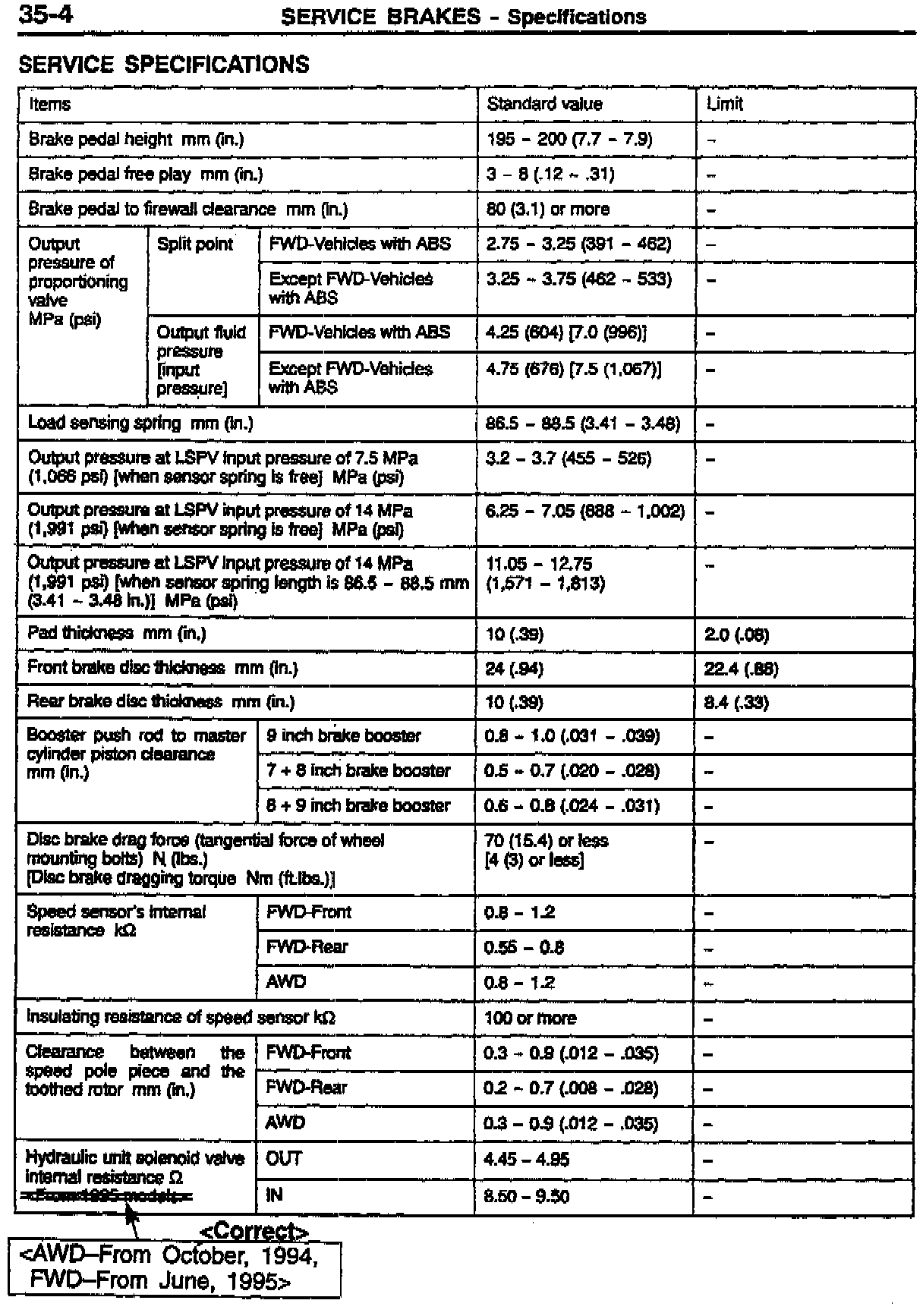

1992-96 Expo/Expo LRV Service Manual, Vol 1, Page 35A
The hydraulic unit solenoid valve internal resistance applicability is changed.

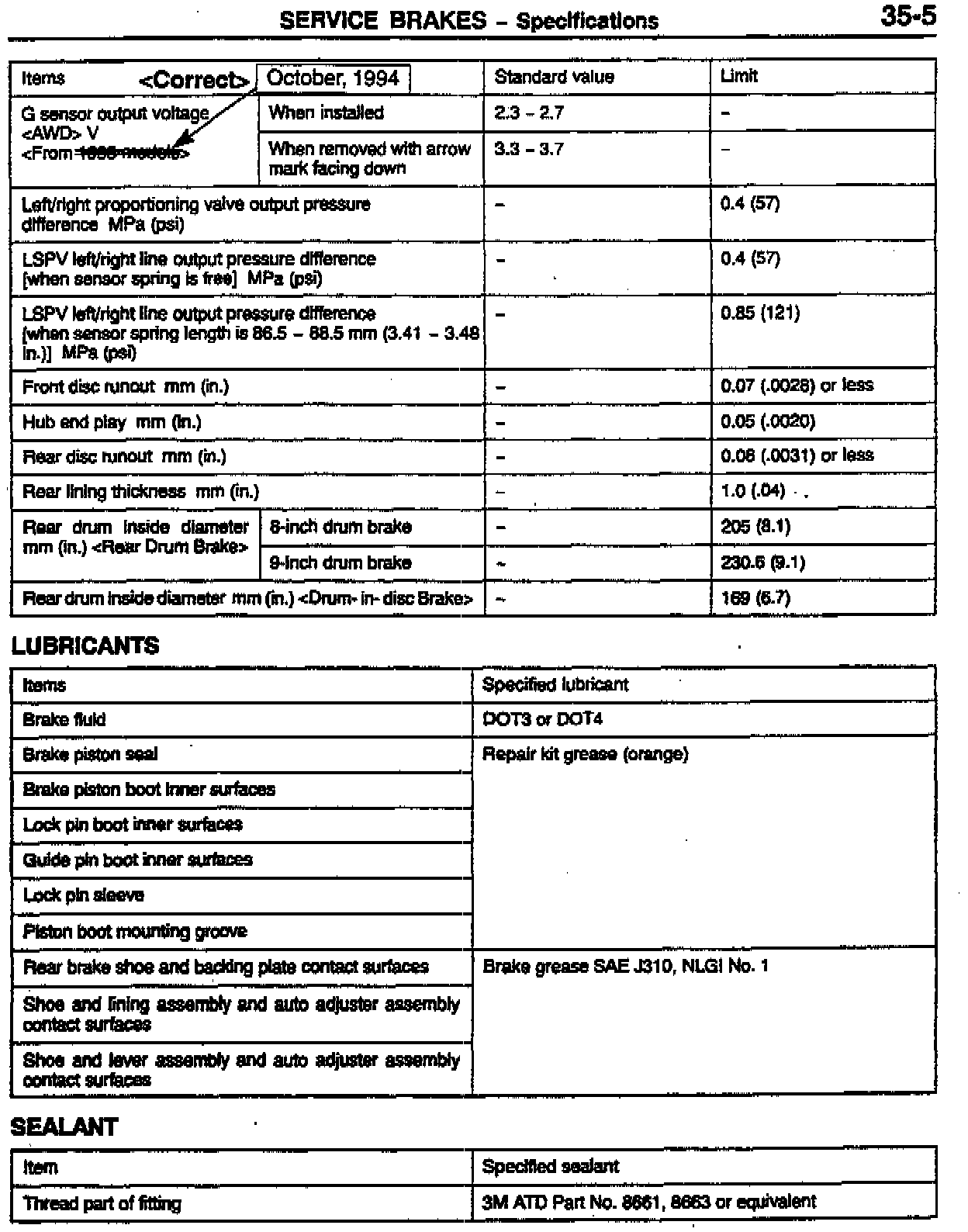

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-5
The G-sensor output voltage applicability is changed.
1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-6
The applicability of the Adapter Harnesses is changed as shown.
1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-7
The applicability of the Adapter Harnesses is changed as shown.

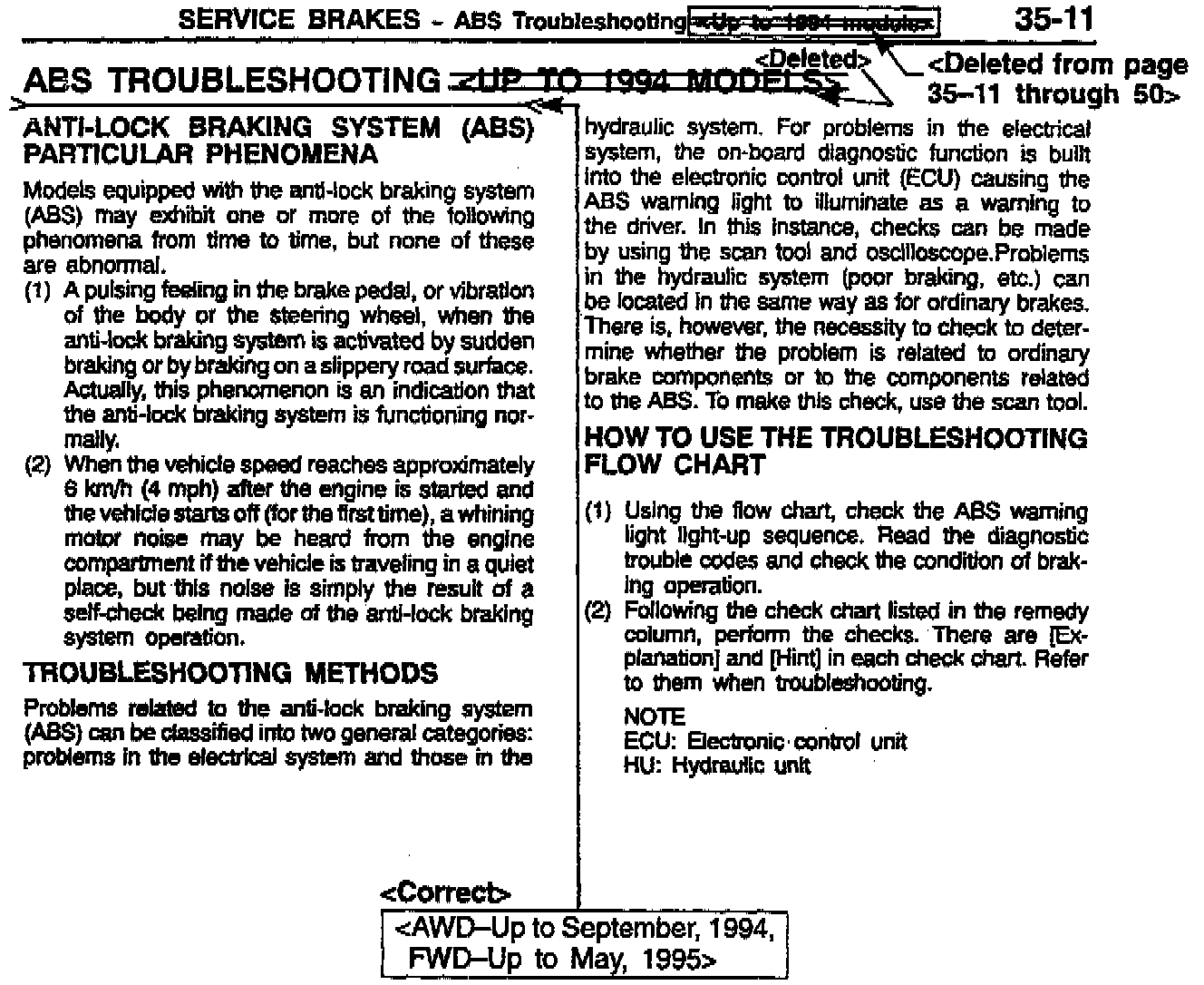

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-11
The applicability statements in the page header and the page title are changed as shown.

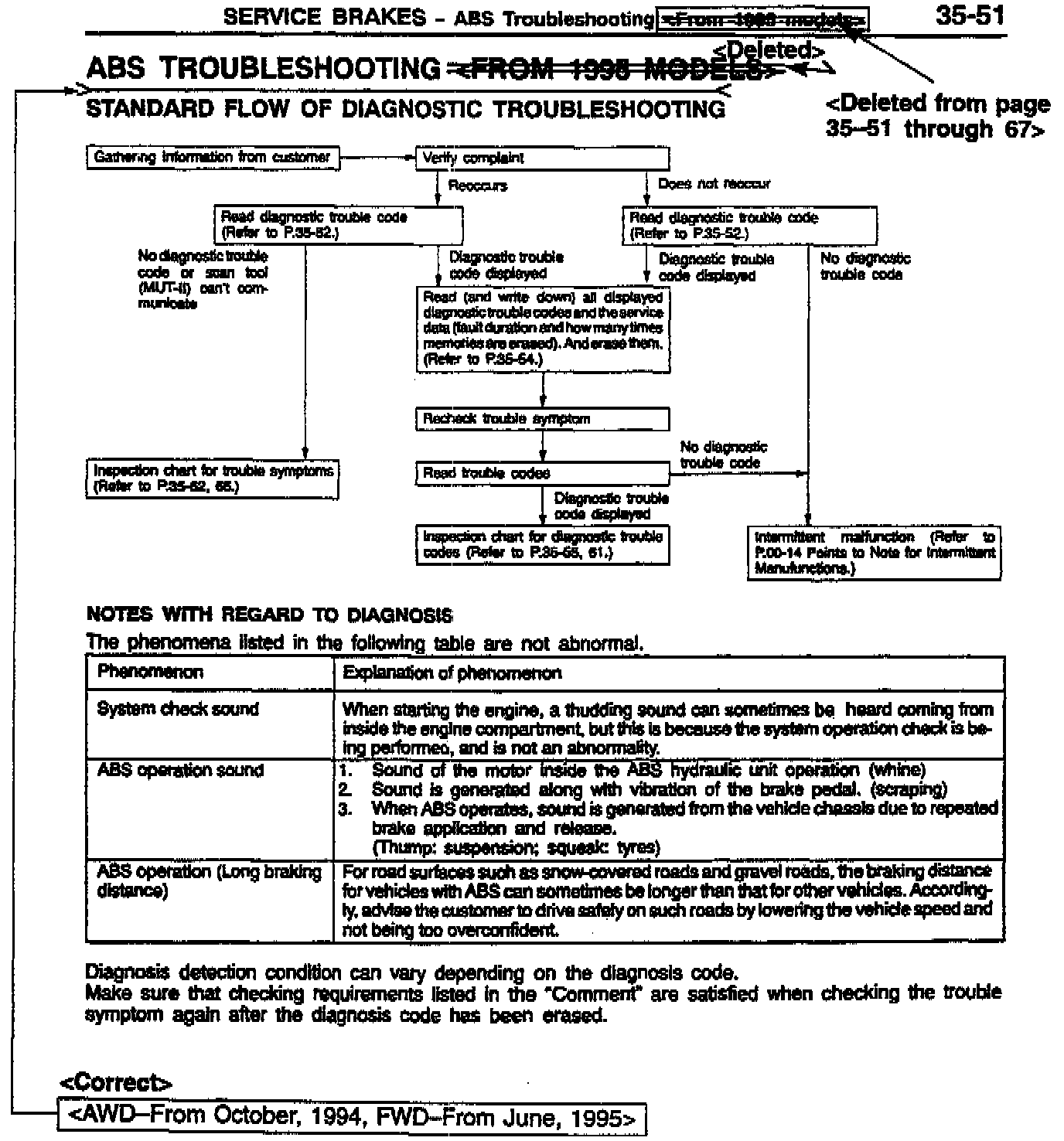

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-51
The applicability of the ABS Troubleshooting charts is changed in the header and the page title as shown.

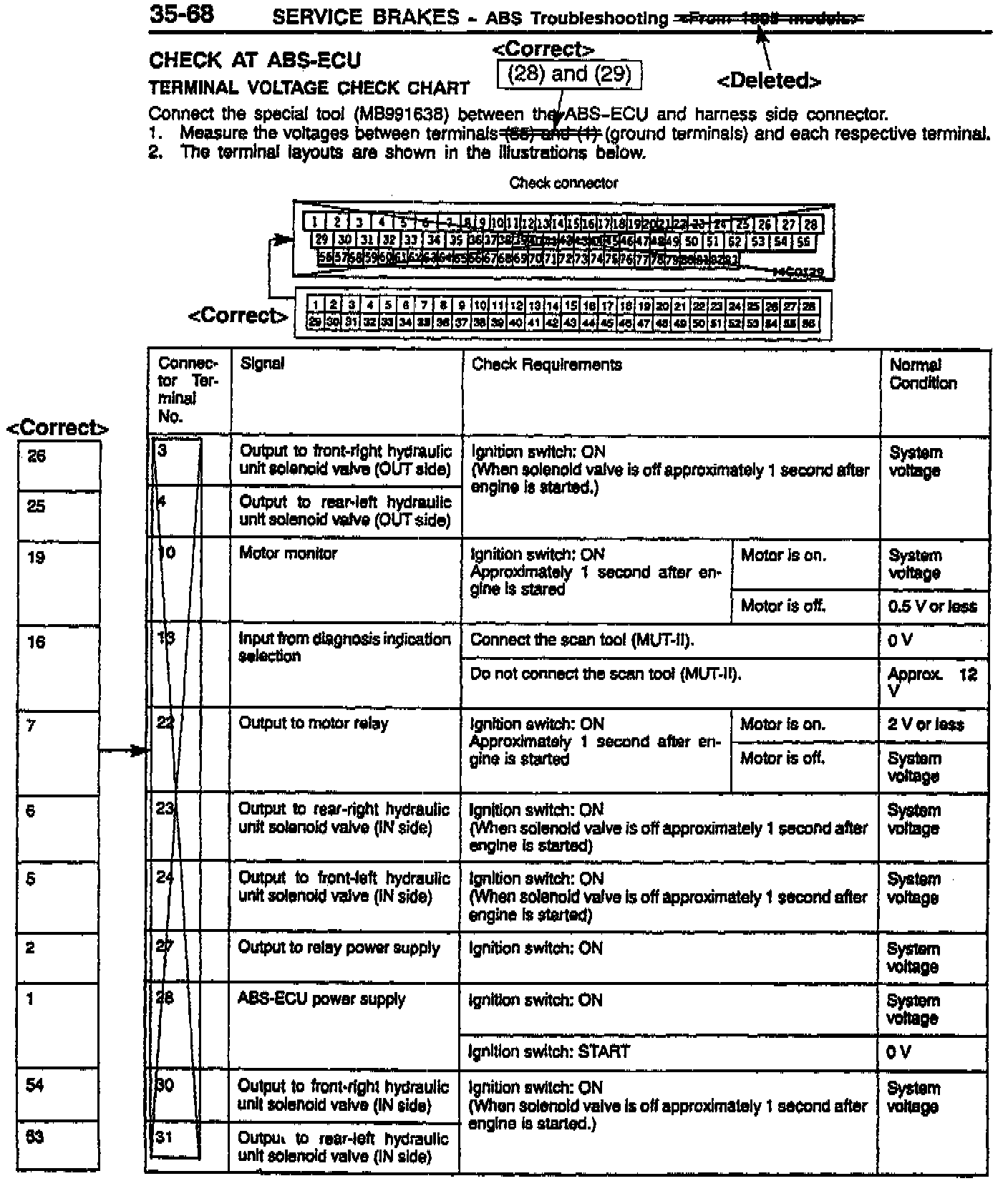

1992-96 Expo/Expo LRV Service Manual Vol. 1 Page 35-68
Terminal designations are changed as shown.

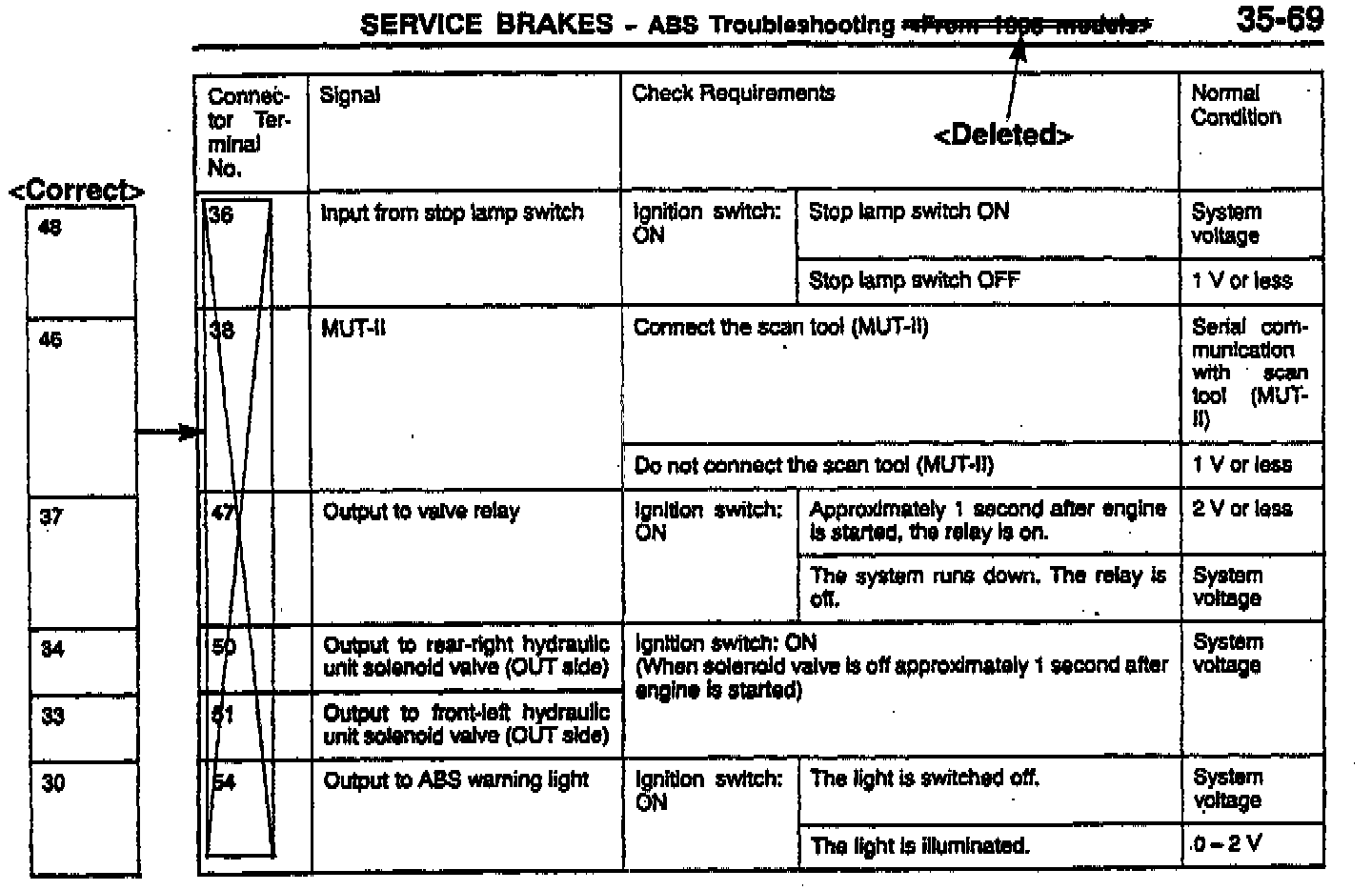

1992-96 Expo/Expo LRV Service Manual Vol. 1 Page 35-69
Terminal designations in the chart are changed.
1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-70
The Check connector terminal designations are changed as illustrated.
1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-85
Vehicle applicability and check connector terminal designations are changed as shown.

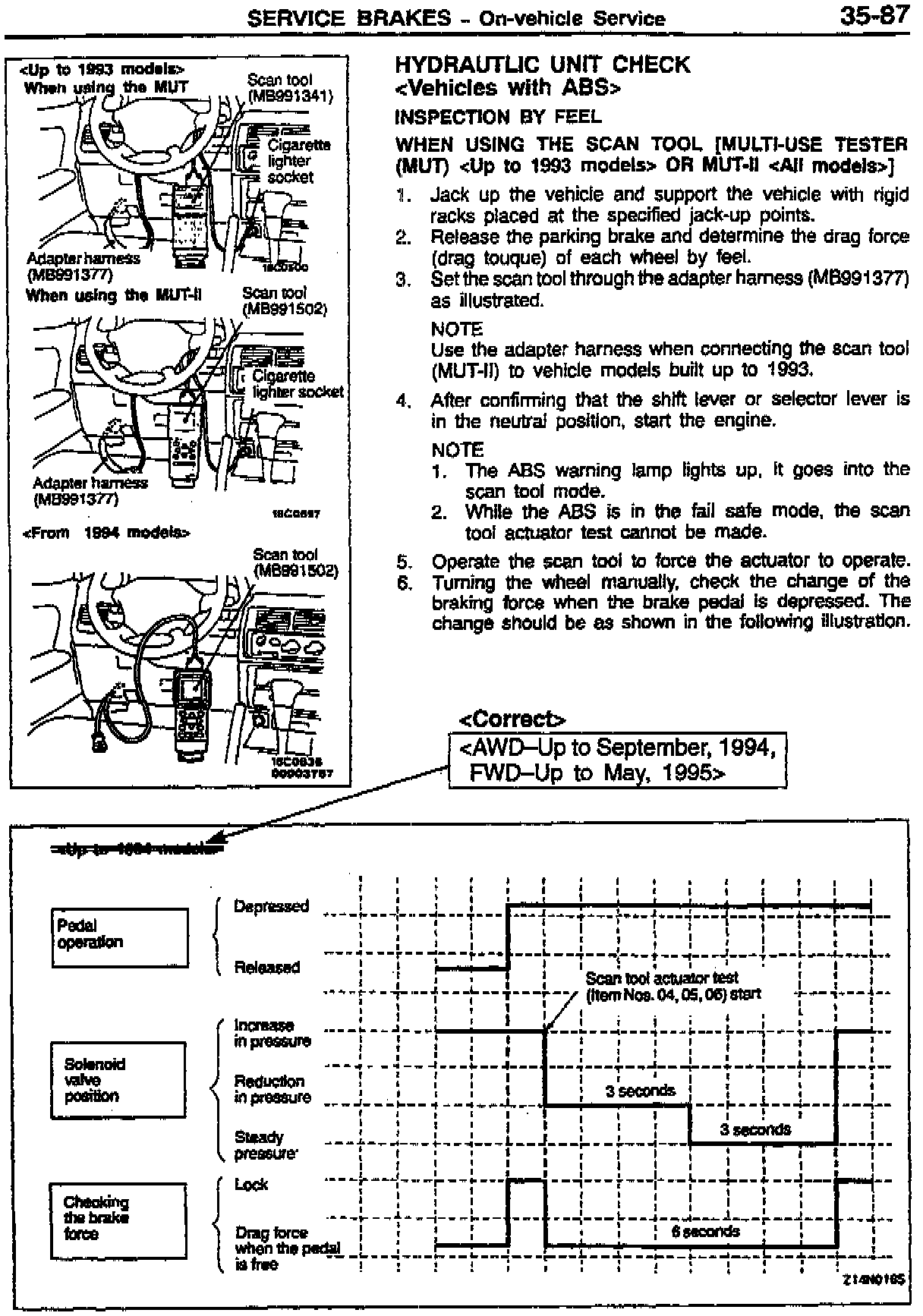

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-87
Vehicle applicability of the chart is changed as shown.

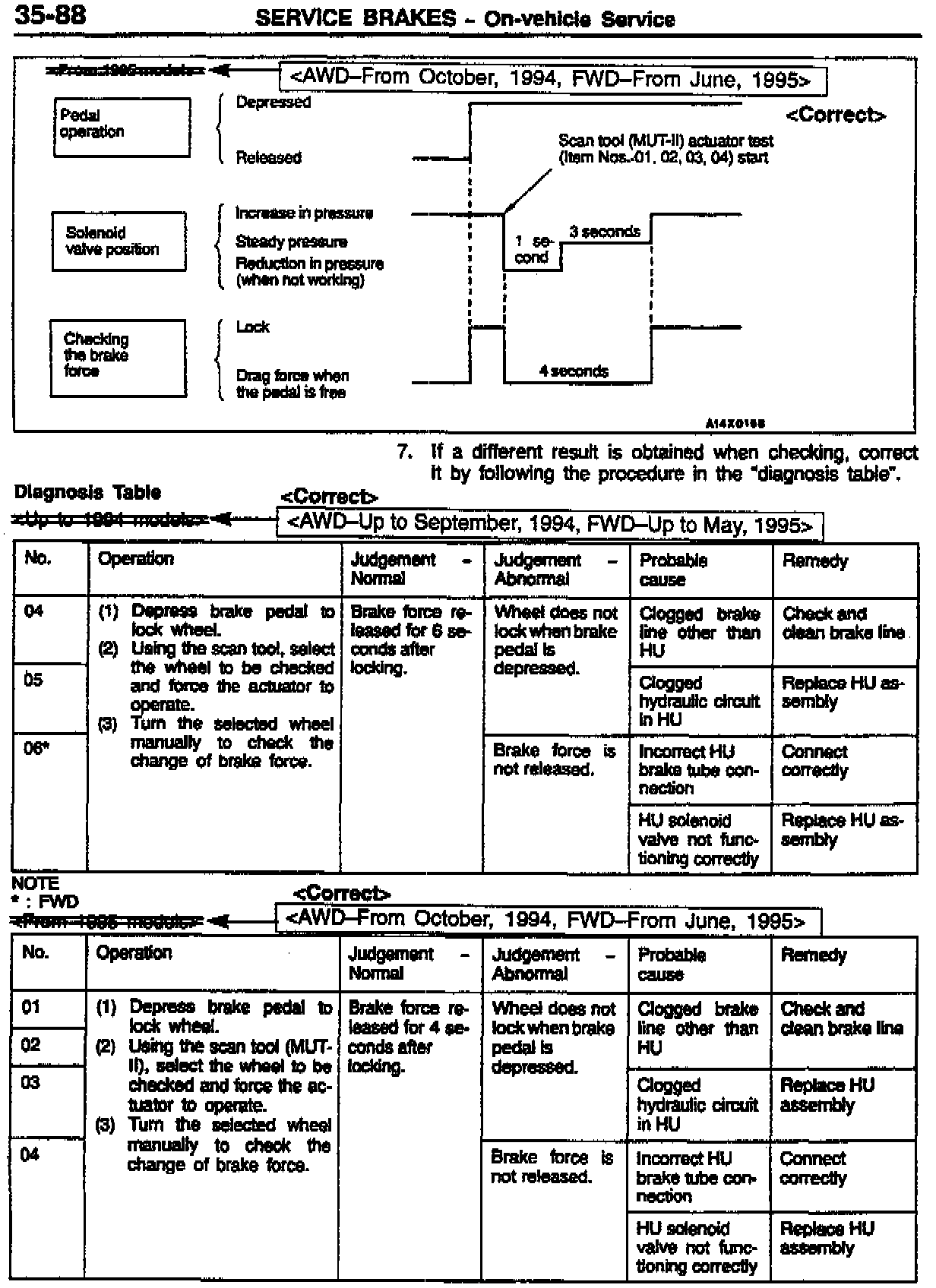

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-88
Anti-lock Brake system applicability is changed as shown.

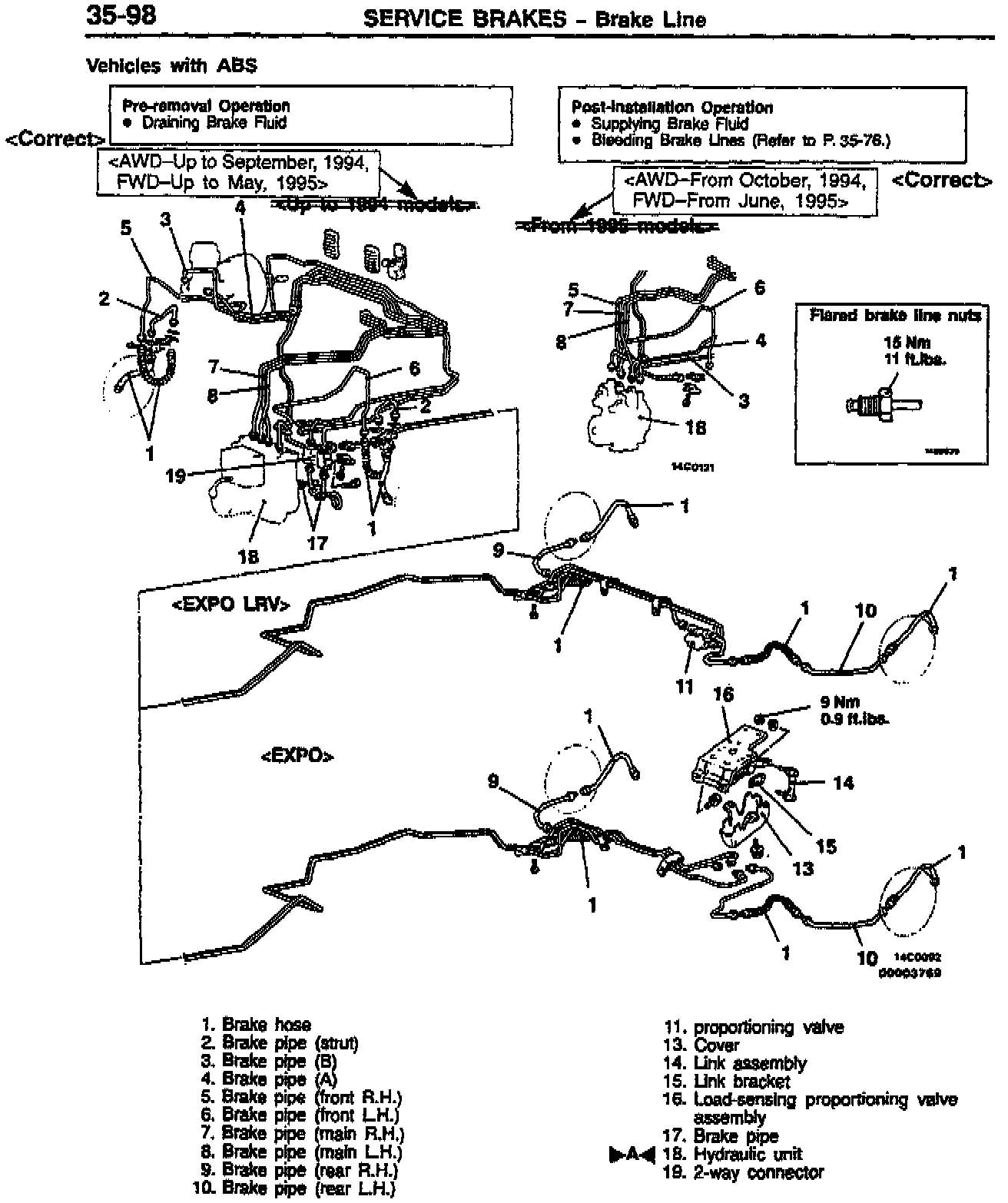

1992-96 Exp6/Expo LRV Service Manual Vol. 1, Page 35-98
Anti-lock Brake system applicability is changed as shown.

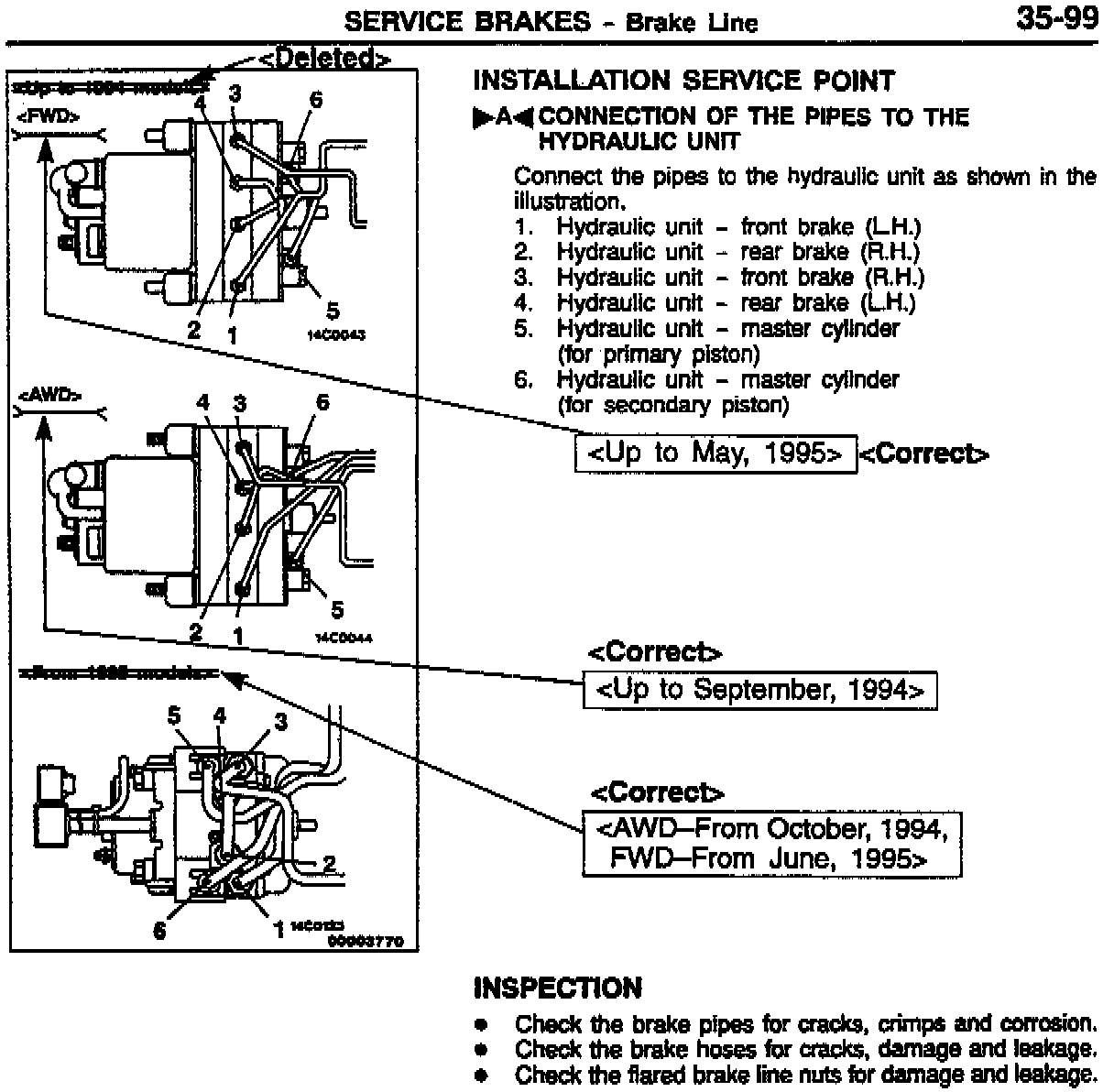

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-99
Anti-lock Brake system applicability is changed as shown.

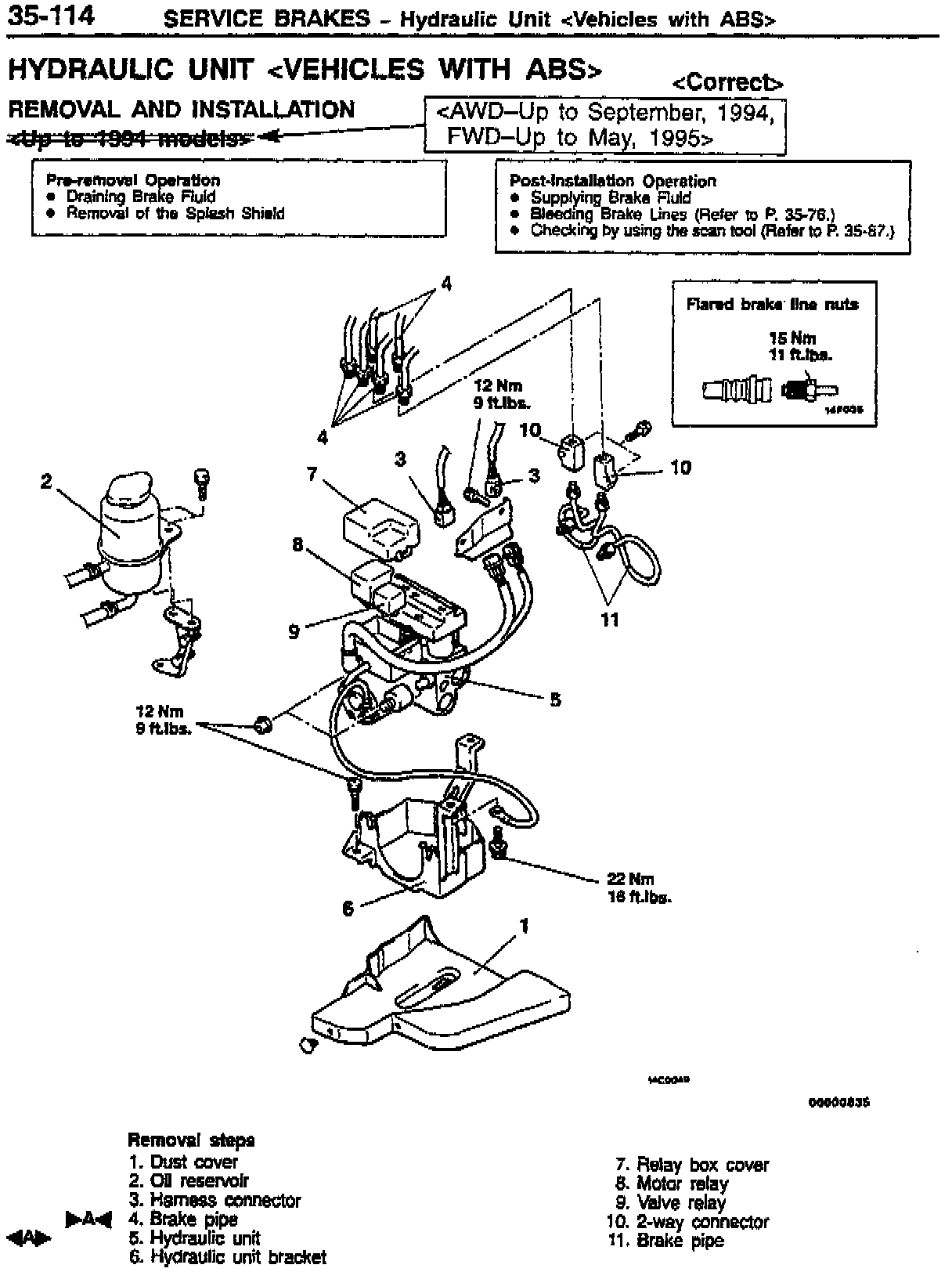

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-114
Hydraulic unit applicability is changed as shown.

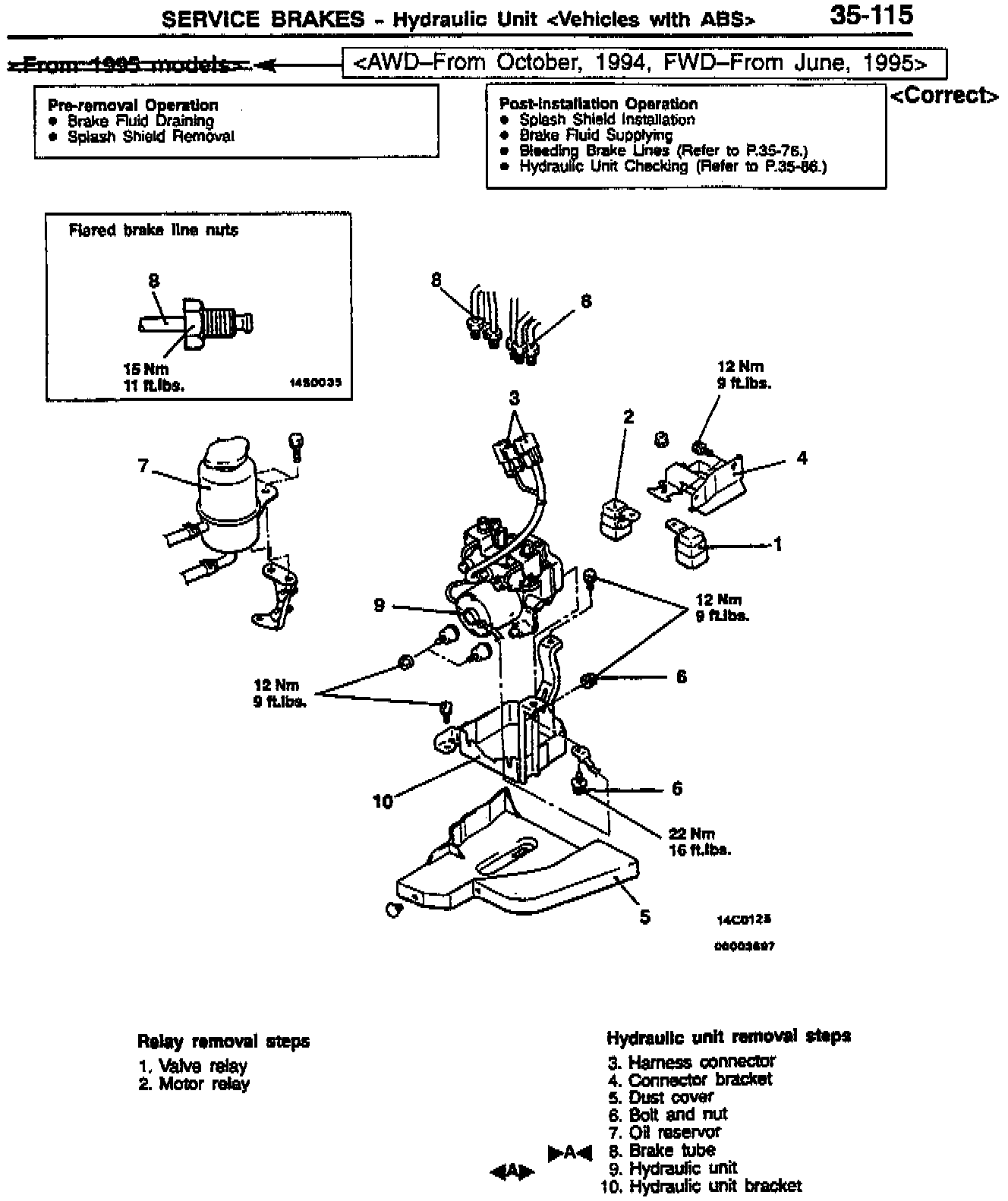

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-115
Hydraulic unit applicability is changed as shown.

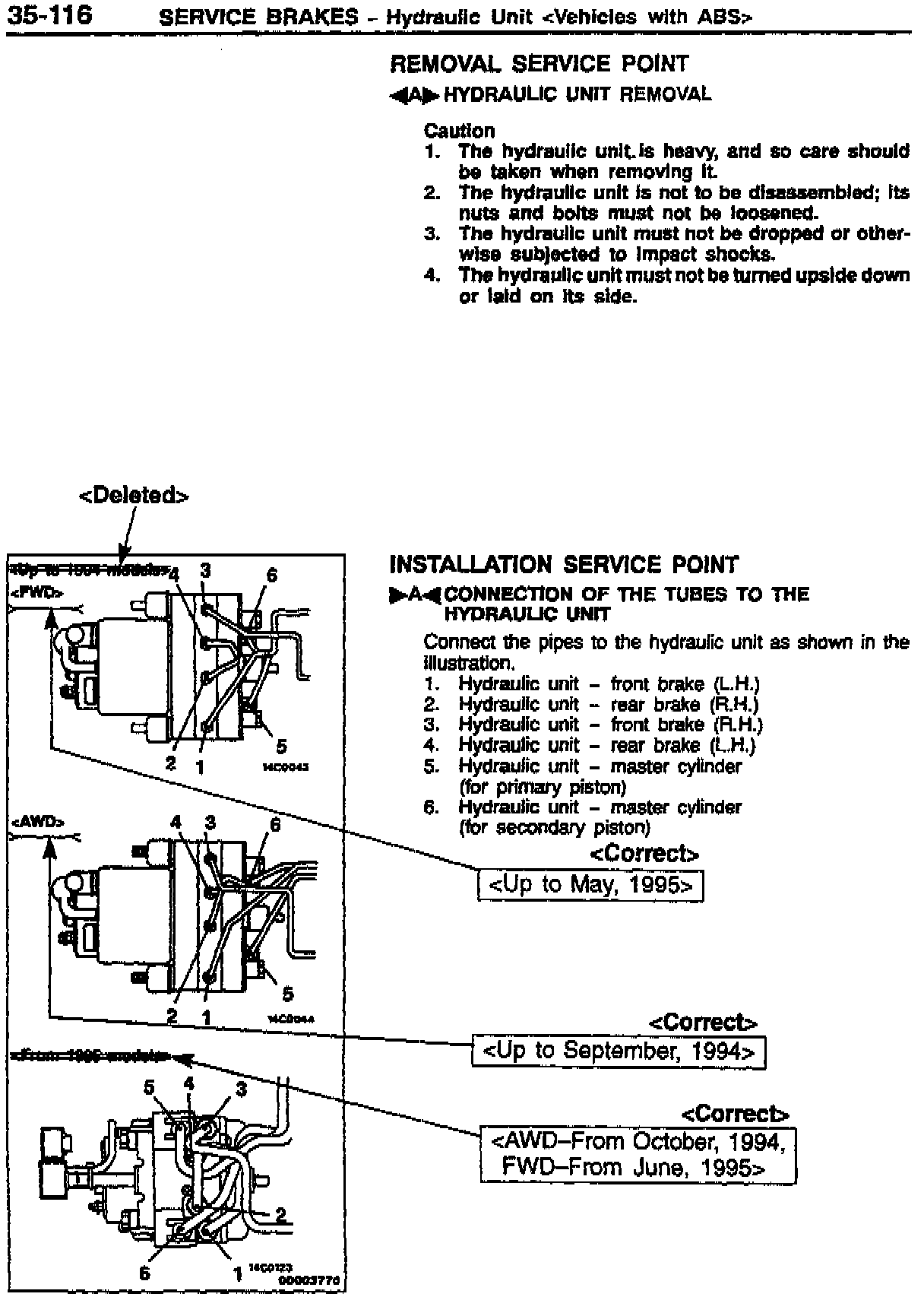

1992-96 Expo/Expo LRV Service Manual Vol. 1 Page 35-116
Hydraulic unit applicability is changed as shown.

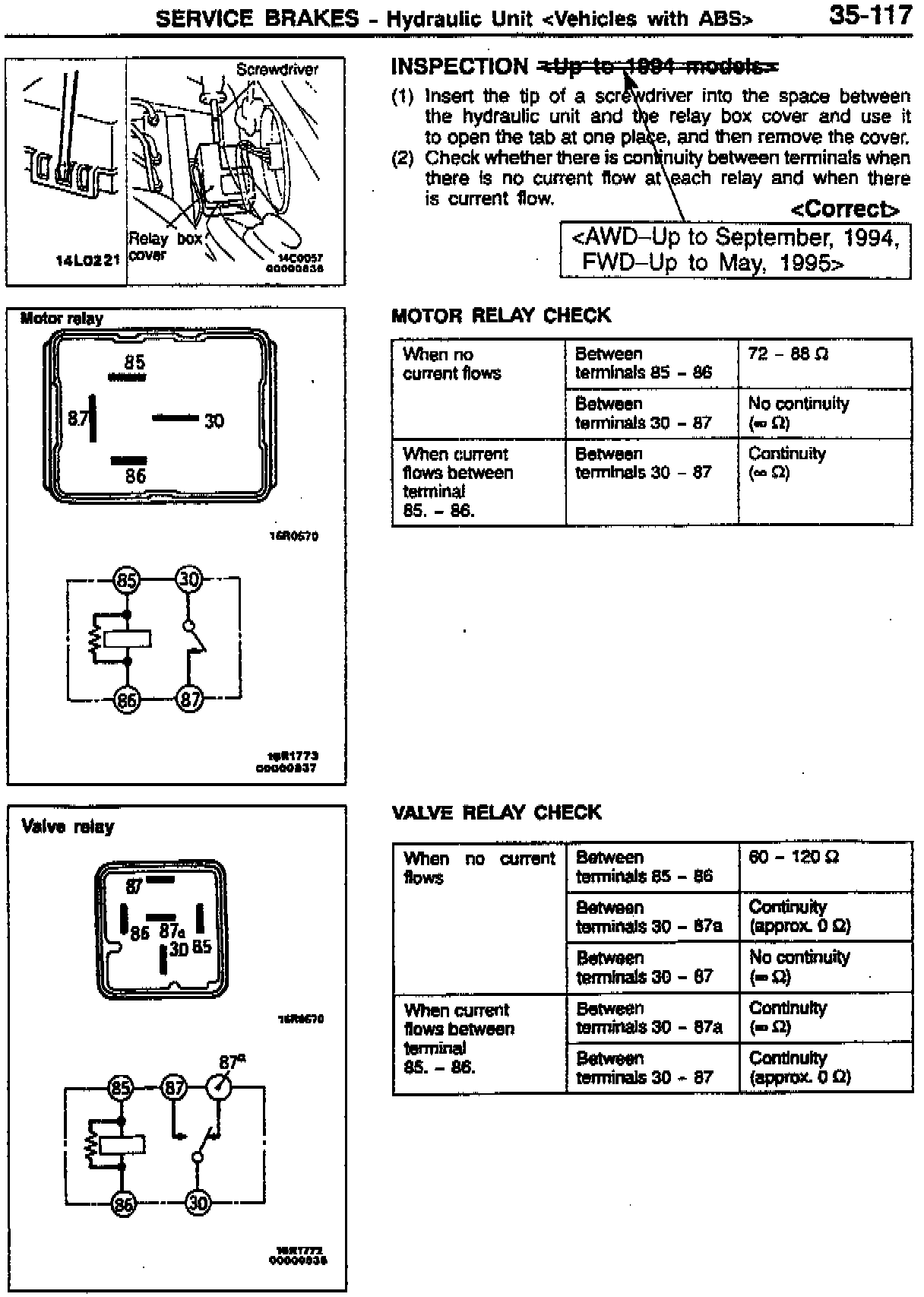

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-117
Hydraulic unit applicability is changed as shown.

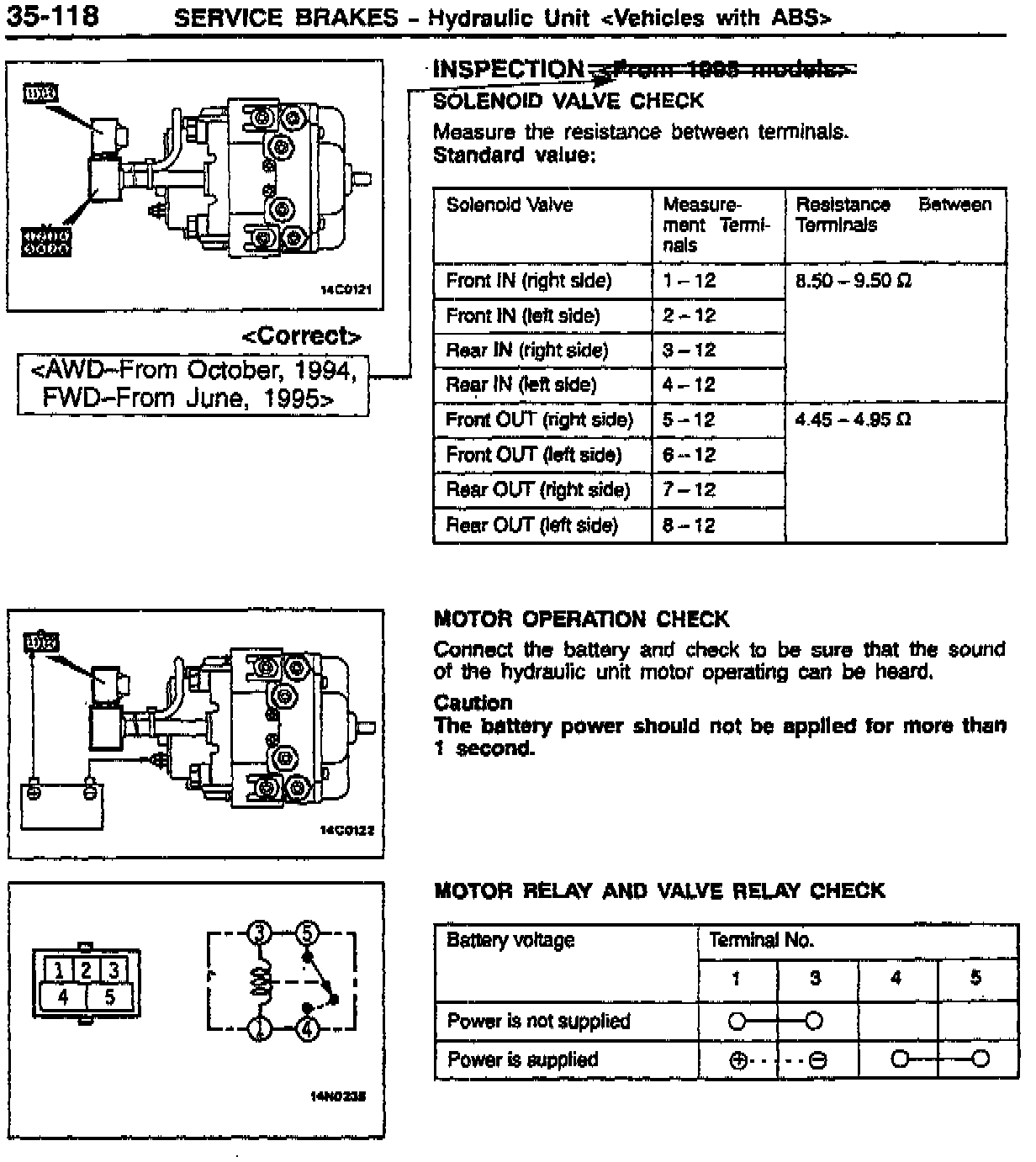

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-118
Hydraulic unit applicability is changed as shown.
1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-124
G-Sensor applicability is changed as shown.

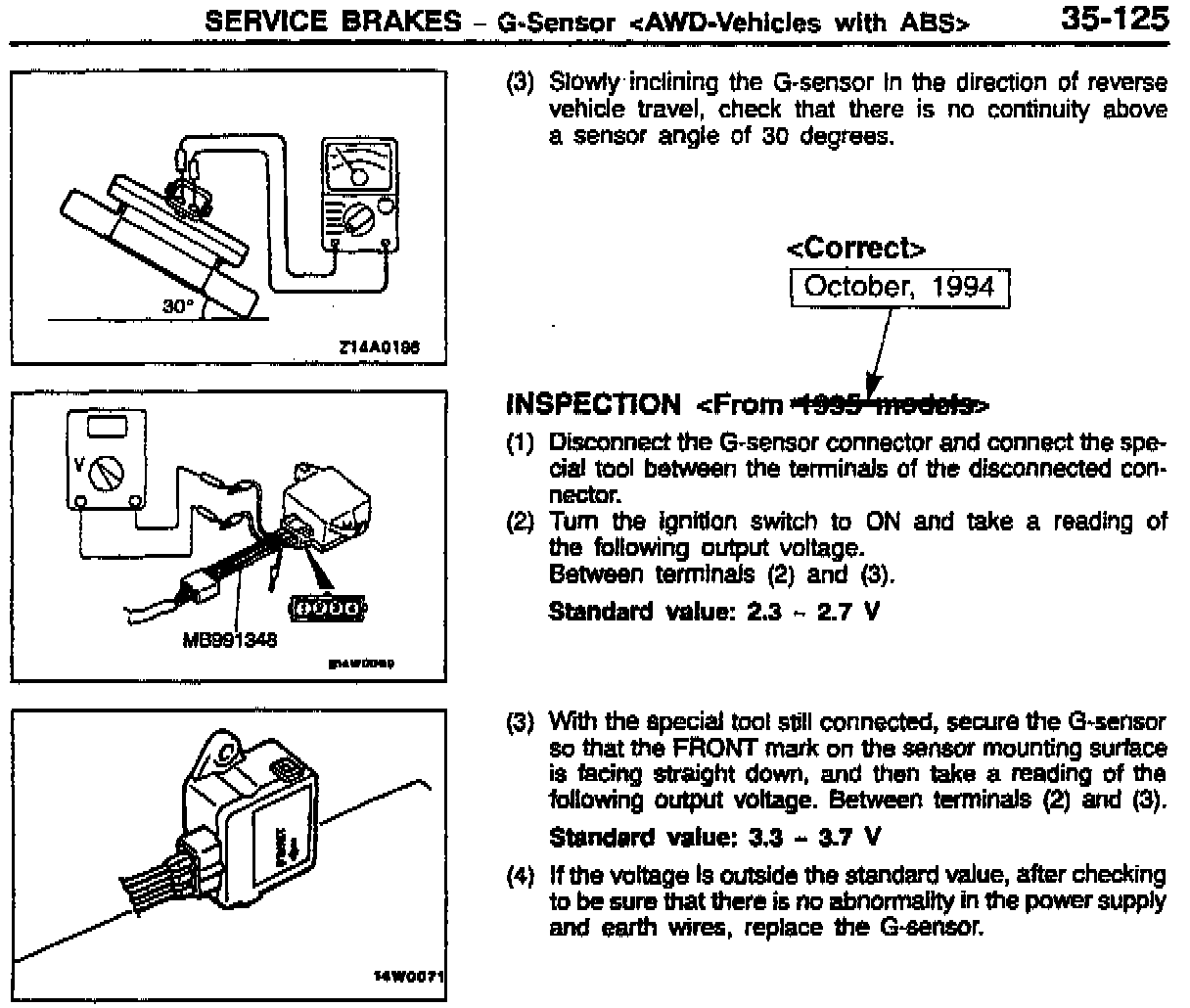

1992-96 Expo/Expo LRV Service Manual, Vol. 1, Page 35-125
G-Sensor applicability is changed as shown.
