Engine - Valve Clearance Manual Revision
NO.: TSB-93-11-004DATE: May, 1993
MODEL: 1992-93
[TSB REVISION TSB-93-11-004]
SUBJECT:
VALVE CLEARANCE - SERVICE MANUAL REVISION
PURPOSE
This bulletin corrects the 4G93 (1.8 L) exhaust valve adjustment clearance specification shown in the 92-93 Expo/Expo LRV service manual. The correct exhaust valve adjustment clearance specification is 0.30 mm (0.012 in.). As shown, please correct the affected service manual page and as reference to this Technical Service Bulletin please write this bulletin number in the TSB Revision box on the affected page.
AFFECTED SERVICE MANUAL
92-93 Expo/Expo LRV, Volume 1, page 00-43.

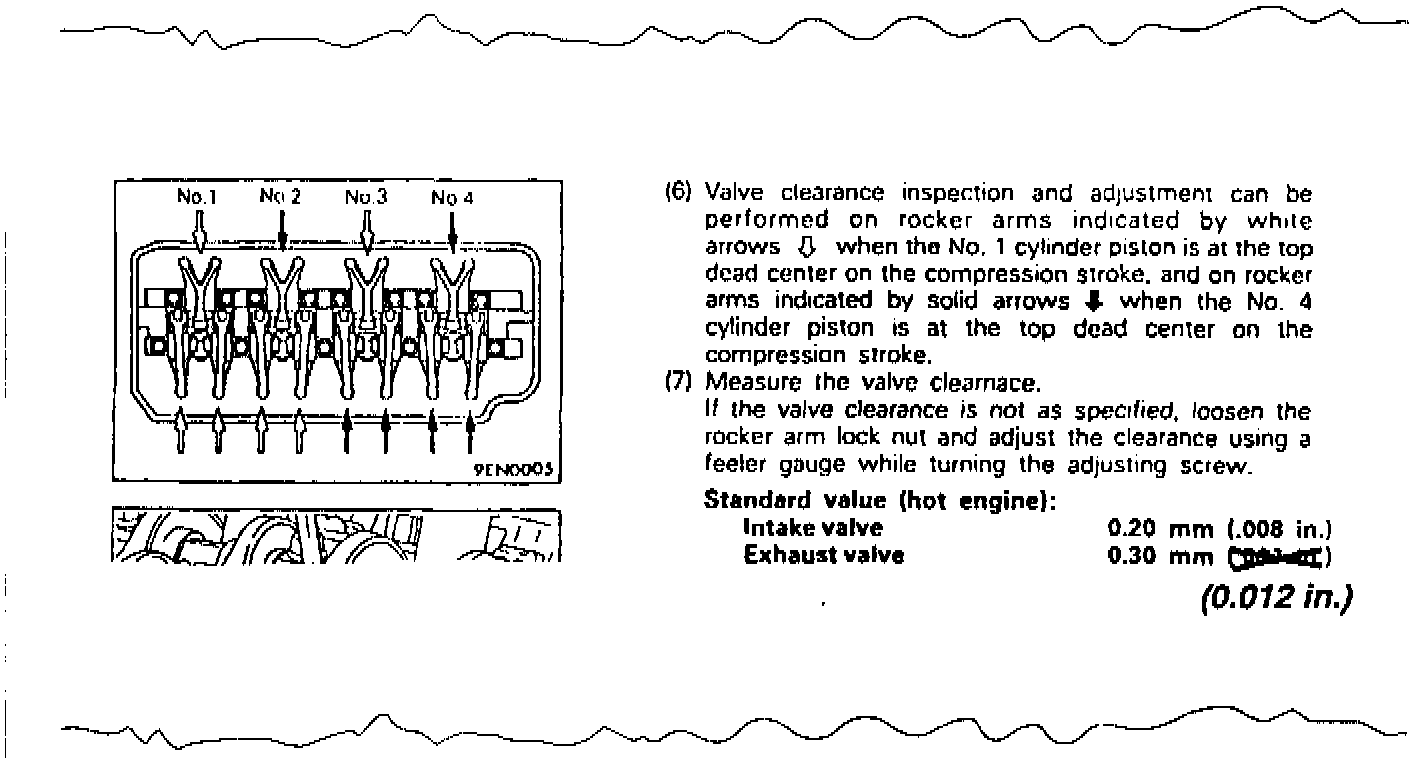

SERVICE MANUAL CORRECTION
As shown, cross out (.001) and write in "(0.012 in)."
