Front Brakes - Disc Run Out Specifications Revision

NO.: TSB-97-35-001
DATE: March, 1997
MODEL: 1992-95 Expo/Expo LRV

SUBJECT:
REVISED FRONT BRAKE DISC RUN-OUT LIMIT VALUE - SERVICE MANUAL REVISION

[TSB Revision TSB-97-35-001]

PURPOSE
This bulletin revises the limit for checking the front brake disc rotor run-out value in the 1992-96 Expo/Expo LRV Service Manual, Volume 1. The new disc rotor run-out limit is 0.07 mm (0.0028 inch).

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1992-95 Expo/Expo LRV

AFFECTED SERVICE MANUAL

1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 35-79

SERVICE MANUAL REVISION

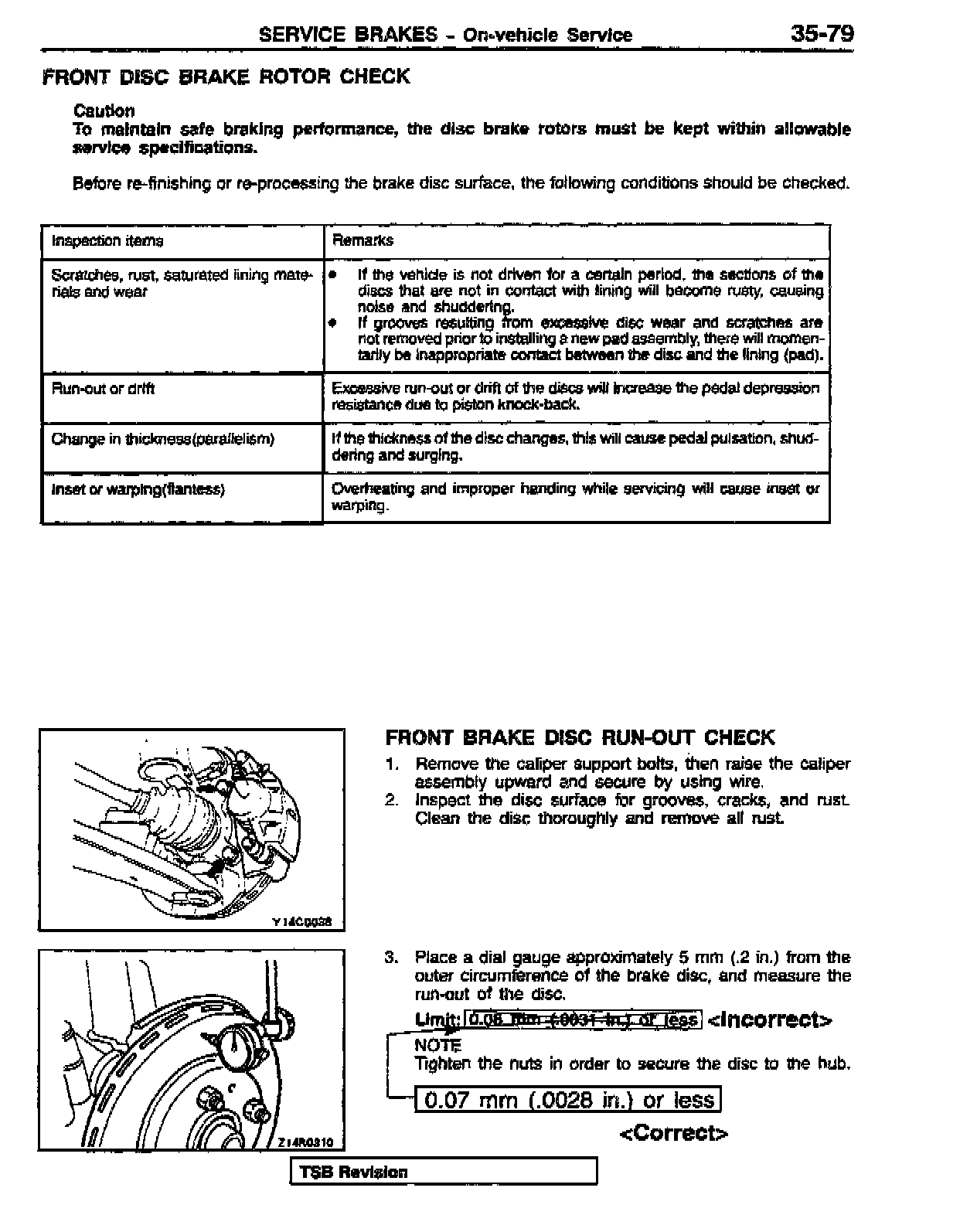

1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 35-79
Correct the front disc brake rotor run-out checking value as shown.
