P/S Gear Box - Oil Seal/Bearing Installation Tool

NO.: TSB-96-37A-002

DATE: November, 1996

MODEL: See Below

SUBECT:
REVISED NUMBER FOR POWER STEERING GEAR BOX
OIL SEAL AND BEARING INSTALLER SPECIAL TOOL -
SERVICE MANUAL REVISIONS

TSB Revision TSB-96-37A-002

PURPOSE

This bulletin corrects the tool number for the oil seal and bearing installer special tool used to disassemble and assemble the power steering gear box on the 1992-96 Expo and Expo LRV and the 1993-96 Mirage.

Write the TSB revision number of this bulletin in the "TSB Revision" box at the bottom of the affected service manual page.

AFFECTED VEHICLES

1992-95 Expo/Expo LRV
1993-96 Mirage

AFFECTED SERVICE MANUALS

1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 37A-24
1993-96 Mirage Service Manual, Volume 1, Pages 37A-5 and 37A-32

SERVICE MANUAL REVISIONS

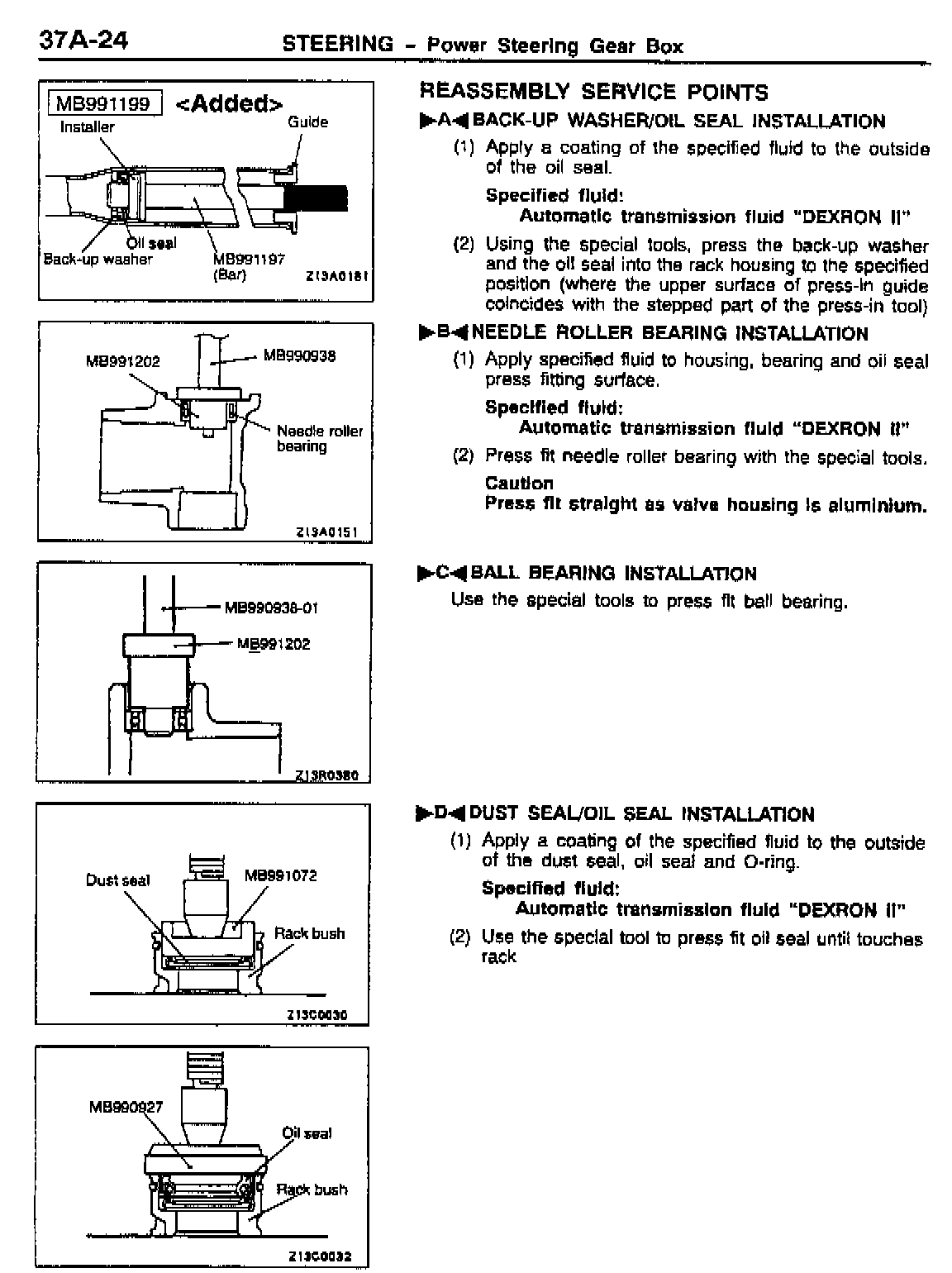

1992-96 Expo/Expo LRV Service Manual, Volume 1, Page 37A-24
Change the number of the power steering gear box oil seal and bearing installer special tool as shown.

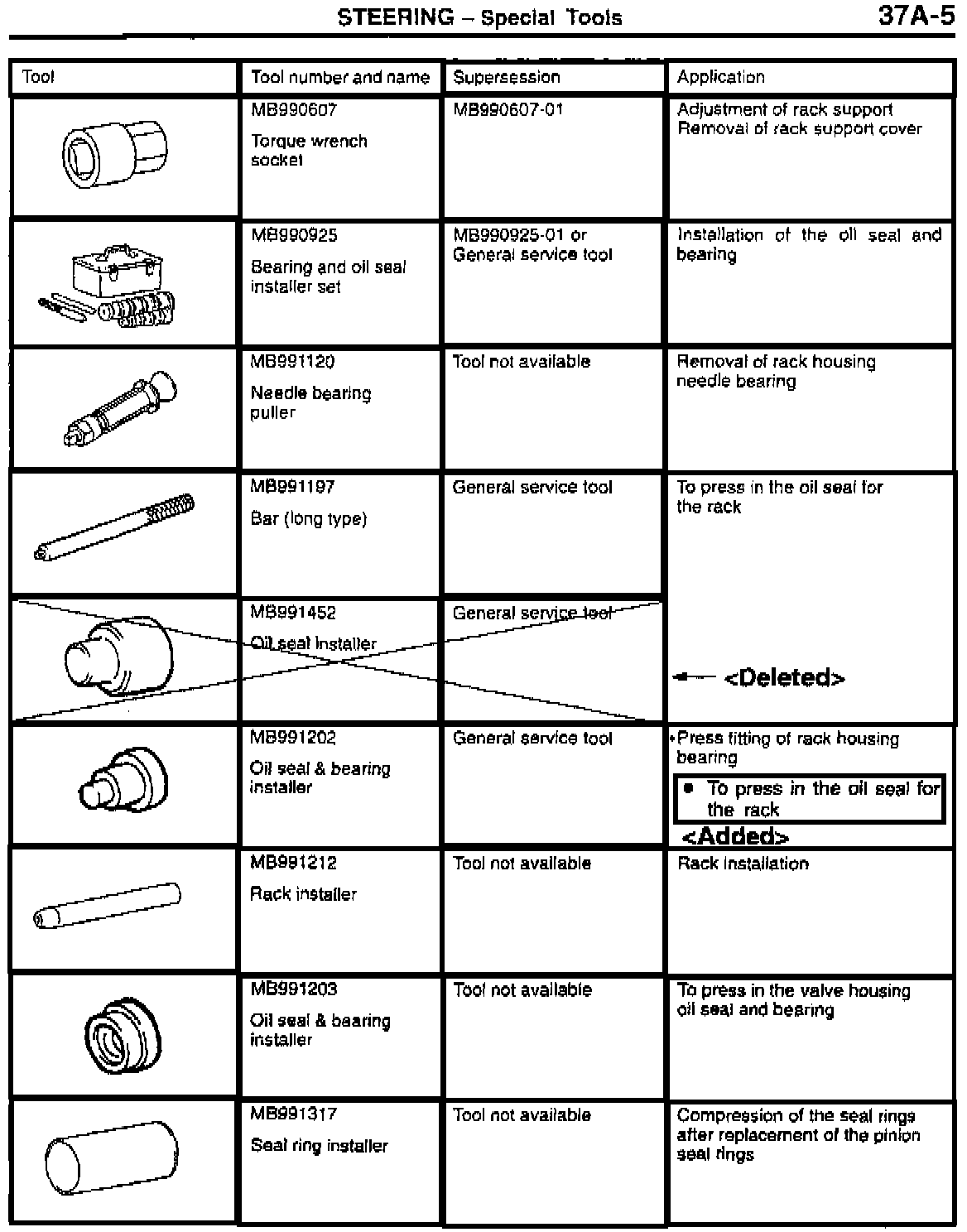

1993-96 Mirage Service Manual, Volume 1 Page 37A-5
Change the number of the power steering gear box oil seal and bearing installer special tool as shown.





1993-96 Mirage Service Manual, Volume 1, Page 37A-32
Change the number of the power steering gear box oil seal and bearing installer special tool as shown.
