Key to Wiring Diagrams and Symbol Identification

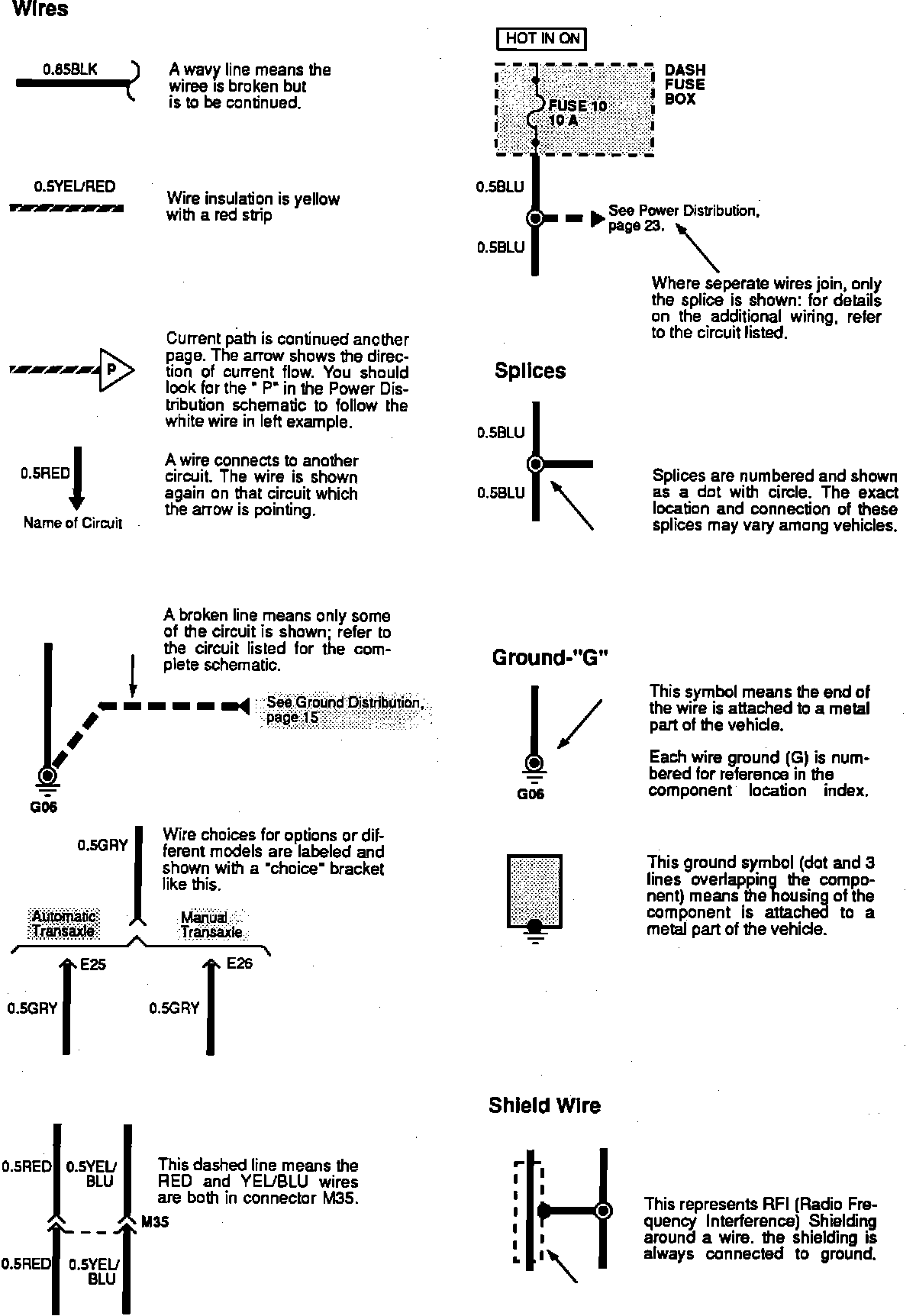

Key To Wiring Diagrams:

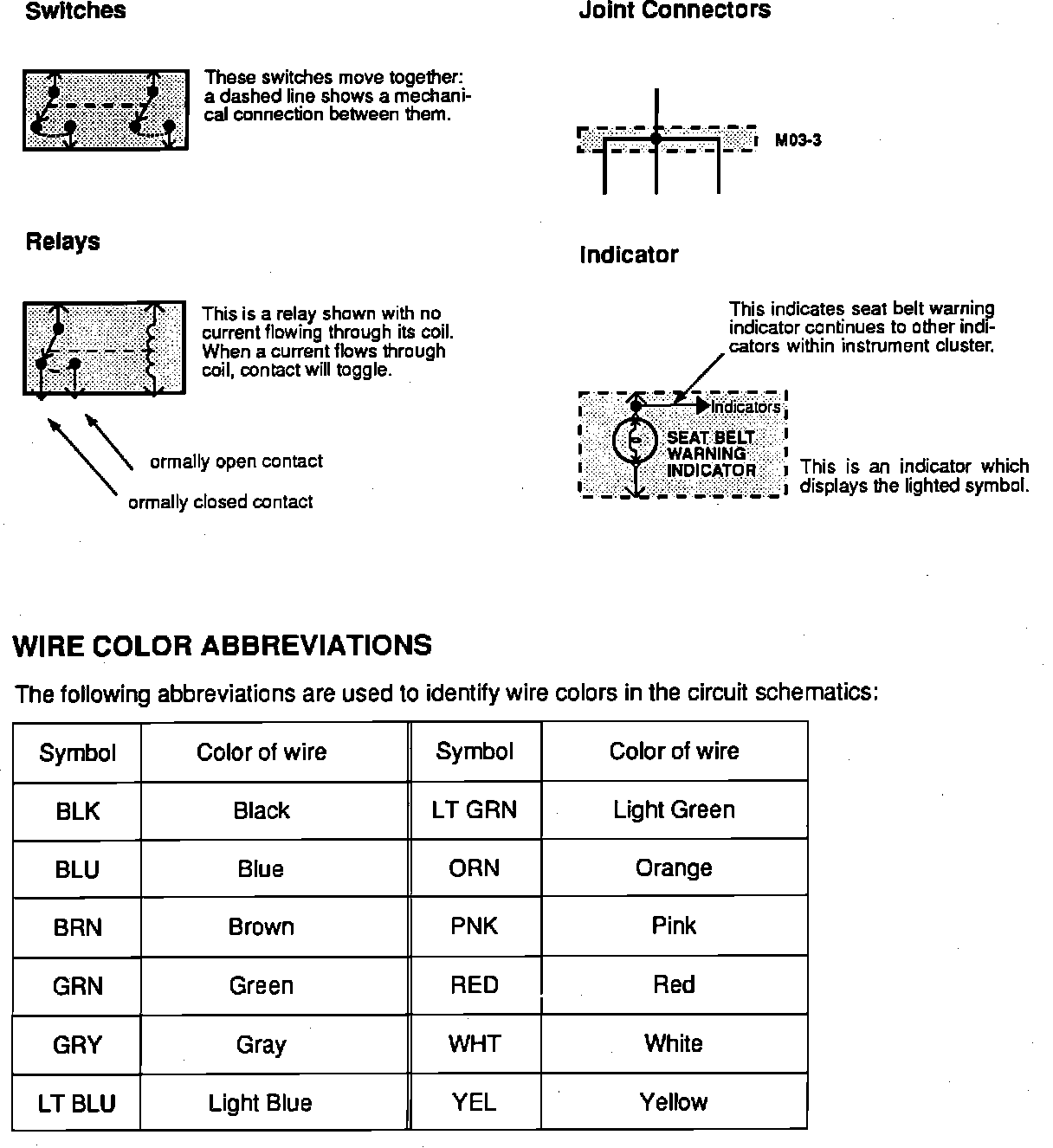

Key To Wiring Diagrams:



Key To Wiring Diagrams:
