Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mitsubishi
>>
1993
>>
Precis L4-1468cc 1.5L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Transmission Control Systems
Transmission Control Systems

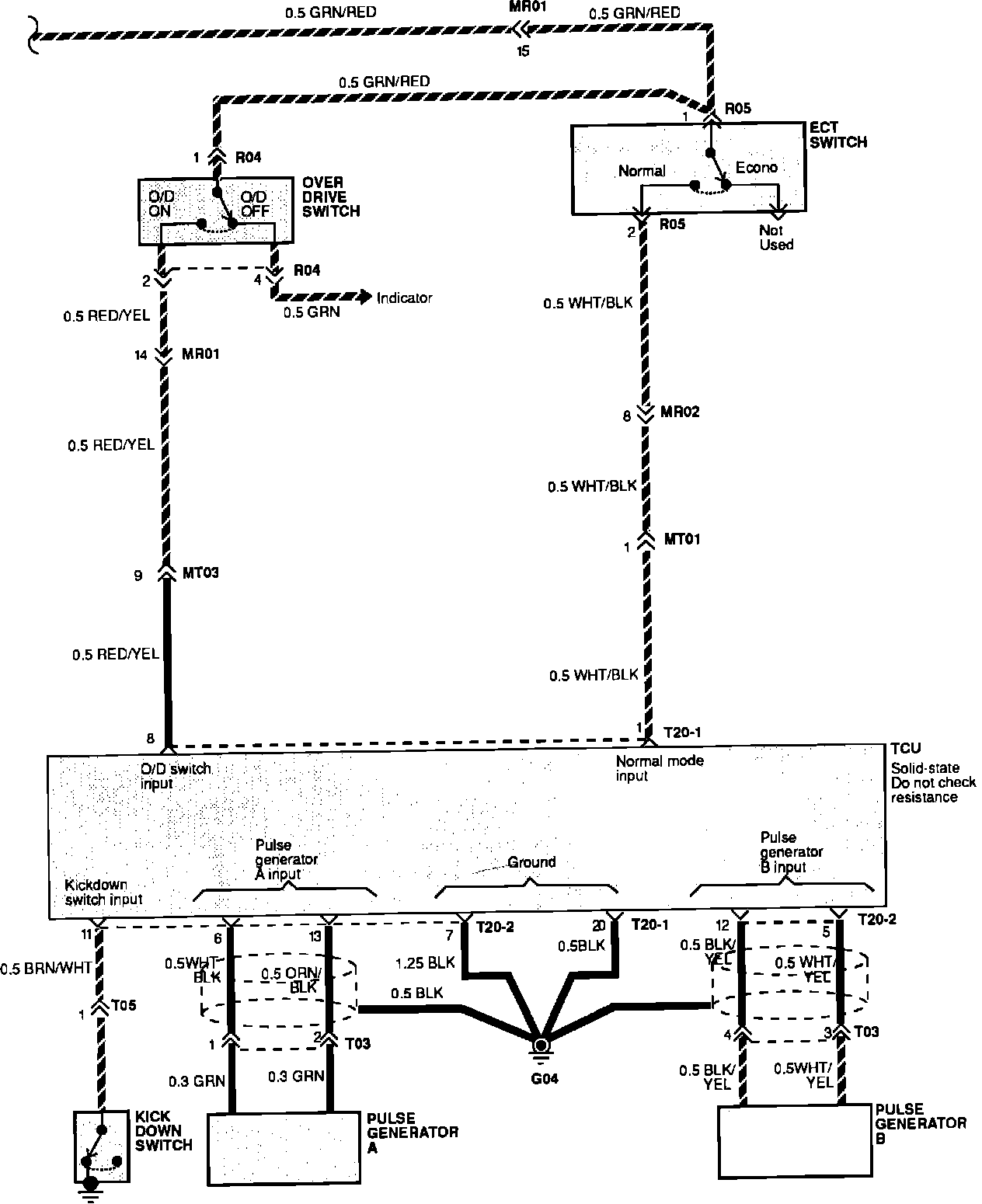

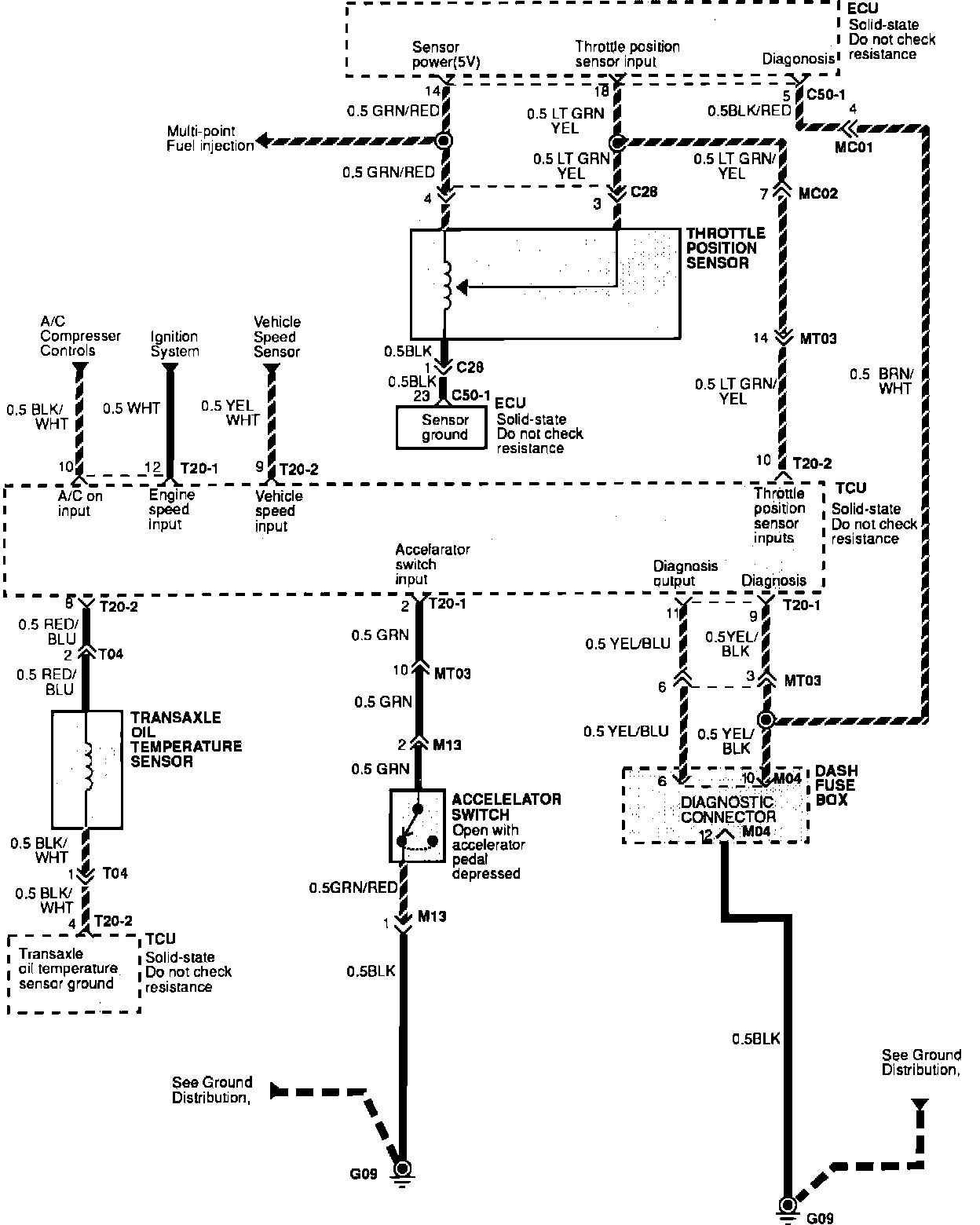

Electronic Lock-Up Controls:
Electronic Lock-Up Controls:
Electronic Lock-Up Controls:

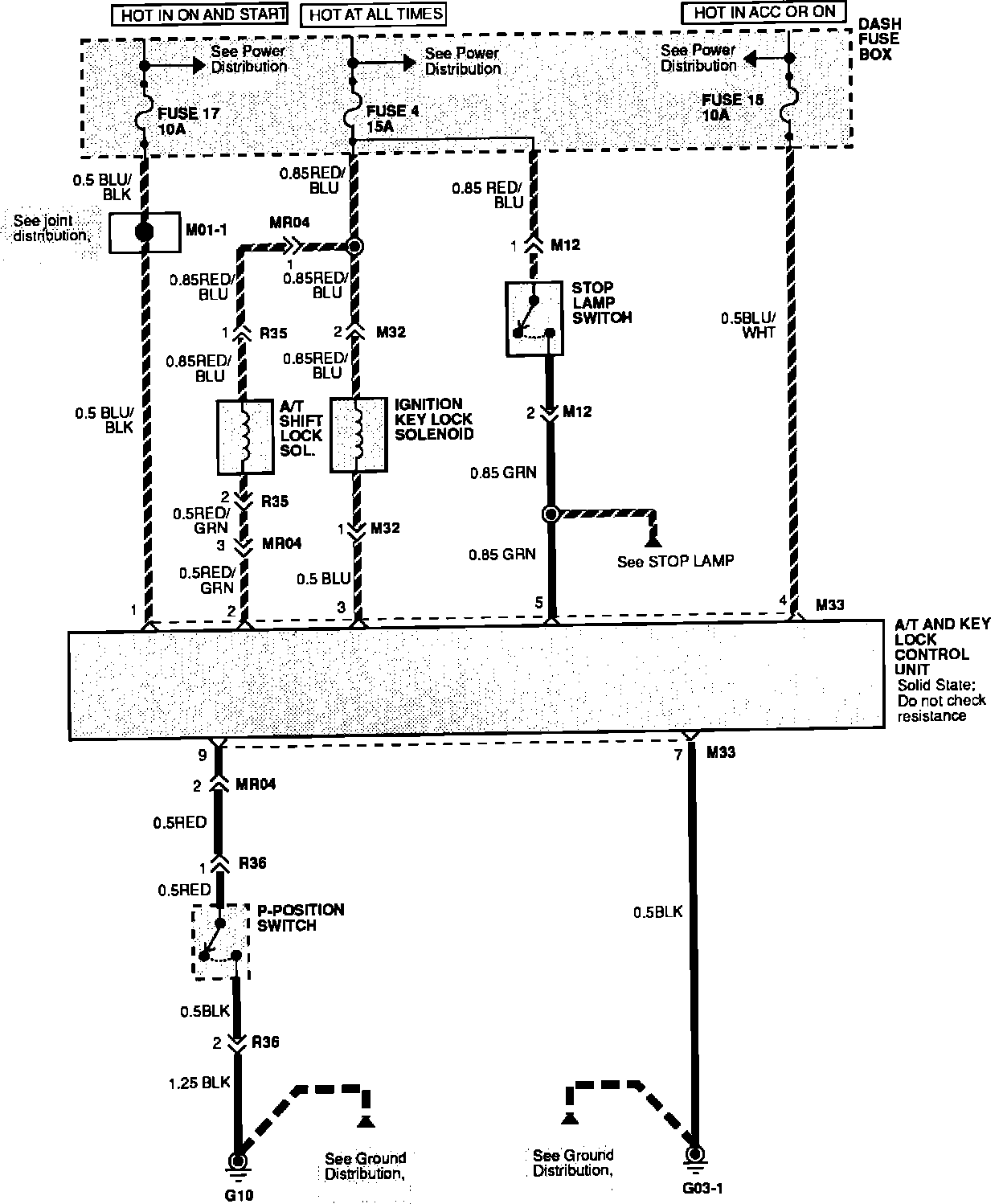

Automatic Trans Axle And Key Lock Controls:
Diagnostic Connector Identification:
