Instrument Cluster / Carrier: Service and Repair

1. Disconnect battery ground cable.

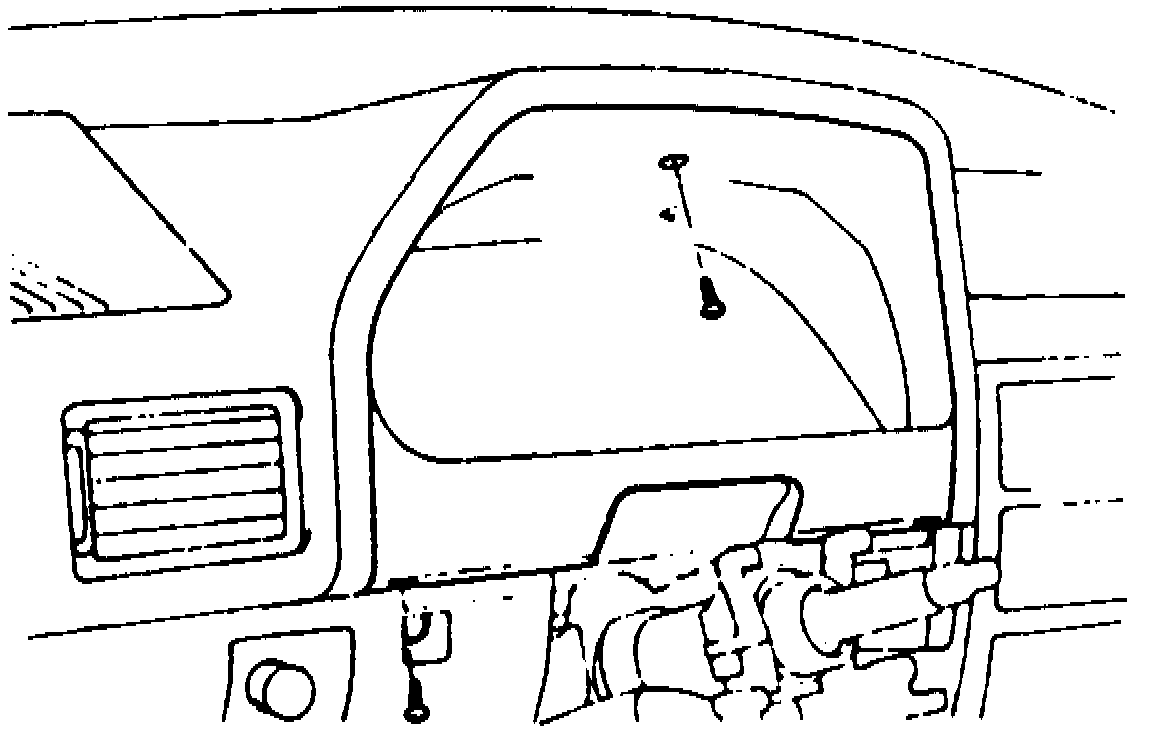

Fig. 6 Instrument Cluster Fascia Attaching Screw Locations:

2. Remove three instrument cluster attaching screws, then the fascia from instrument panel, Fig. 6.

Fig. 7 Instrument Cluster Retaining Screw Locations:

3. Remove four instrument cluster retaining screws, Fig. 7.
4. Disconnect speedometer cable and all wire connectors from rear of cluster, then remove cluster from instrument panel.
5. Reverse procedure to install.
