Steering: Testing and Inspection

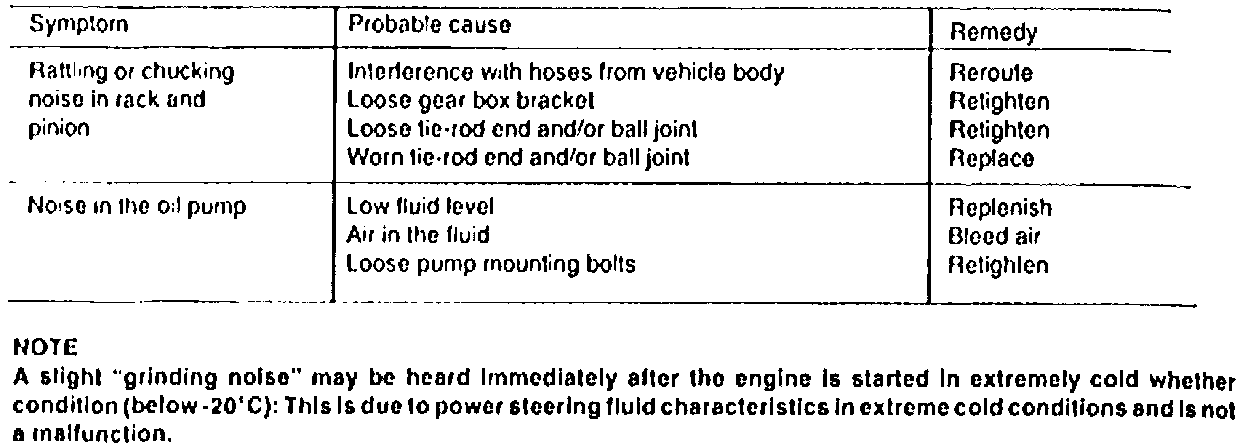

Fig. 4 Troubleshooting Chart (Part 1 Of 2):

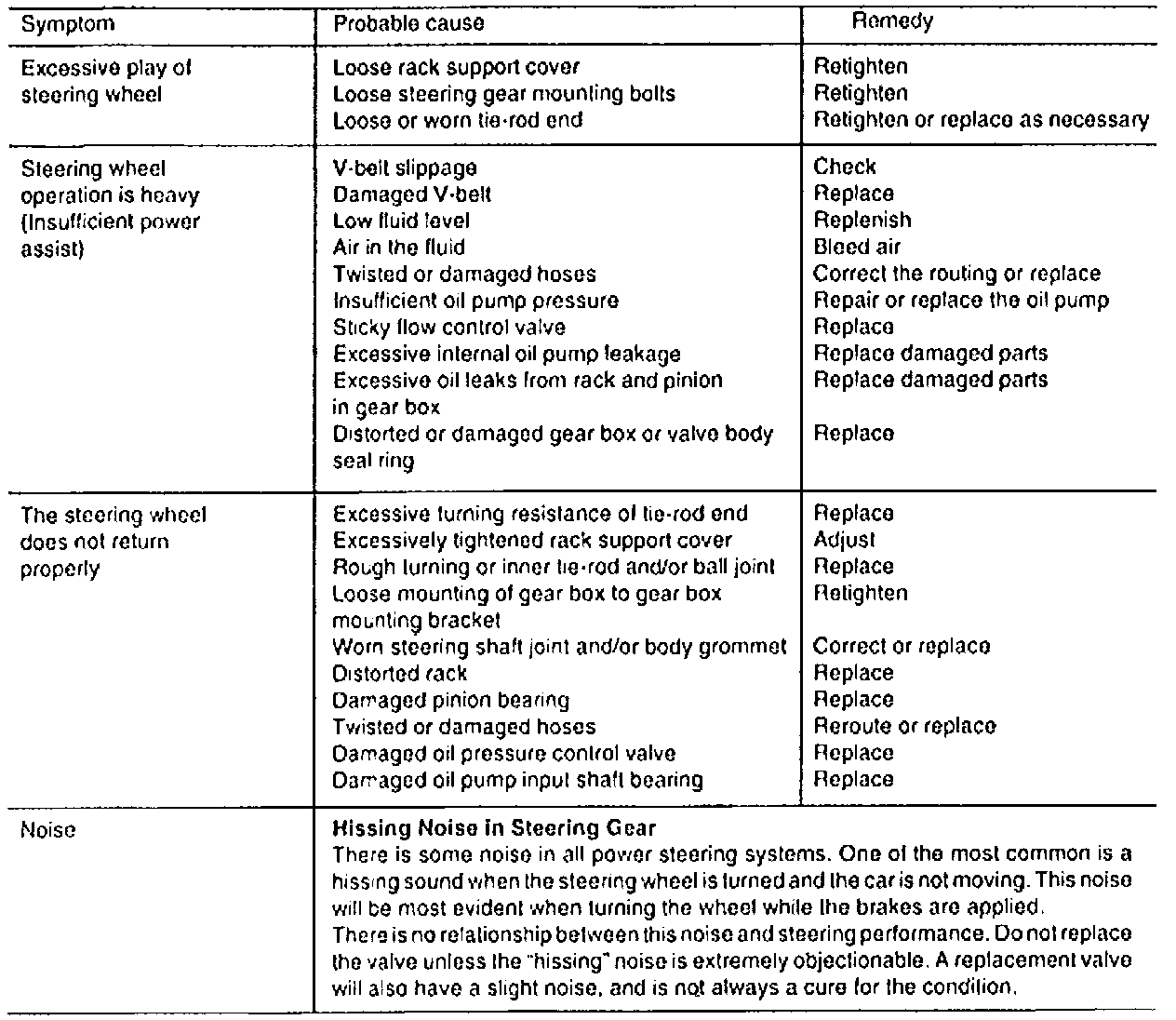

Fig. 4 Troubleshooting Chart (Part 2 Of 2):





Refer to Fig. 4 for troubleshooting procedures.
