Antilock Brakes / Traction Control Systems

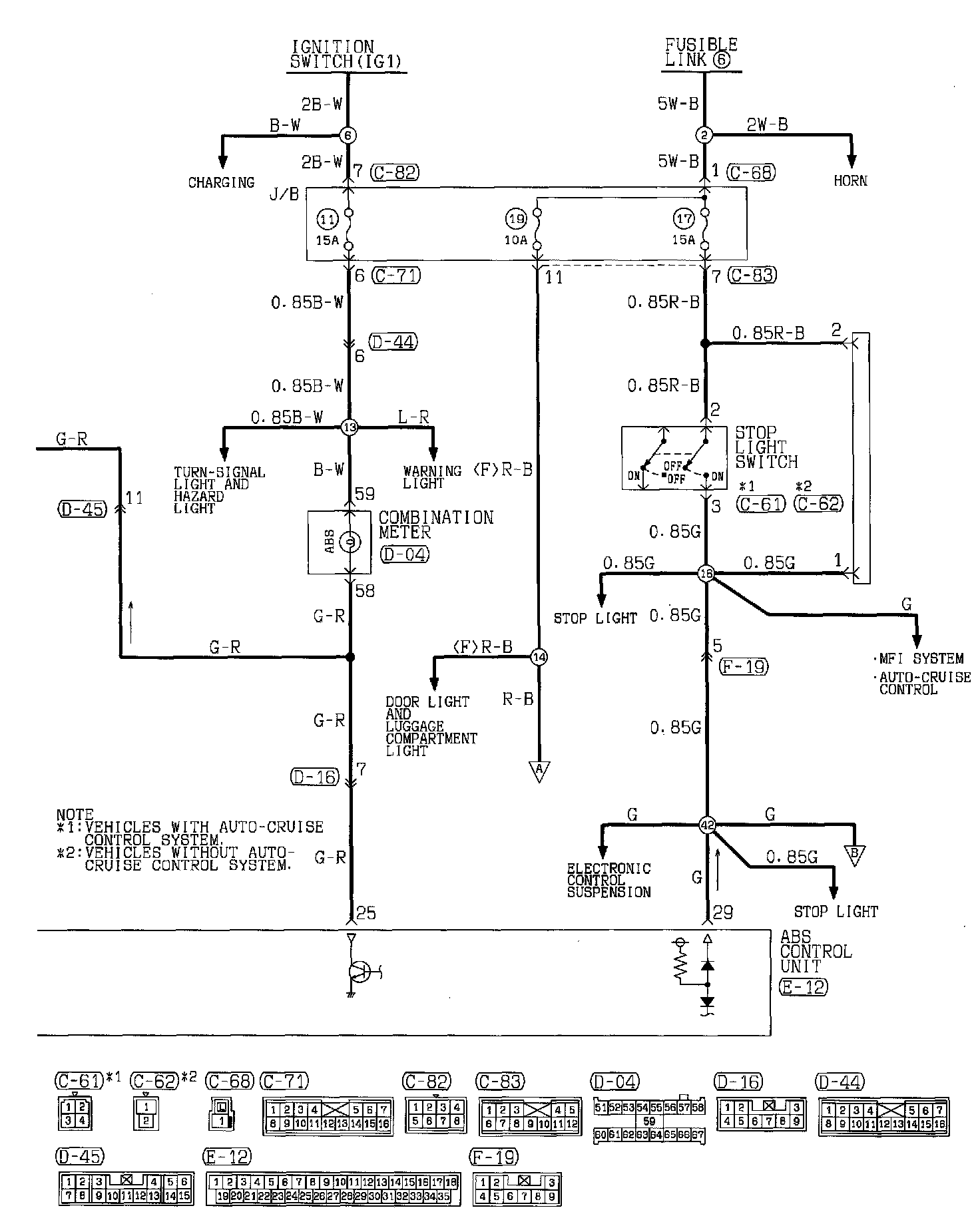

Part 1 Of 3 (Hatchback):

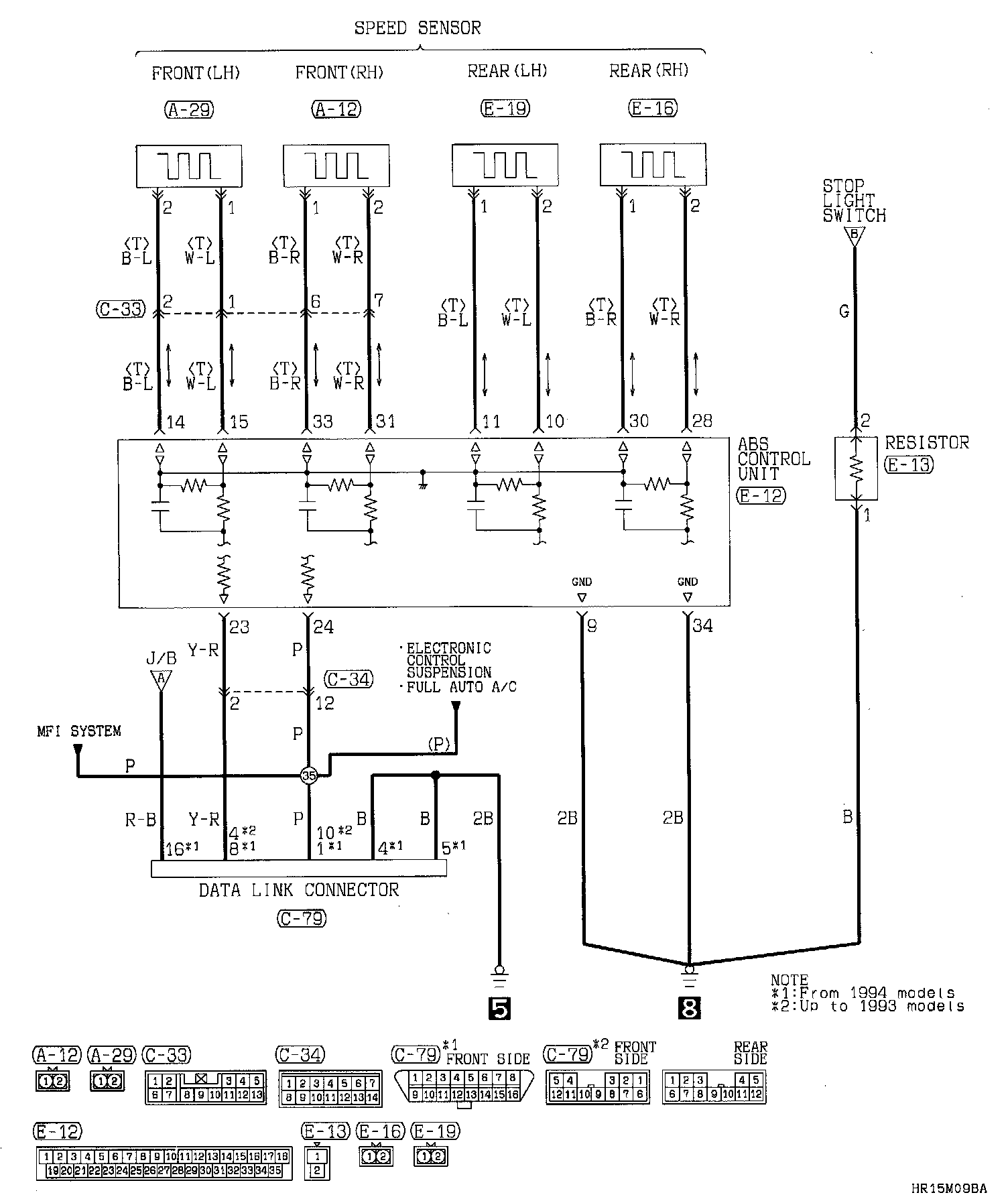

Part 2 Of 3 (Hatchback):



Part 3 Of 3 (Hatchback):
