Home >> Mitsubishi >> 1994 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> Federal

Federal

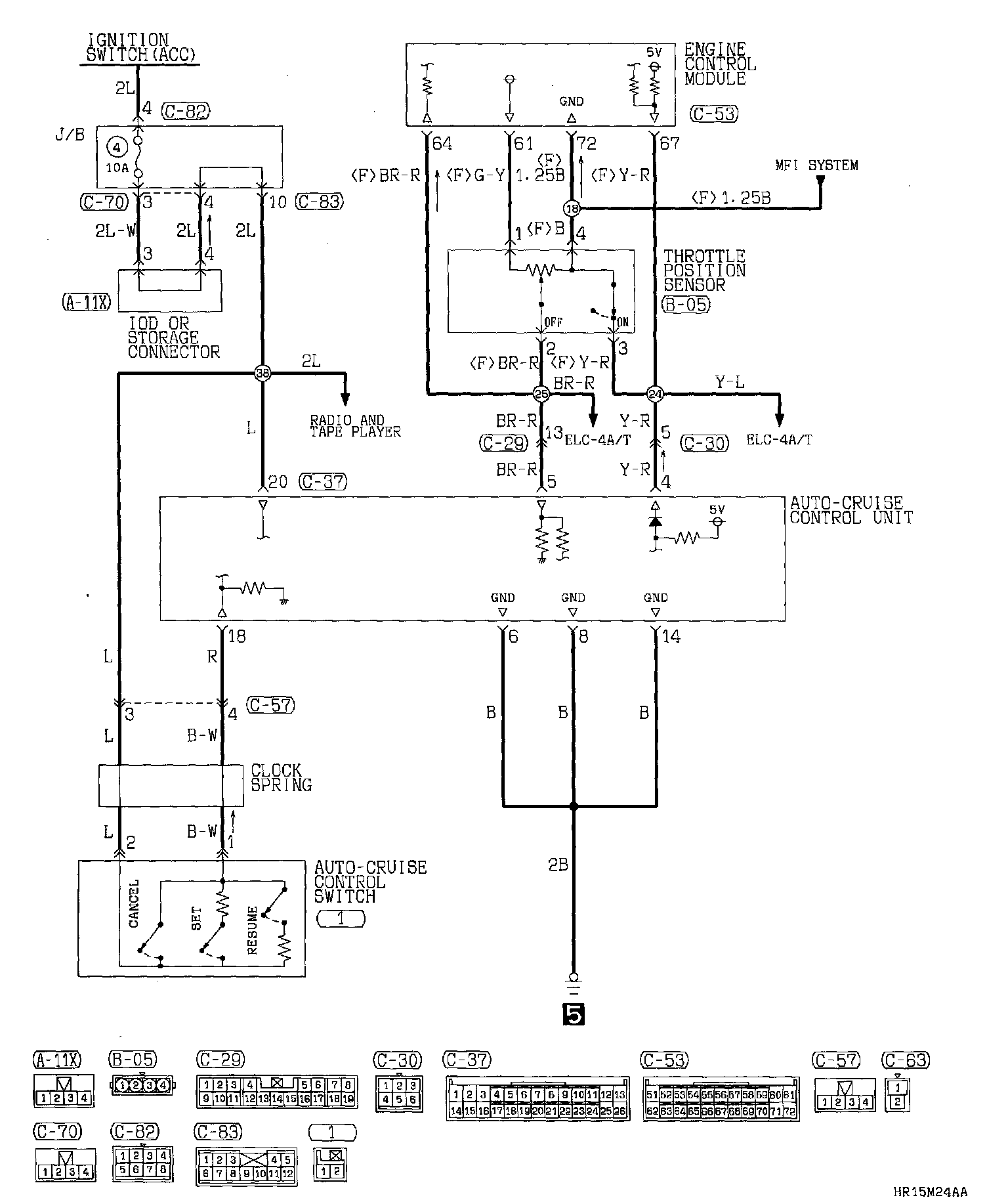

Part 1 Of 4 - A/T:

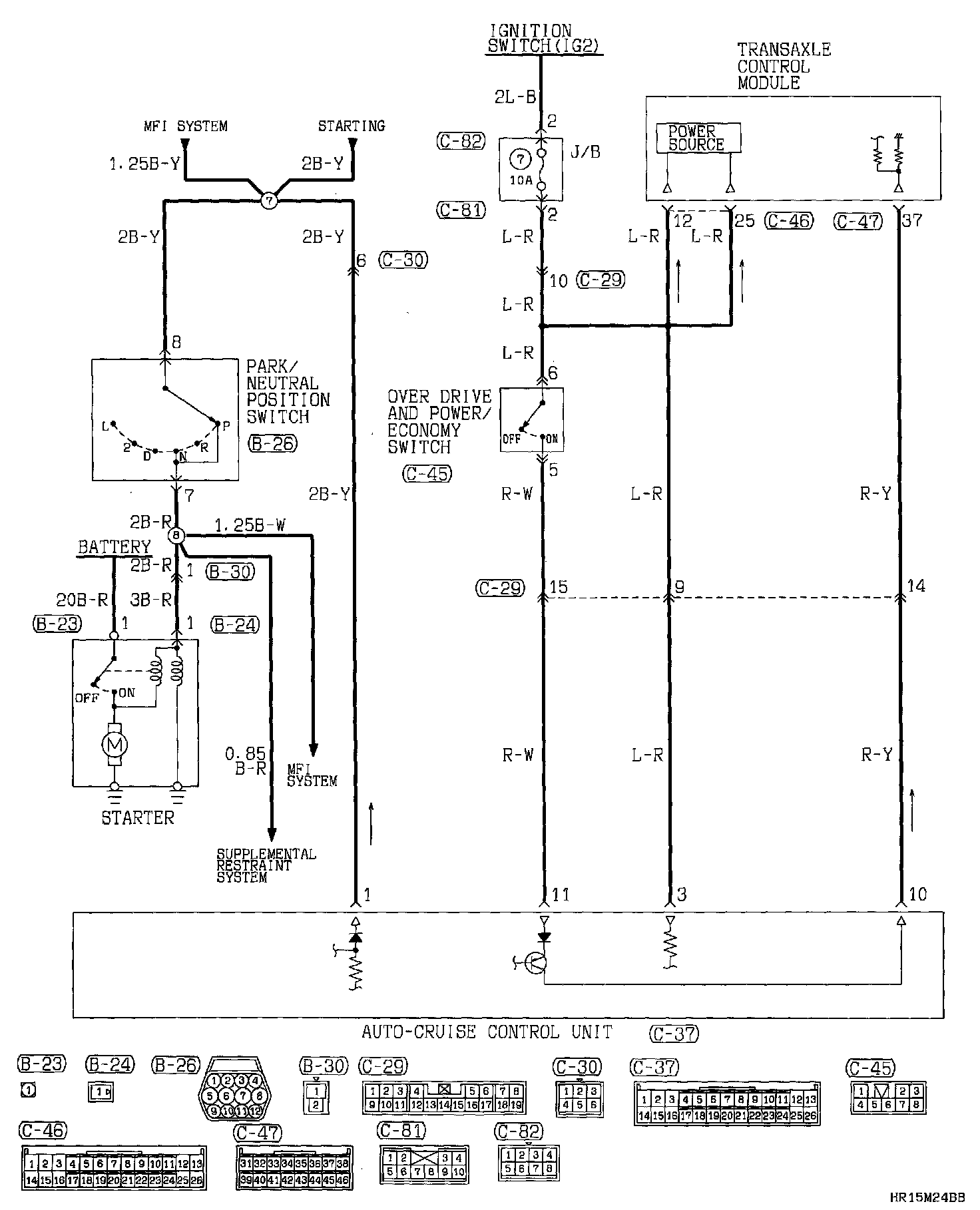

Part 2 Of 4 - A/T:

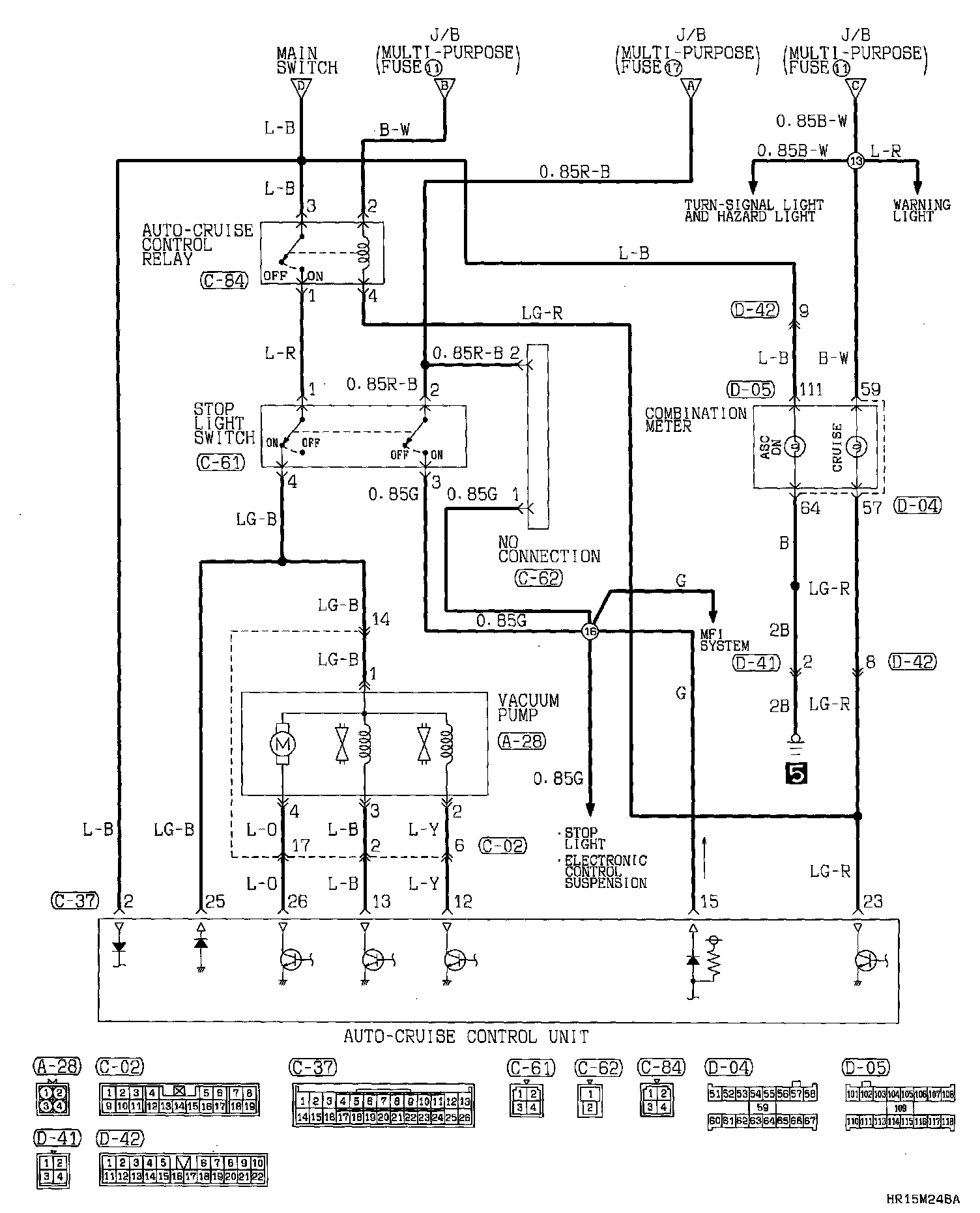

Part 3 Of 4 - A/T:



Part 4 Of 4 - A/T:
