Home >> Mitsubishi >> 1994 >> 3000GT AWD V6-2972cc 3.0L DOHC Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Radio/Stereo >> Without Amplifier

Without Amplifier

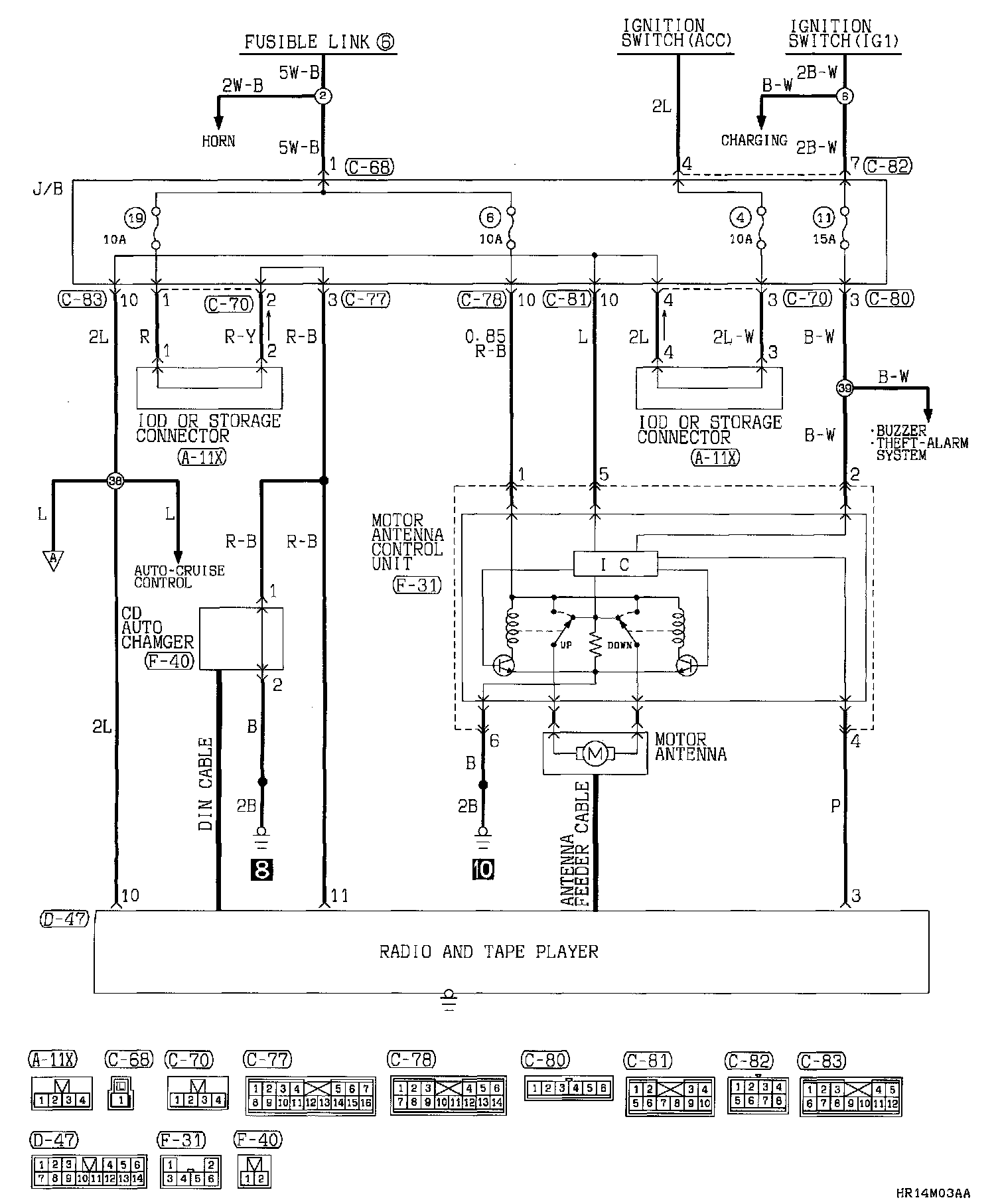

Part 1 Of 3 - (Hatchback):



Part 2 Of 3 - (Hatchback):



Part 3 Of 3 - (Hatchback):
