Suspension
Suspension

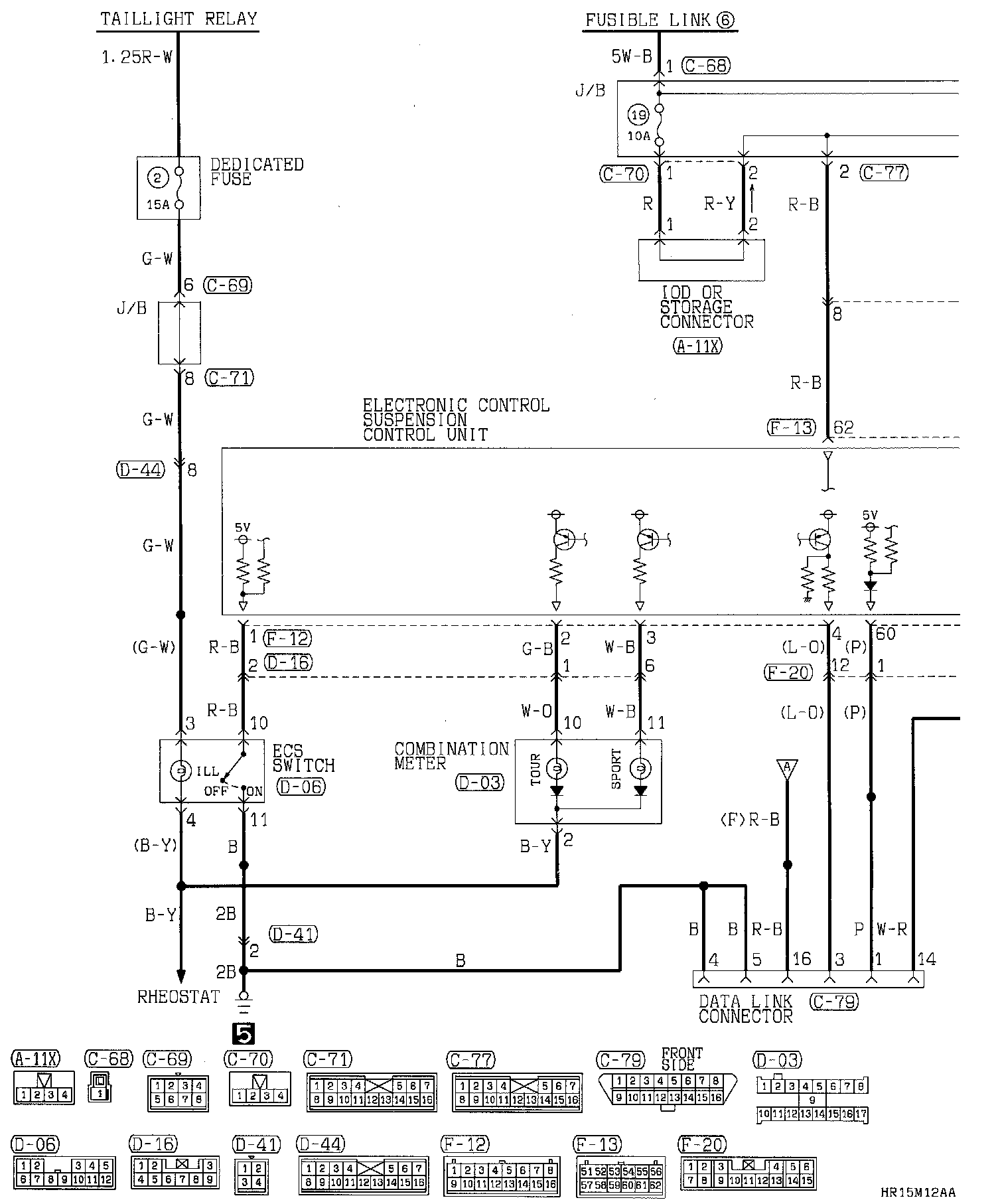

ELECTRONIC CONTROL SUSPENSION (ECS) CIRCUIT - Part 1 Of 3:

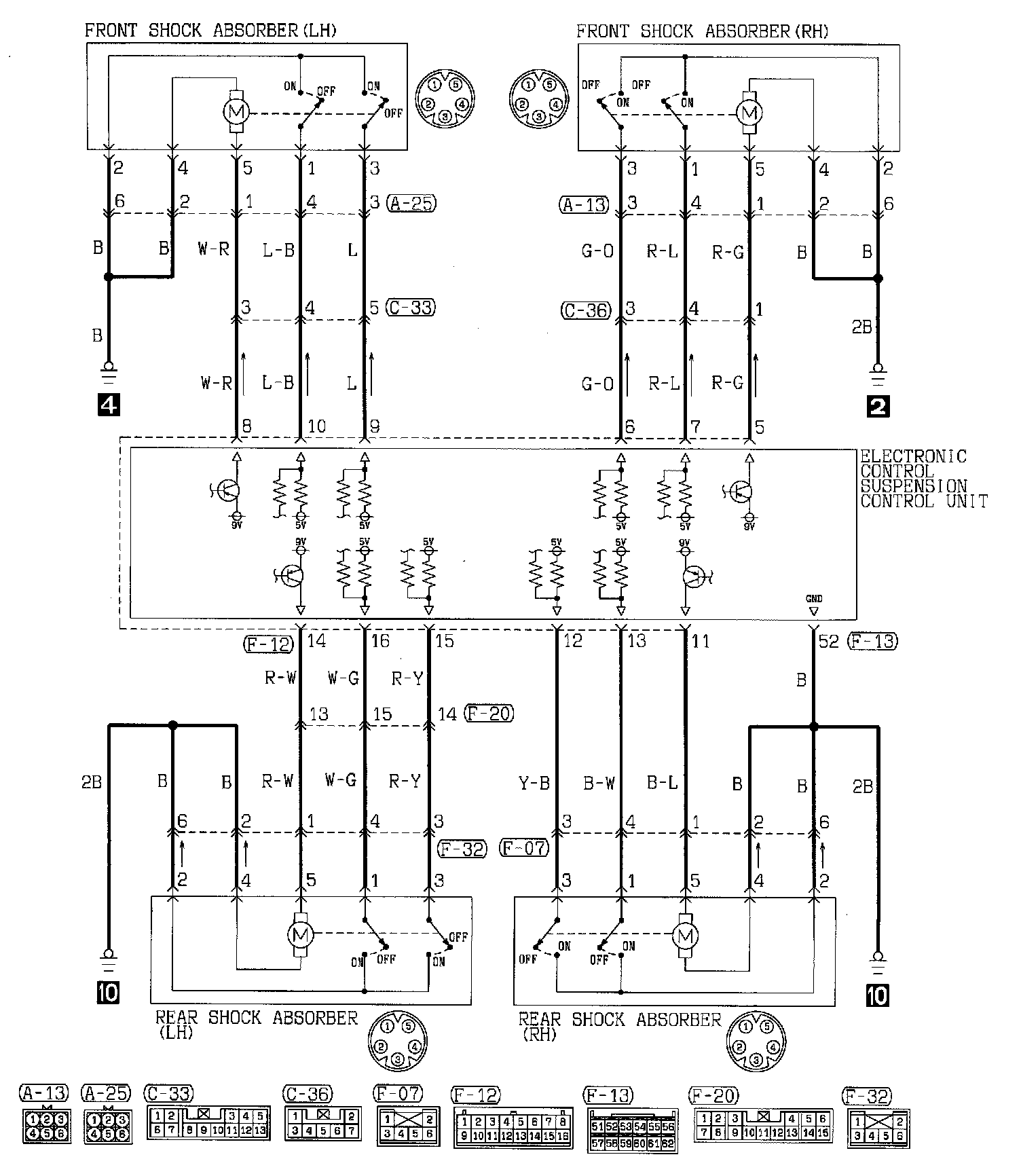

ELECTRONIC CONTROL SUSPENSION (ECS) CIRCUIT - Part 2 Of 3:

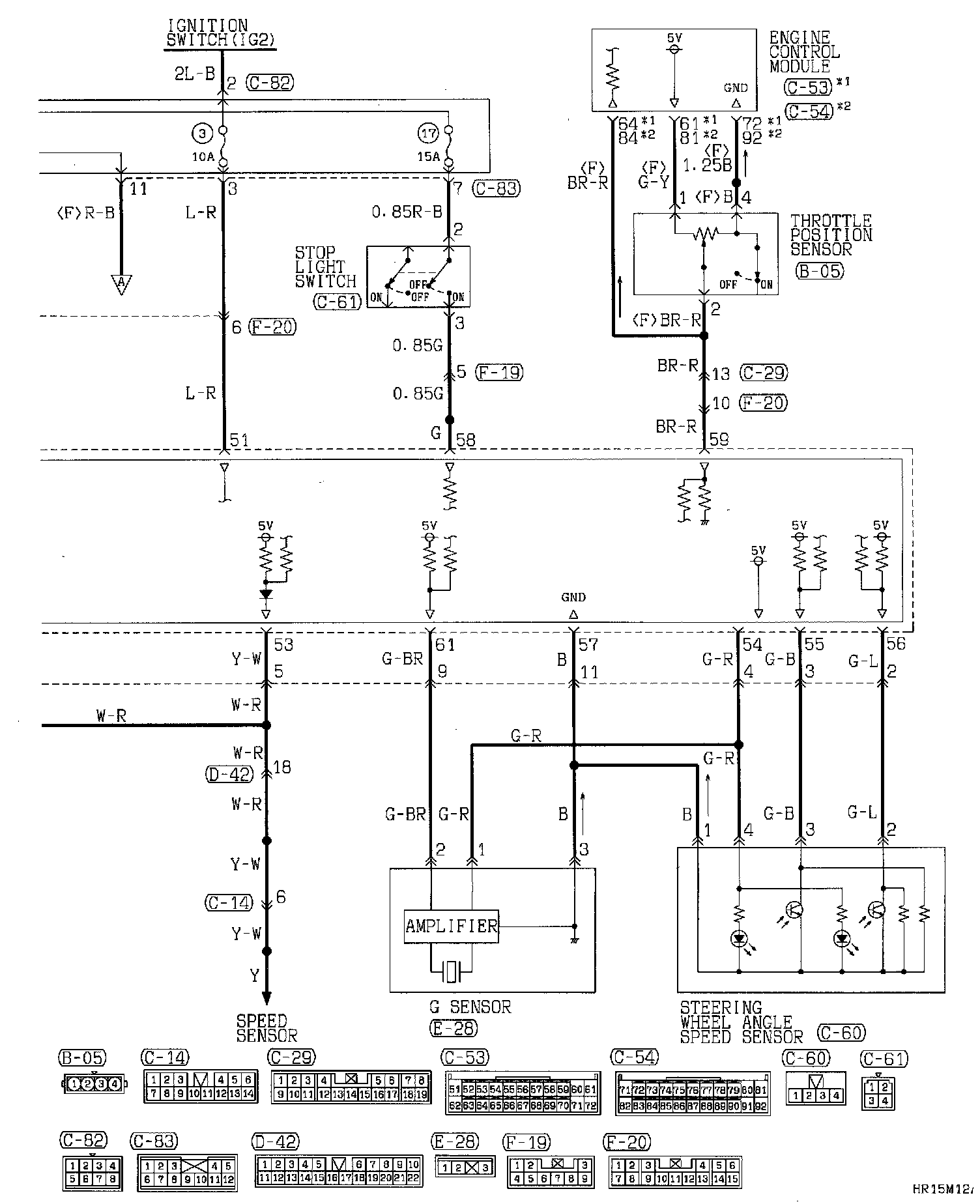

ELECTRONIC CONTROL SUSPENSION (ECS) CIRCUIT - Part 3 Of 3:
